Yamaha E25B / E30H 2002 outboard parts & diagrams – section 17 BRACKET parts diagram

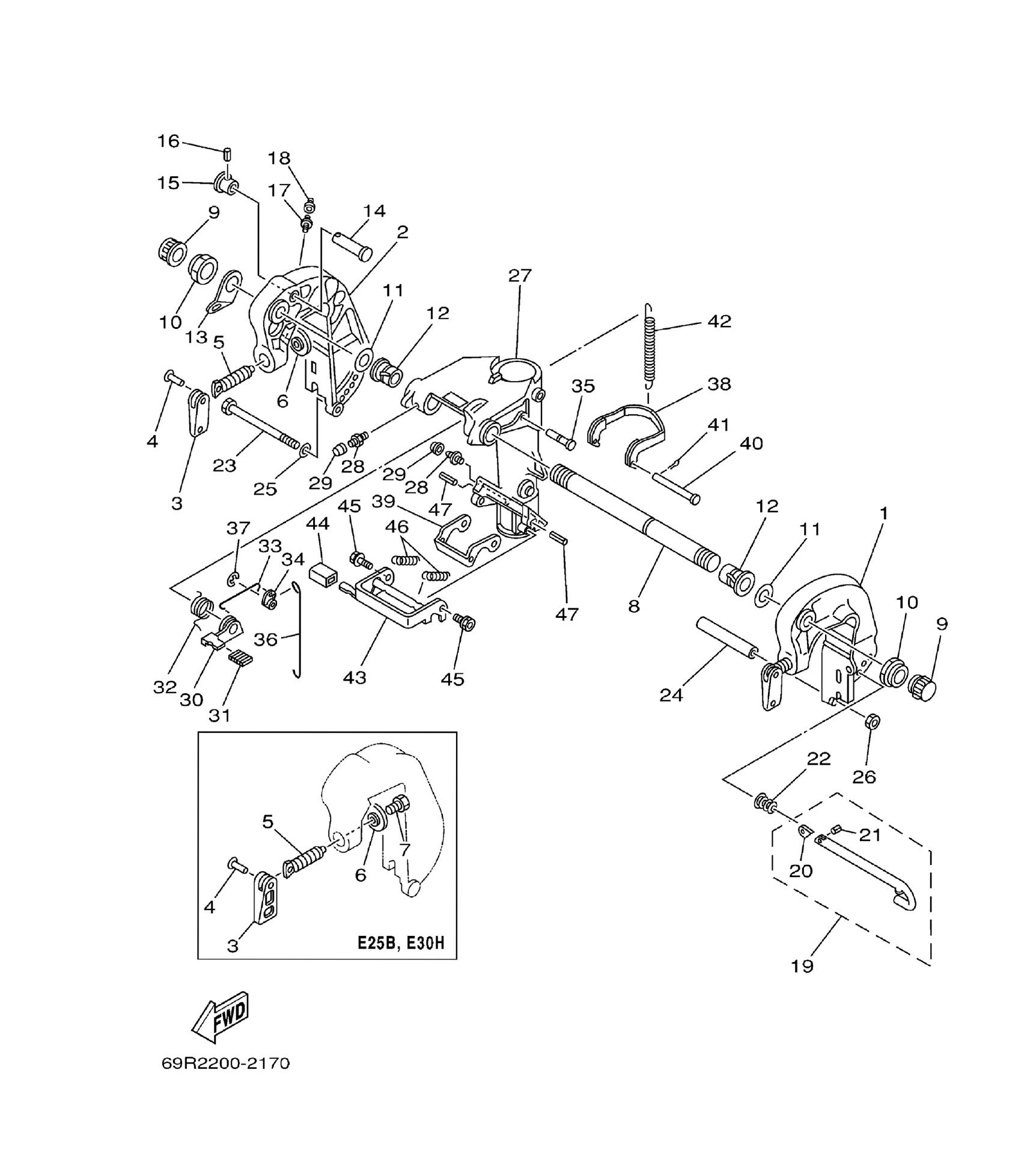

Diagram for section 17: BRACKET.

Ref Part No. Qty Buy
1
689-43111-03-4D
BRACKET, CLAMP
 1 Ask on WhatsApp
1
689-43192-01
KNOB, STOPPER
 1
Price: 8.00 AED
In stock (24 pcs)
2
689-43112-02-4D
BRACKET, CLAMP
 1 Ask on WhatsApp
3
6E0-43118-01
HANDLE, TRANSOM CLAMP 2}
 2 Ask on WhatsApp
3
6G0-43116-00
SCREW, TRANSOM CLAMP
 2 Ask on WhatsApp
6
648-43114-01
PAD, TRANSOM CLAMP 2}
 2
Price: 12.00 AED
In stock (71 pcs)
9
6G5-43145-01
CAP, CLAMP BRACKET 2}
 2 Ask on WhatsApp
14
689-43191-00
SHAFT, STOPPER 1} 1)
 1
Price: 19.00 AED
In stock (39 pcs)
18
663-45119-00
CAP, GREASE NIPPLE
 1 Ask on WhatsApp
20
689-43165-00
PLATE, TILT LOCK
 1 Ask on WhatsApp
27
689-43311-03-4D
BRACKET, SWIVEL
 Ask on WhatsApp
29
663-45119-00
CAP, GREASE NIPPLE
 3 Ask on WhatsApp
30
689-43631-00
LEVER, TILT
 1 Ask on WhatsApp
31
689-43633-00
COVER, TILT LEVER
 1 Ask on WhatsApp
32
689-43643-00
SPRING
 1
Price: 8.94 AED
In stock (5 pcs)
33
689-43616-00
ROD, TILT LOCK
 1 Ask on WhatsApp
34
648-43642-00
LEVER, TILT
 Ask on WhatsApp
36
648-43617-00
ROD, TILT LOCK
 1
Price: 9.68 AED
In stock (10 pcs)
38
689-43614-01
PLATE, TILT LOCK
 1
Price: 99.81 AED
In stock (3 pcs)
39
648-43615-00
PLATE, TILT LOCK
 1
Price: 43.95 AED
In stock (5 pcs)
43
689-43681-01
LEVER, SHALLOW WATER DRIVE
 Ask on WhatsApp
44
682-43318-01
COVER
 1 Ask on WhatsApp
