Yamaha E25B / E30H 2002 outboard parts & diagrams
Section 26: REPAIR KIT
Engine sections in this catalog
TOP COWLING
CYLINDER. CRANKCASE
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL
CONTROL
BRACKET
BRACKET
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT
REPAIR KIT

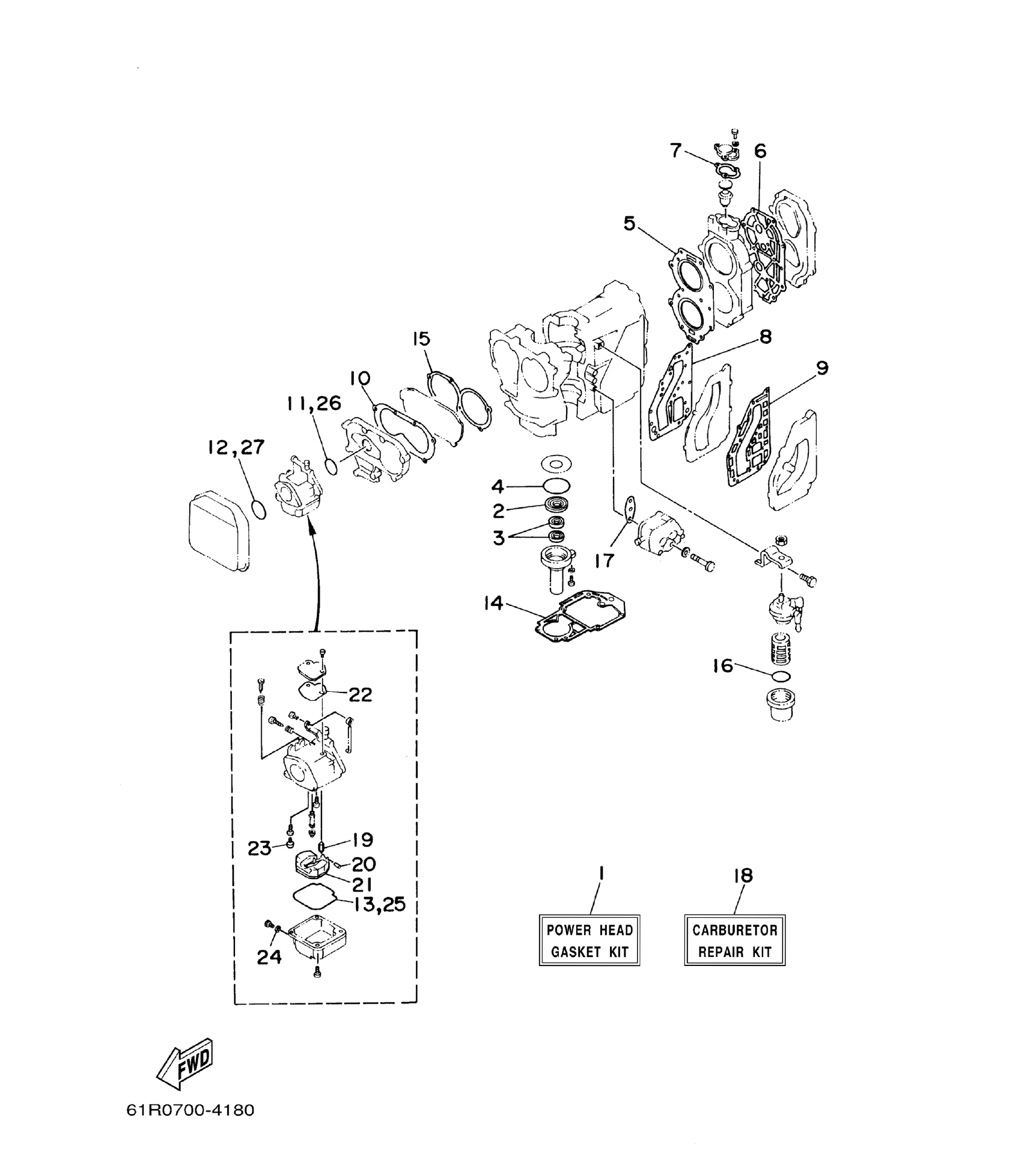

Diagram for section 26: REPAIR KIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
69P-W0001-00
POWER HEAD GASKET KIT
|
1 | Ask on WhatsApp |
| 5 |
61N-11181-A1
GASKET, CYLINDER HEAD
|
Ask on WhatsApp | |
| 6 |
61T-11193-A1
GASKET, HEAD COVER
|
Ask on WhatsApp | |
| 7 |
655-12414-A1
GASKET, COVER
|
1 | Ask on WhatsApp |
| 8 |
6K8-41122-A1
GASKET, EXHAUST INNER COVER
|
1 | Ask on WhatsApp |
| 9 |
6K8-41124-A1
GASKET, EXHAUST OUTER COVER
|
1 | Ask on WhatsApp |
| 10 |
648-13645-A0
GASKET, MANIFOLD
|
Ask on WhatsApp | |
| 11 |
61N-14198-00
GASKET
|
1 | Ask on WhatsApp |
| 13 |
6L2-14384-00
GASKET, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 14 |
689-45113-A1
GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 15 |
648-13621-A1
GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 17 |
650-24431-A0
GASKET, FUEL PUMP
|
Ask on WhatsApp | |
| 18 |
61N-W0093-00
CARBURETOR REPAIR KIT
|
1 | Ask on WhatsApp |
| 19 |
61N-14392-00
VALVE, NEEDLE
|
1 | Ask on WhatsApp |
| 20 |
6E5-14386-01
PIN, FLOAT
|
1 | Ask on WhatsApp |
| 21 |
6L2-14385-00
FLOAT
|
1 | Ask on WhatsApp |
| 22 |
6L2-14399-00
GASKET
|
1 | Ask on WhatsApp |
| 23 |
50M-14355-00
PLUG
|
1 | Ask on WhatsApp |
| 24 |
6L2-14398-00
GASKET
|
1 | Ask on WhatsApp |
| 25 |
6L2-14384-00
GASKET, FLOAT CHAMBER 1/4
|
Ask on WhatsApp | |
| 26 |
GIN-14198-00
GASKET ~°
|
7 | Ask on WhatsApp |
