Yamaha E25B / E30H 2002 outboard parts & diagrams
Section 10: ELECTRICAL 2
Engine sections in this catalog
TOP COWLING
CYLINDER. CRANKCASE
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL
CONTROL
BRACKET
BRACKET
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT
REPAIR KIT

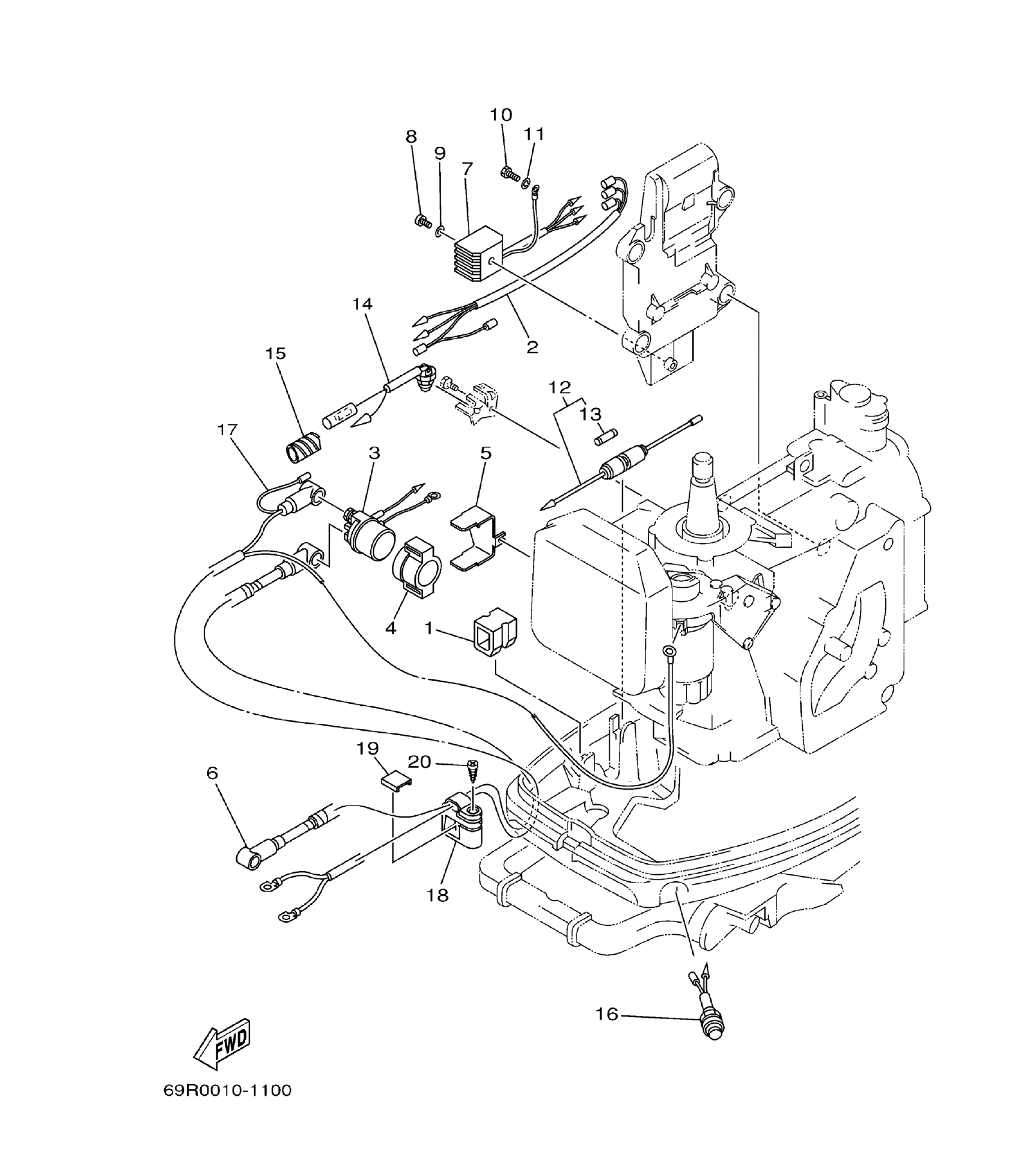

Diagram for section 10: ELECTRICAL 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 3 |
682-82151-00
FUSE (20A)
|
1 | Ask on WhatsApp |
| 3 |
6G1-81941-10
STARTER RELAY ASSY
|
1 | Ask on WhatsApp |
| 4 |
6G1-81952-00
HOLDER, RELAY
|
1 | Ask on WhatsApp |
| 5 |
61T-81945-01
PLATE, SWITCH FITTING
|
1 | Ask on WhatsApp |
| 7 |
664-81970-61
RECTIFIER ASSY
|
1 | Ask on WhatsApp |
| 12 |
682-82150-10
FUSE HOLDER ASSY
|
1 | Ask on WhatsApp |
| 14 |
689-82540-01
NEUTRAL SWITCH ASSY
|
1 | Ask on WhatsApp |
| 16 |
689-81870-00
STARTING SWITCH ASSY
|
1 | Ask on WhatsApp |
| 17 |
689-82105-13
WIRE HARNESS
|
1 | Ask on WhatsApp |
| 18 |
689-82594-00
CLAMP
|
1 | Ask on WhatsApp |
| 19 |
682-42525-00
PLATE, FRICTION
|
1 | Ask on WhatsApp |
