Yamaha E25B / E30H 2002 outboard parts & diagrams

Section 4: INTAKE

Engine sections in this catalog

TOP COWLING CYLINDER. CRANKCASE CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING STEERING CONTROL CONTROL BRACKET BRACKET UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY REPAIR KIT REPAIR KIT

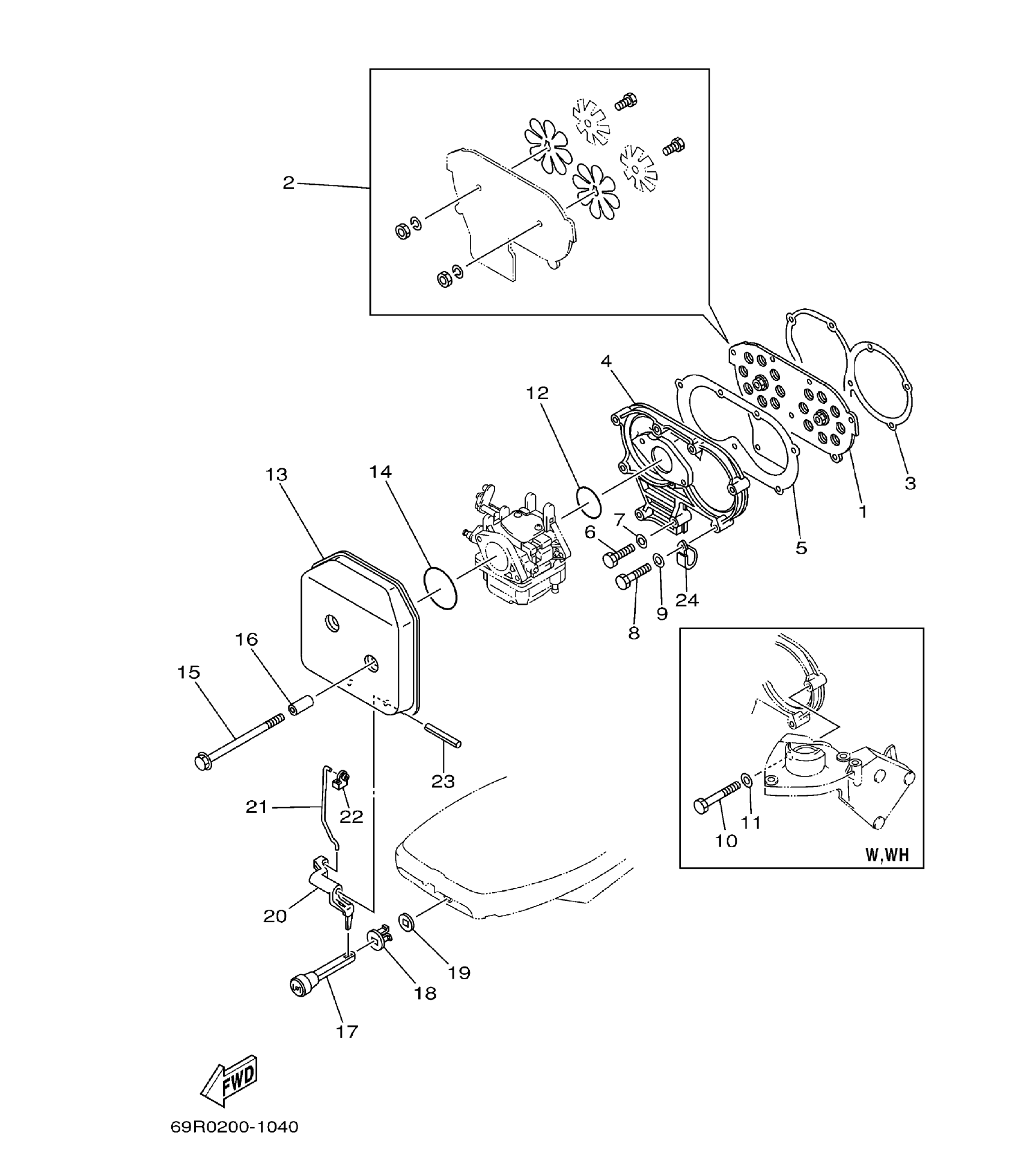

Diagram for section 4: INTAKE.

Ref	Part No.	Description	Qty	Buy
1	61N-13610-00 REED VALVE ASSY	REED VALVE ASSY	1	Ask on WhatsApp
2	61N-13641-01-1S MANIFOLD	MANIFOLD	1	Ask on WhatsApp
2	61N-14198-00 GASKET	GASKET		Ask on WhatsApp
2	61N-14440-00 SILENCER ASSY, INTAKE	SILENCER ASSY, INTAKE		Ask on WhatsApp
2	61N-41256-00 ROD, CHOKE	ROD, CHOKE	1	Ask on WhatsApp
2	689-W0004-00 REED SET 1} 1)	REED SET 1} 1)	1	Ask on WhatsApp
2	6J8-41274-00 GROMMET	GROMMET	2	Ask on WhatsApp
69	661-41262-02 JOINT, CHOKE LEVER	JOINT, CHOKE LEVER		Price: 17.00 AED In stock (82 pcs)
