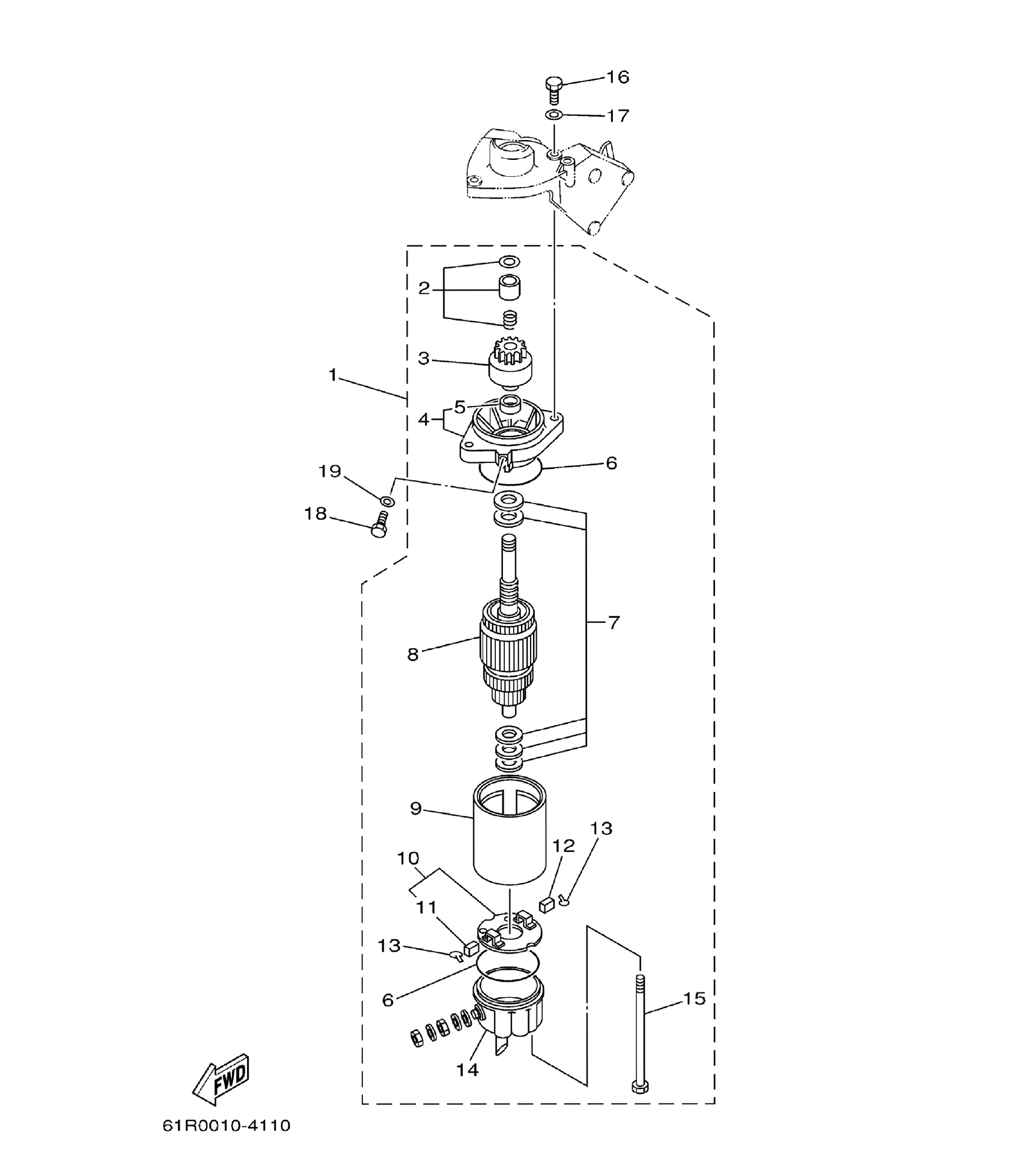

Diagram for section 12: STARTING MOTOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
689-81800-13
STARTING MOTOR ASSY
|
Ask on WhatsApp | |
| 2 |
689-81857-11
PINION STOPPER SET
|
Price:
30.00 AED
In stock
(12 pcs)
|
|
| 3 |
689-81807-12
¿GEAR ASSY, STARTING MOTOR
|
Price:
332.22 AED
In stock
(1 pcs)
|
|
| 4 |
689-81830-11
FRONT BRACKET ASSY
|
Ask on WhatsApp | |
| 5 |
689-81831-00
METAL, FRONT
|
Ask on WhatsApp | |
| 6 |
689-81847-11
O-RING
|
Ask on WhatsApp | |
| 7 |
689-81809-11
WASHER KIT
|
Ask on WhatsApp | |
| 8 |
689-81850-12
ARMATURE ASSY
|
Ask on WhatsApp | |
| 9 |
689-81810-11
STATOR ASSY
|
Ask on WhatsApp | |
| 10 |
689-81840-11
BRUSH HOLDER ASSY
|
1 |
Price:
116.95 AED
In stock
(1 pcs)
|
| 11 |
689-81812-11
BRUSH
|
2 | Ask on WhatsApp |
| 12 |
689-81811-11
BRUSH
|
1 |
Price:
33.00 AED
In stock
(2 pcs)
|
| 13 |
689-81813-10
SPRING, BRUSH
|
2 | Ask on WhatsApp |
| 14 |
689-81820-11
REAR BRACKET ASSY 1/1
|
Ask on WhatsApp | |
| 15 |
689-81826-10
BOLT
|
2 | Ask on WhatsApp |
