Yamaha E25B / E30H 2002 outboard parts & diagrams

Section 14: STEERING

Engine sections in this catalog

TOP COWLING CYLINDER. CRANKCASE CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING STEERING CONTROL CONTROL BRACKET BRACKET UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY REPAIR KIT REPAIR KIT

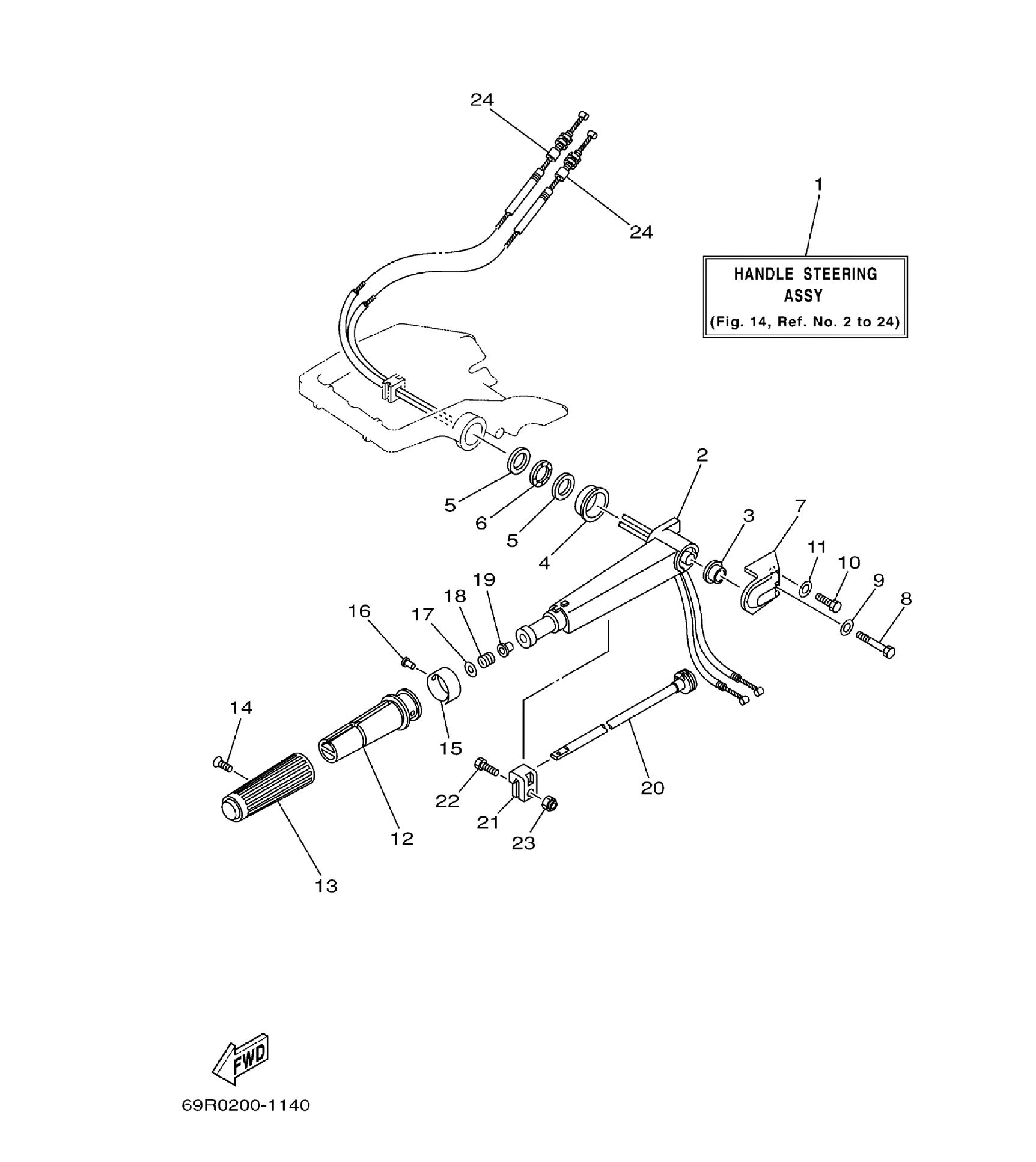

Diagram for section 14: STEERING.

Ref	Part No.	Description	Qty	Buy
1	69P-W0084-00-4D HANDLE STEERING ASSY	HANDLE STEERING ASSY	1	Ask on WhatsApp
2	689-42111-01-4D HANDLE, STEERING	HANDLE, STEERING	1	Ask on WhatsApp
7	69P-42112-00-4D HANDLE, STEERING	HANDLE, STEERING	1	Ask on WhatsApp
12	664-42119-00 GRIP, STEERING HANDLE	GRIP, STEERING HANDLE	1	Price: 45.00 AED In stock (64 pcs)
13	6F6-42177-A0 RUBBER, HANDLE	RUBBER, HANDLE	1	Ask on WhatsApp
15	6G1-42137-10 INDICATOR, THROTTLE	INDICATOR, THROTTLE	1	Ask on WhatsApp
20	689-42138-00 LEVER, THROTTLE	LEVER, THROTTLE	1	Price: 32.00 AED In stock (35 pcs)
21	656-42126-01 FRICTION, STEERING HANDLE GRIP	FRICTION, STEERING HANDLE GRIP	1	Ask on WhatsApp
24	61N-26311-00 CABLE, THROTTLE1	CABLE, THROTTLE1	2	Ask on WhatsApp
