Yamaha E25B / E30H 2002 outboard parts & diagrams

Section 6: FUEL

Engine sections in this catalog

TOP COWLING CYLINDER. CRANKCASE CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING STEERING CONTROL CONTROL BRACKET BRACKET UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY REPAIR KIT REPAIR KIT

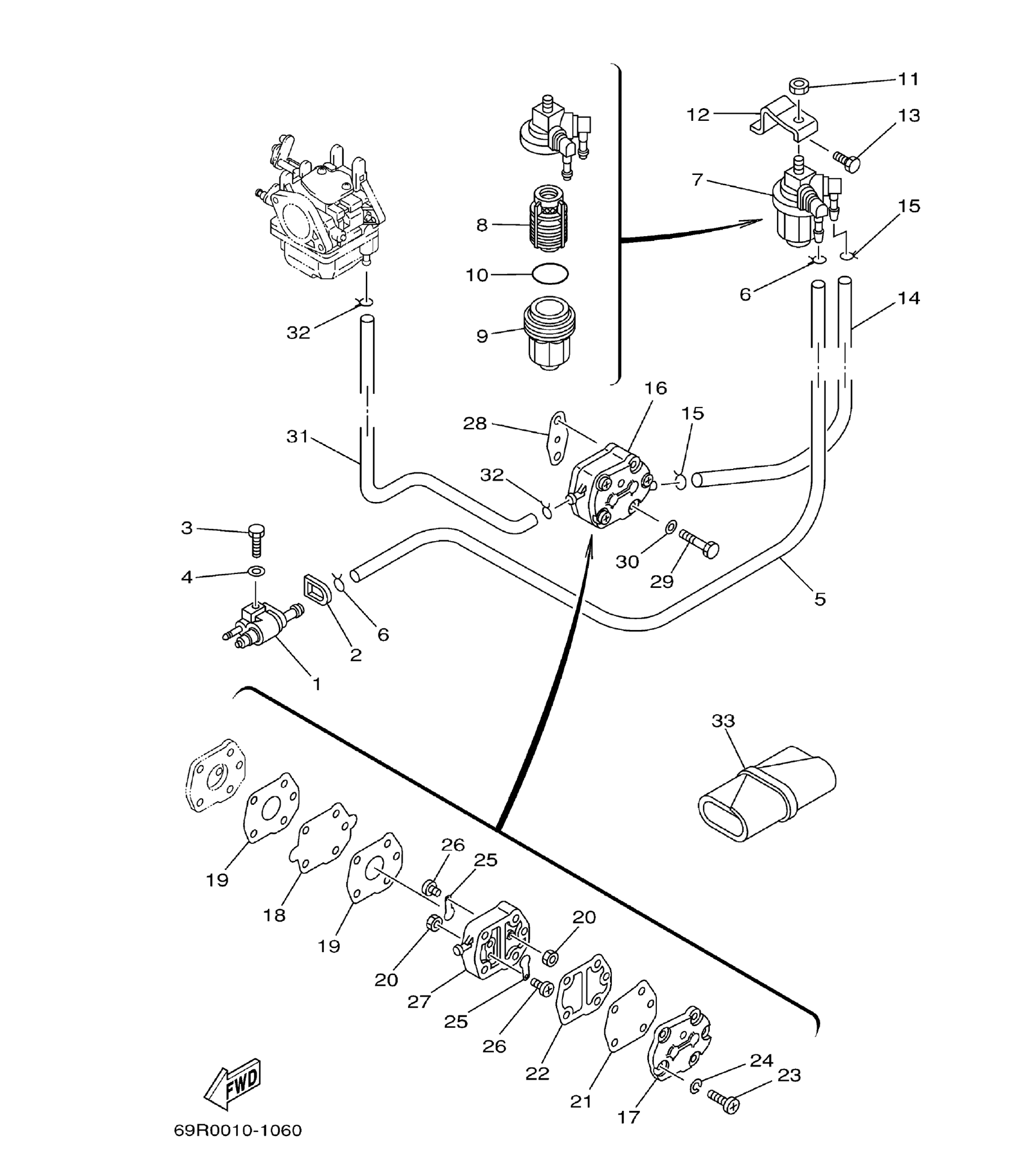

Diagram for section 6: FUEL.

Ref	Part No.	Description	Qty	Buy
1	6G1-24304-02 FUEL PIPE JOINT COMP	FUEL PIPE JOINT COMP	1	Ask on WhatsApp
2	61N-24329-00 SEAL	SEAL	1	Ask on WhatsApp
2	650-24431-A0 GASKET, FUEL PUMP	GASKET, FUEL PUMP		Ask on WhatsApp
7	61N-24560-00 FILTER ASSY	FILTER ASSY	1	Ask on WhatsApp
7	61N-24563-00 ELEMENT, FILTER	ELEMENT, FILTER		Ask on WhatsApp
7	61N-24566-01 BRACKET, FILTER	BRACKET, FILTER		Ask on WhatsApp
7	648-24434-01 GASKET, BODY	GASKET, BODY		Price: 10.00 AED In stock (32 pcs)
31	6A1-24311-00 PIPE, FUEL	PIPE, FUEL		Ask on WhatsApp
33	656-W2810-02 TOOL KIT 1) 1)	TOOL KIT 1) 1)	1	Ask on WhatsApp
69	6A0-24421-01 VALVE, CHECK	VALVE, CHECK		Ask on WhatsApp
