Yamaha E25B / E30H 2002 outboard parts & diagrams

Section 24: REMOTE CONTROL BOX

Engine sections in this catalog
TOP COWLING CYLINDER. CRANKCASE CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING STEERING CONTROL CONTROL BRACKET BRACKET UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY REPAIR KIT REPAIR KIT

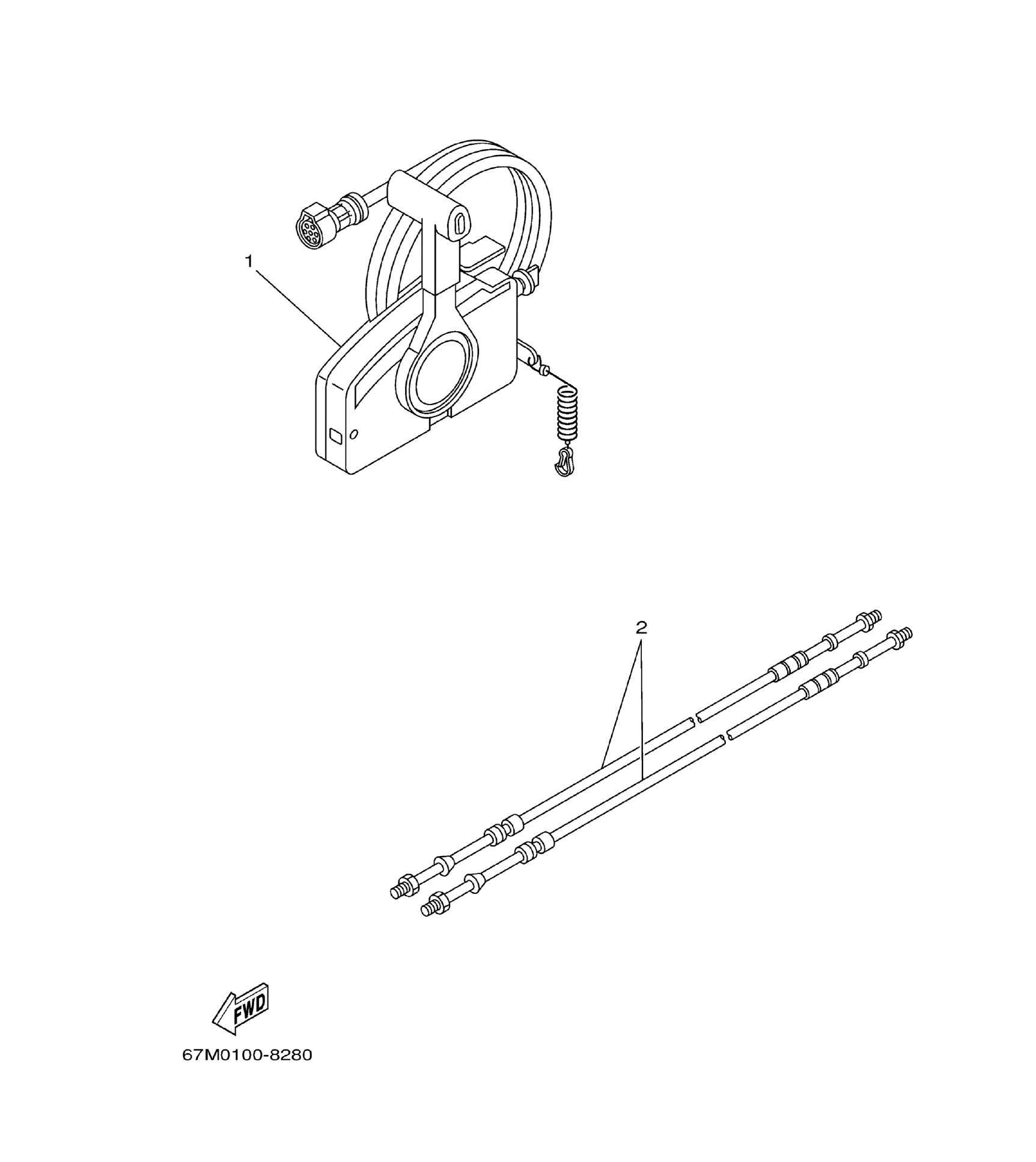

Yamaha E25B / E30H 2002 outboard parts & diagrams – section 24 REMOTE CONTROL BOX parts diagram

Diagram for section 24: REMOTE CONTROL BOX.

Ref Part No. Qty Buy
1
703-48230-15
REMOTE CONTROL ASSY
 1 Ask on WhatsApp
2
701-48320-20
CABLE, REMOTE CONTROL L=13F
 2 Ask on WhatsApp
2
701-48320-50
CABLE, REMOTE CONTROL L=15F
 2 Ask on WhatsApp
