Yamaha E25B / E30H 2002 outboard parts & diagrams
Section 25: REMOTE CONTROL ASSY
Engine sections in this catalog
TOP COWLING
CYLINDER. CRANKCASE
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL
CONTROL
BRACKET
BRACKET
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT
REPAIR KIT

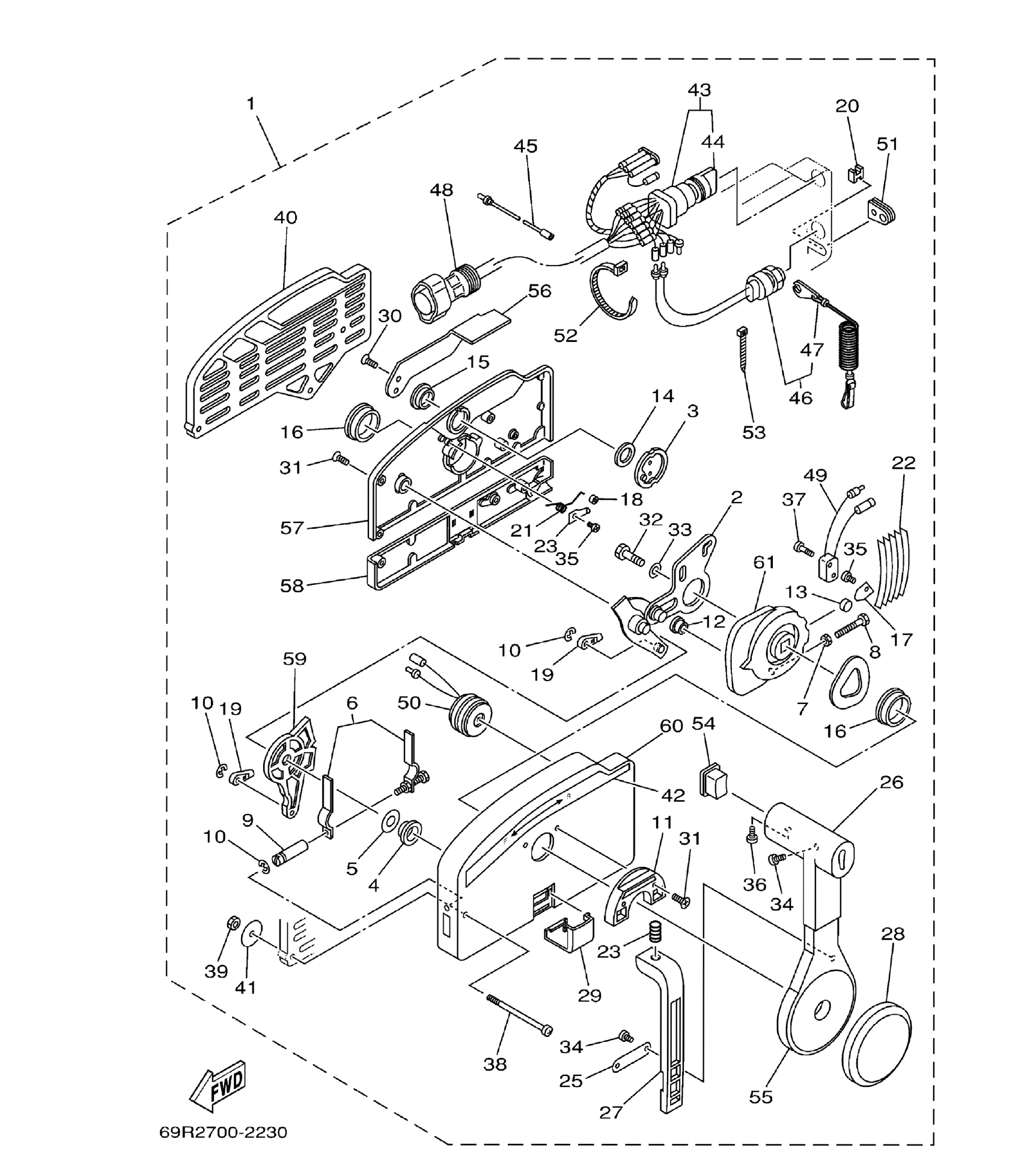

Diagram for section 25: REMOTE CONTROL ASSY.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 28 |
703-48225-00
COVER
|
1 |
Price:
16.00 AED
In stock
(8 pcs)
|
| 29 |
703-48219-00
COVER, LEAD
|
1 |
Price:
17.13 AED
In stock
(1 pcs)
|
| 38 |
703-48291-10
SCREW (M6)
|
3 | Ask on WhatsApp |
| 40 |
703-48293-10
SPACER, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 41 |
701-48287-00
WASHER
|
3 | Ask on WhatsApp |
| 42 |
703-48215-00
¿GRAPHIC
|
1 | Ask on WhatsApp |
| 43 |
703-82510-33
— MAIN SWITCH ASSY
|
1 | Ask on WhatsApp |
| 44 |
703-82577-00
CAP KEY
|
1 |
Price:
14.15 AED
In stock
(1 pcs)
|
| 45 |
703-82531-00
WIRE, LEAD
|
1 | Ask on WhatsApp |
| 46 |
688-82575-01
ENGINE STOP SWITCH ASSY
|
1 | Ask on WhatsApp |
| 47 |
682-82556-00
S TOPPER
|
1 |
Price:
51.00 AED
In stock
(81 pcs)
|
| 48 |
688-82586-21
EXTENSION
|
Ask on WhatsApp | |
| 49 |
703-82540-00
NEUTRAL SWITCH ASSY
|
1 |
Price:
54.00 AED
In stock
(12 pcs)
|
| 50 |
703-83383-02
BUZZER
|
1 | Ask on WhatsApp |
| 51 |
703-48284-00
GROMMET
|
1 | Ask on WhatsApp |
| 53 |
703-82592-00
BAND
|
2 | Ask on WhatsApp |
| 54 |
703-48224-00
COVER, CONTROL LEVER
|
1 | Ask on WhatsApp |
| 55 |
703-48221-00
LEVER, CONTROL
|
Ask on WhatsApp | |
| 57 |
703-48212-00
-BACK PLATE
|
1 | Ask on WhatsApp |
| 58 |
703-48213-00
-BACK PLATE
|
2 | Ask on WhatsApp |
