Yamaha E25B / E30H 2002 outboard parts & diagrams

Section 21: LOWER CASING. DRIVE 2

Engine sections in this catalog
TOP COWLING CYLINDER. CRANKCASE CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING STEERING CONTROL CONTROL BRACKET BRACKET UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY REPAIR KIT REPAIR KIT

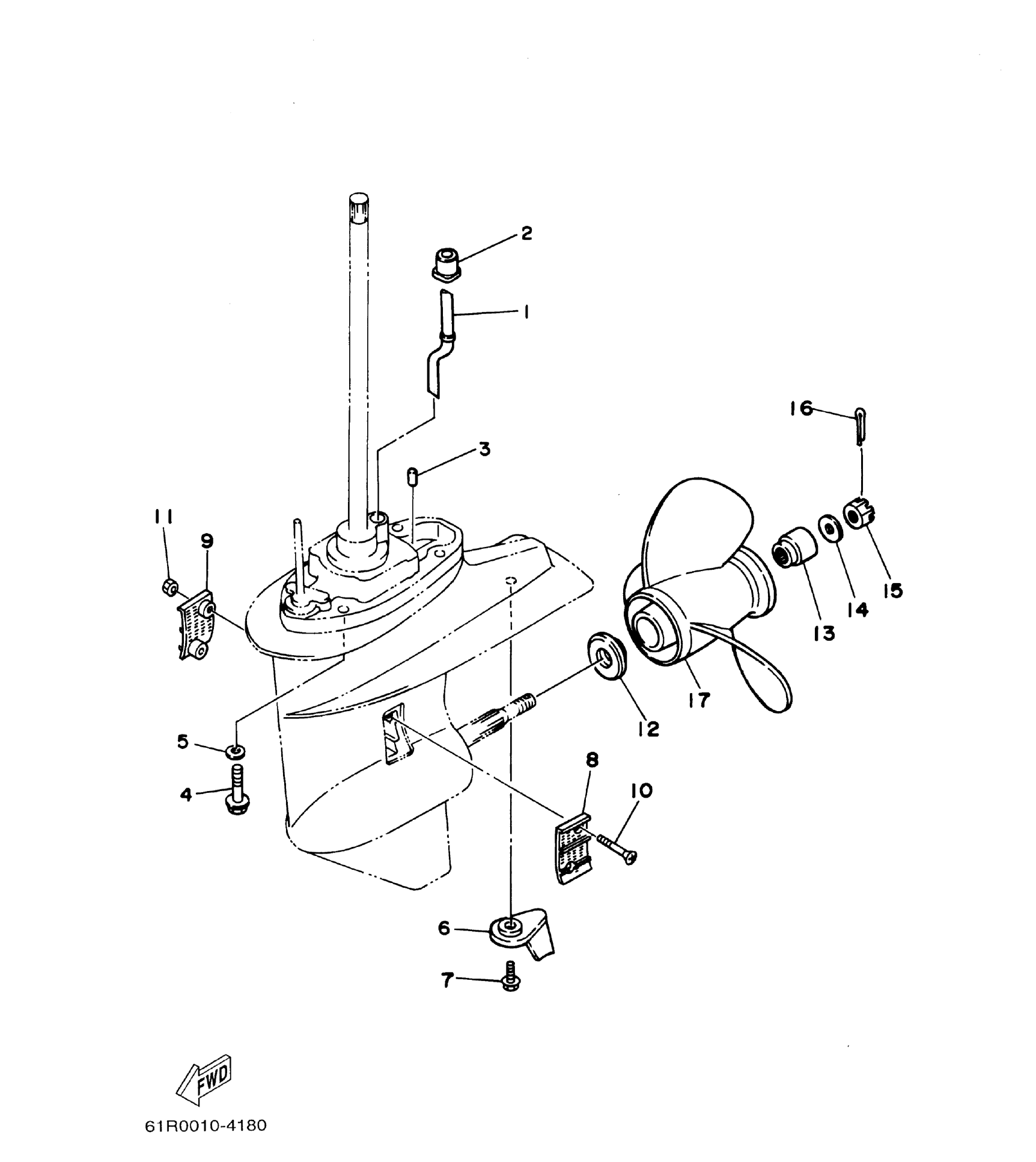

Yamaha E25B / E30H 2002 outboard parts & diagrams – section 21 LOWER CASING. DRIVE 2 parts diagram

Diagram for section 21: LOWER CASING. DRIVE 2.

Ref Part No. Qty Buy
1
61N-44361-00
TUBE, WATER
 1 Ask on WhatsApp
1
61N-44361-10
TUBE, WATER
 1 Ask on WhatsApp
1
61N-44361-30
TUBE, WATER
 1 Ask on WhatsApp
2
689-44366-00
DAMPER, WATER SEAL
 Ask on WhatsApp
6
61N-45871-00
TAB-TRIM
 1 Ask on WhatsApp
8
6L2-45214-00
COVER, WATER INLET 1] 4]
 1 Ask on WhatsApp
9
6L2-45215-00
COVER, WATER INLET
 1 Ask on WhatsApp
12
6L2-45987-01
SPACER
 1 Ask on WhatsApp
13
689-45997-00
SPACER 1] 4]
 4
Price: 34.00 AED
In stock (25 pcs)
17
664-45941-01-EL
PROPELLER (3X9-7/8"X9”-F) 1] 4]
 4 Ask on WhatsApp
17
664-45945-00-EL
PROPELLER (3X9-7/8"X10-1/2”-F) 1) 1]
 1 Ask on WhatsApp
17
664-45947-01-EL
PROPELLER (3X9-7/8"X11—1/4’-F) 1] 4]
 1 Ask on WhatsApp
17
664-45952-00-EL
PROPELLER (3X9-7/8"X14"-F) 1] 4]
 4 Ask on WhatsApp
61
664-45954-01-EL
PROPELLER (3X9-7/8"X12"-F) 1] 4]
 4 Ask on WhatsApp
