Yamaha E25B / E30H 2002 outboard parts & diagrams – section 2 CYLINDER. CRANKCASE parts diagram

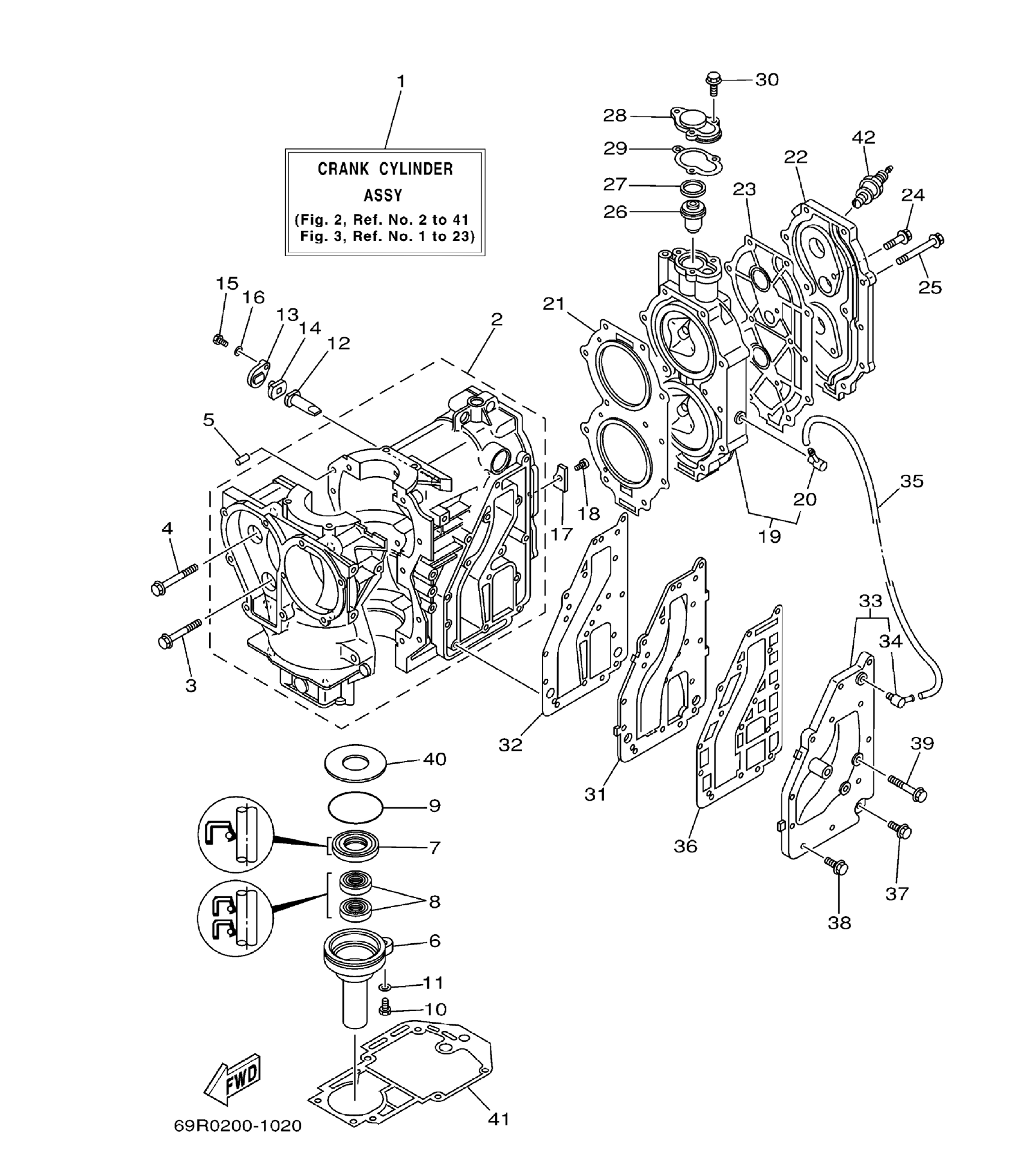

Diagram for section 2: CYLINDER. CRANKCASE.

Ref Part No. Qty Buy
1
695-W0090-00-1S
CRANK CYLINDER ASSY
 Ask on WhatsApp
1
69P-15100-00-1S
-
 Ask on WhatsApp
1
69P-W0090-00-1S
CRANK CYLINDER ASSY
 1 Ask on WhatsApp
6
689-15396-01-5B
HOUSING, OIL SEAL 1} 1)
 1 Ask on WhatsApp
12
6J8-11325-00
ANODE 1} 1)
 1 Ask on WhatsApp
13
6H3-11327-00-1S
COVER, ANODE
 1 Ask on WhatsApp
14
6H3-11328-00
GROMMET, ANODE
 1 Ask on WhatsApp
17
689-11325-00
ANODE 1} 1)
 1 Ask on WhatsApp
19
61N-11111-01-1S
HEAD, CYLINDER
 Ask on WhatsApp
19
61T-11111-01-1S
HEAD, CYLINDER1 1; 1]
 1 Ask on WhatsApp
20
676-11372-00
NIPPLE, HOSE 1} 1)
 1
Price: 19.00 AED
In stock (1 pcs)
22
61N-11191-01-1S
COVER, CYLINDER HEAD
 Ask on WhatsApp
26
655-12413-01-18
-
 Ask on WhatsApp
26
6E5-12411-01
THERMOSTAT
 1 Ask on WhatsApp
29
655-12414-00
GASKET, COVER
 1 Ask on WhatsApp
31
6K8-41121-00-1S
INNER COVER,EXHAUST
 1 Ask on WhatsApp
32
6K8-41122-A1
GASKET, EXHAUST INNER COVER
 1 Ask on WhatsApp
33
61N-41123-00-1S
OUTER COVER, EXHAUST
 1 Ask on WhatsApp
34
676-11372-00
NIPPLE, HOSE
 1
Price: 19.00 AED
In stock (1 pcs)
36
6K8-41124-A1
GASKET, EXHAUST OUTER COVER
 1 Ask on WhatsApp
41
689-45113-A1
GASKET, UPPER CASING
 1 Ask on WhatsApp
69
61N-11193-02
GASKET, HEAD COVER
 Ask on WhatsApp
