Yamaha E25B / E30H 2002 outboard parts & diagrams
Section 5: CARBURETOR
Engine sections in this catalog
TOP COWLING
CYLINDER. CRANKCASE
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL
CONTROL
BRACKET
BRACKET
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT
REPAIR KIT

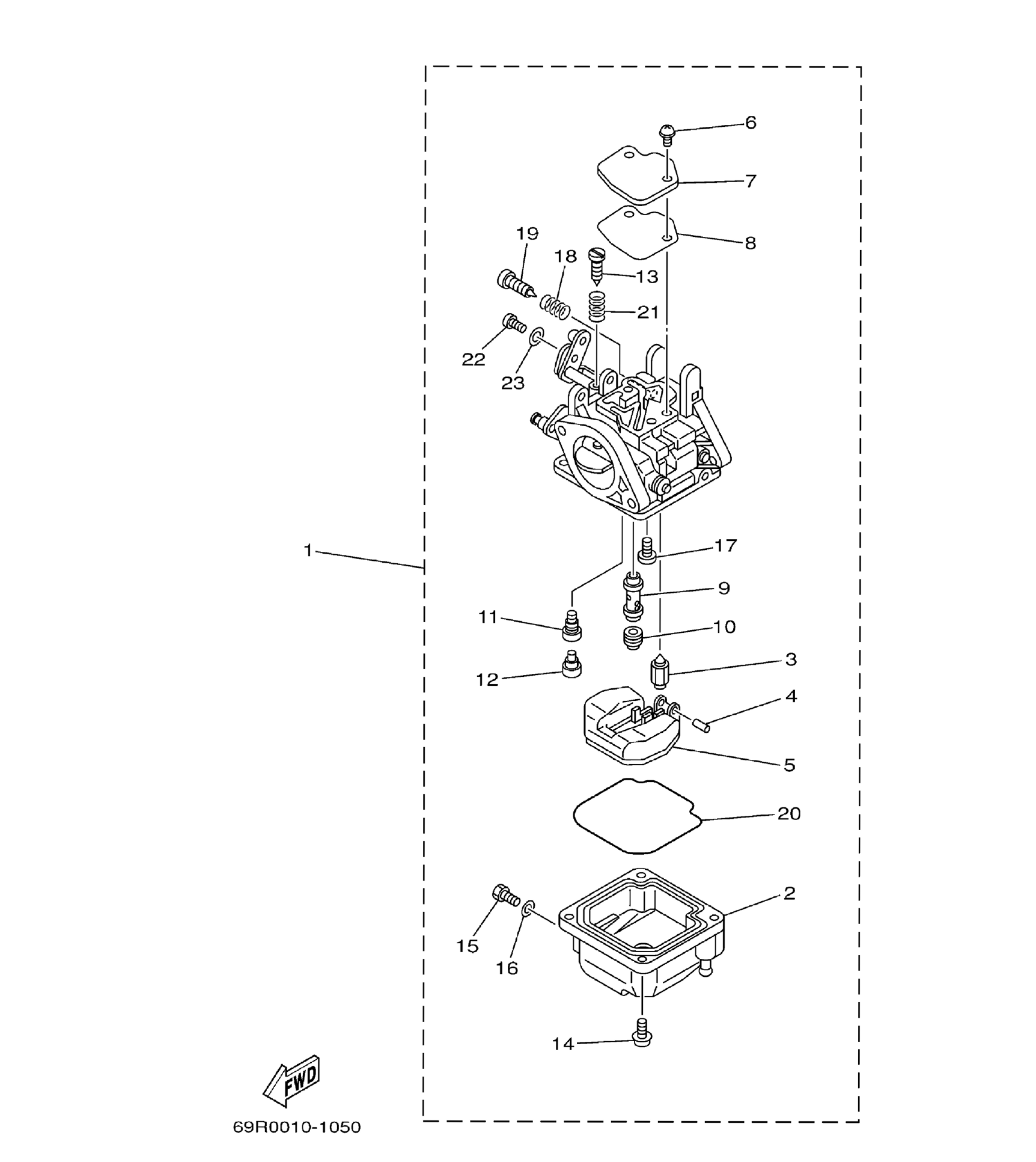

Diagram for section 5: CARBURETOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
695-14301-10
CARBURETOR ASSY
|
1 | Ask on WhatsApp |
| 1 |
69P-14301-00
CARBURETOR ASSY
|
Ask on WhatsApp | |
| 1 |
69P-14301-10
CARBURETOR ASSY
|
1 | Ask on WhatsApp |
| 1 |
69S-14301-00
CARBURETOR ASSY
|
1 | Ask on WhatsApp |
| 2 |
61N-14381-00
BODY, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 3 |
61N-14392-00
VALVE, NEEDLE
|
1 | Ask on WhatsApp |
| 4 |
6E5-14386-01
PIN, FLOAT
|
1 | Ask on WhatsApp |
| 5 |
6L2-14385-00
FLOAT
|
1 | Ask on WhatsApp |
| 7 |
6L2-14157-00
COVER, MIXING
|
1 | Ask on WhatsApp |
| 8 |
6L2-14399-00
GASKET
|
1 | Ask on WhatsApp |
| 9 |
61N-14341-00
NOZZLE, MAIN
|
1 | Ask on WhatsApp |
| 9 |
61T-14341-00
NOZZLE, MAIN
|
1 | Ask on WhatsApp |
| 10 |
61N-14343-65
JET, MAIN (#130)
|
1 | Ask on WhatsApp |
| 10 |
61N-14343-68
JET, MAIN (#135)
|
1 | Ask on WhatsApp |
| 10 |
61N-14343-70
JET, MAIN (#140)
|
1 | Ask on WhatsApp |
| 11 |
6L2-14342-34
JET, PILOT (#68)
|
1 | Ask on WhatsApp |
| 11 |
6L2-14342-36
JET, PILOT (#72)
|
1 | Ask on WhatsApp |
| 12 |
50M-14355-00
PLUG
|
1 | Ask on WhatsApp |
| 13 |
664-14321-01
“SCREW, THROTTLE
|
1 | Ask on WhatsApp |
| 15 |
677-14383-01
SCREW, DRAIN
|
1 | Ask on WhatsApp |
| 16 |
6L2-14398-00
GASKET
|
1 | Ask on WhatsApp |
| 19 |
61N-14323-00
" .SCREW
|
Ask on WhatsApp | |
| 20 |
6L2-14384-00
GASKET, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 21 |
61N-14212-00
SPRING, PILOTADJUSTING 1) 1]
|
1 | Ask on WhatsApp |
| 69 |
646-14212-01
SPRING, PILOT ADJUSTING
|
1 | Ask on WhatsApp |
