Yamaha E25B / E30H 2002 outboard parts & diagrams
Section 18: BRACKET
Engine sections in this catalog
TOP COWLING
CYLINDER. CRANKCASE
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL
CONTROL
BRACKET
BRACKET
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT
REPAIR KIT

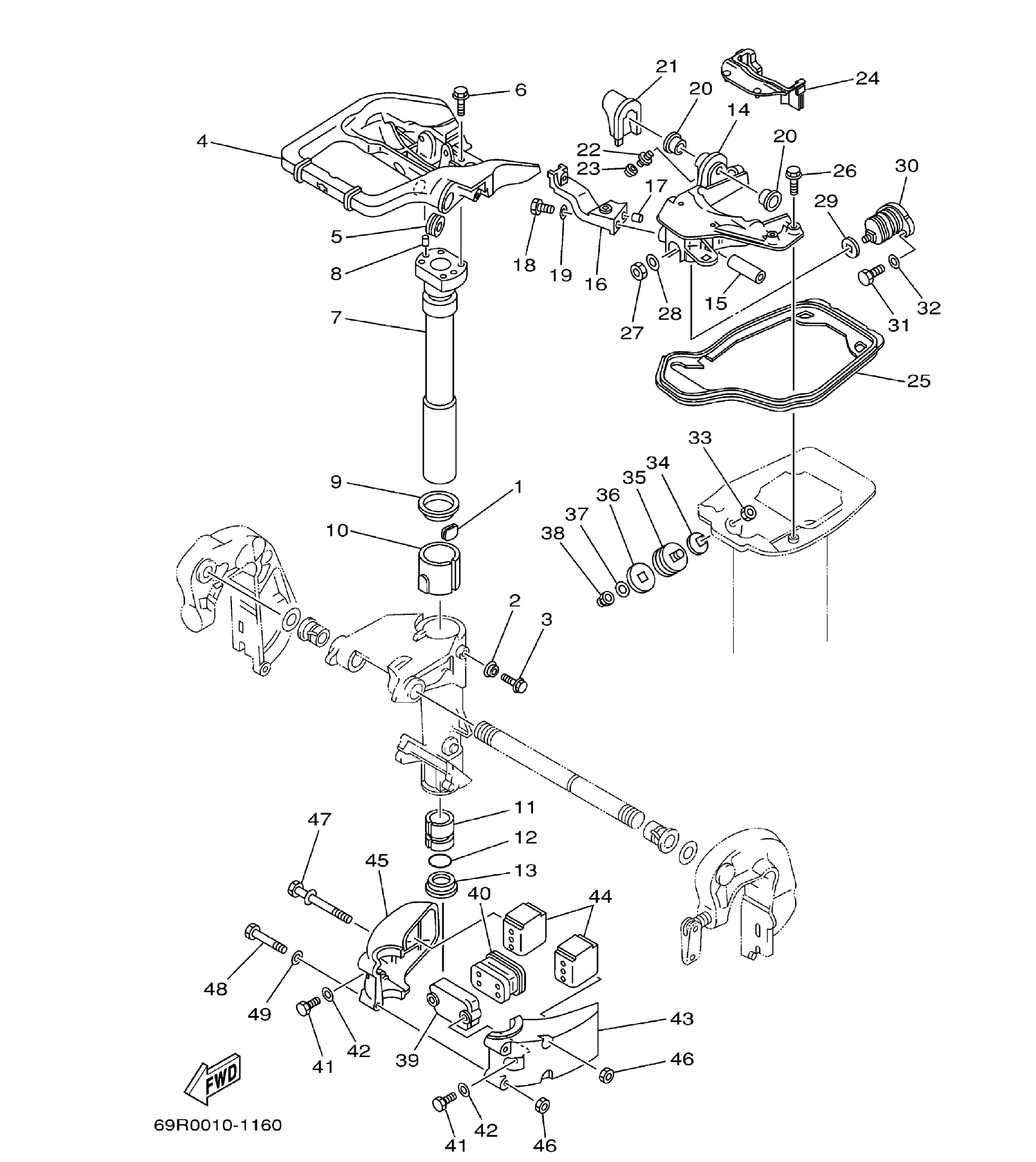

Diagram for section 18: BRACKET.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
648-42528-00
PLATE, FRICTION
|
1 | Ask on WhatsApp |
| 2 |
689-43373-01
SEAL, DAMPER
|
1 | Ask on WhatsApp |
| 4 |
69P-42511-00-4D
BRACKET, STEERING
|
1 | Ask on WhatsApp |
| 7 |
689-42521-00-94
SHAFT, STEERING PIVOT
|
1 |
Price:
161.00 AED
In stock
(2 pcs)
|
| 14 |
69P-44518-00-94
BRACKET COMP
|
1 | Ask on WhatsApp |
| 16 |
648-44519-00-94
BRACKET
|
1 | Ask on WhatsApp |
| 21 |
689-42718-00
RUBBER, SEAL8S3© O of foo
|
Ask on WhatsApp | |
| 23 |
663-45119-00
CAP, GREASE NIPPLE
|
1 | Ask on WhatsApp |
| 24 |
69P-42717-00
RUBBER, SEAL
|
Ask on WhatsApp | |
| 29 |
648-44591-00
GASKET 114/11
|
Ask on WhatsApp | |
| 30 |
689-44516-00
MOUNT DAMPER, UPPER FRONT
|
1 |
Price:
117.00 AED
In stock
(3 pcs)
|
| 34 |
648-44591-00
GASKET
|
2 | Ask on WhatsApp |
| 35 |
664-44514-00-94
MOUNT DAMPER, UPPER SIDE 2} 2]
|
2 | Ask on WhatsApp |
| 36 |
664-44591-00
GASKET
|
2 | Ask on WhatsApp |
| 39 |
689-44553-00-94
COVER, LOWER MOUNT 114/11
|
Ask on WhatsApp | |
| 40 |
689-44557-00
MOUNT DAMPER, LOWER FRONT
|
1 | Ask on WhatsApp |
| 43 |
689-44551-01-4D
HOUSING, LOWER MOUNT RUBBER 114/14
|
Ask on WhatsApp | |
| 44 |
689-44555-00
MOUNT DAMPER, LOWER SIDE
|
2 | Ask on WhatsApp |
| 45 |
689-44552-01-4D
HOUSING, LOWER MOUNT RUBBER
|
1 | Ask on WhatsApp |
| 69 |
69P-42716-00
RUBBER, SEAL1
|
1 | Ask on WhatsApp |
