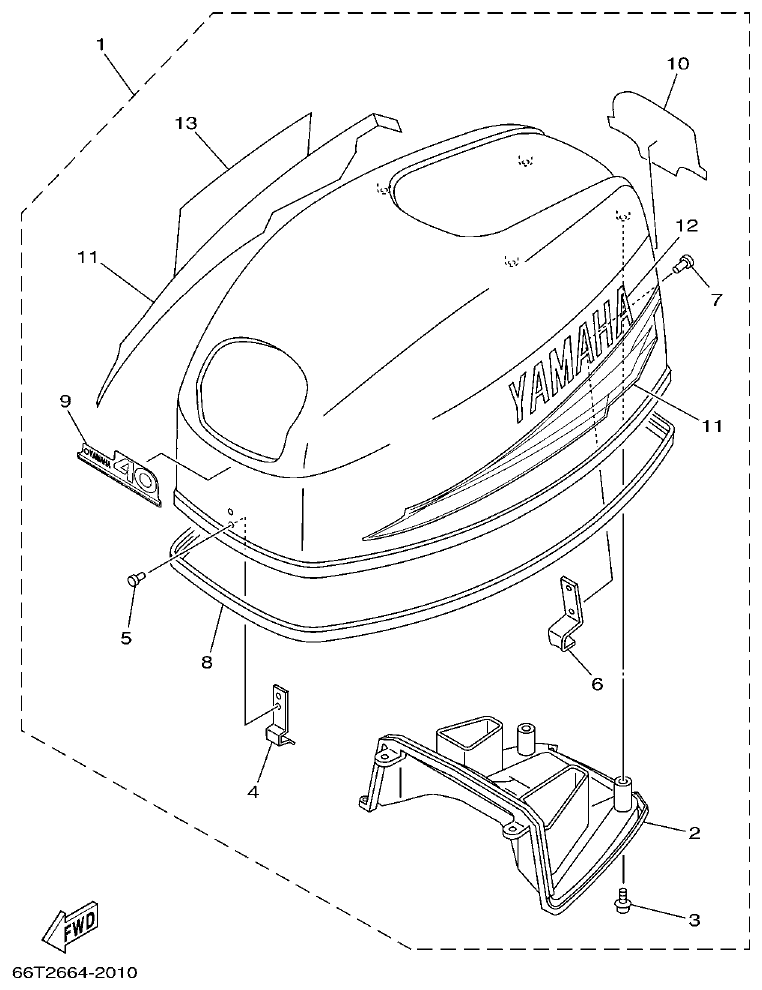

Yamaha 40XMH, 40XW Section 1 Parts Diagram
TOP COWLING
10 catalog rows · 2 linked store rows
Parts list
Section 1
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
66T-42610-20-4D
TOP COWLING ASSY
1 PRESURE
|
1 | |
| 2 |
66T-42613-01
.MOLDING, AIR DUCT
1
|
1 | |
| 4 |
6E0-42651-02
.HOOK
1
|
1 | |
| 6 |
6F5-42652-01
.HOOK
1
|
1 | |
| 8 |
66T-42615-02
.SEAL
1
|
1 | |
| 9 |
63D-42677-20
.GRAPHIC, FRONT
1 PRESURE
|
1 | |
| 10 |
63D-42678-11
.GRAPHIC, REAR
1 PRESURE
|
1 | |
| 11 |
63D-W0070-10
.GRAPHIC SET
1 PRESURE
|
1 | |
| 12 |
63D-42681-10
.MARK, COWLING
1 PRESURE
|
1 | |
| 13 |
63D-42682-10
.MARK, COWLING
1 PRESURE
|
1 |
