Yamaha 40XMH, 40XW Section 9 Parts Diagram
ELECTRICAL 1
21 catalog rows · 4 linked store rows
Yamaha 40XMH, 40XW ELECTRICAL 1 parts

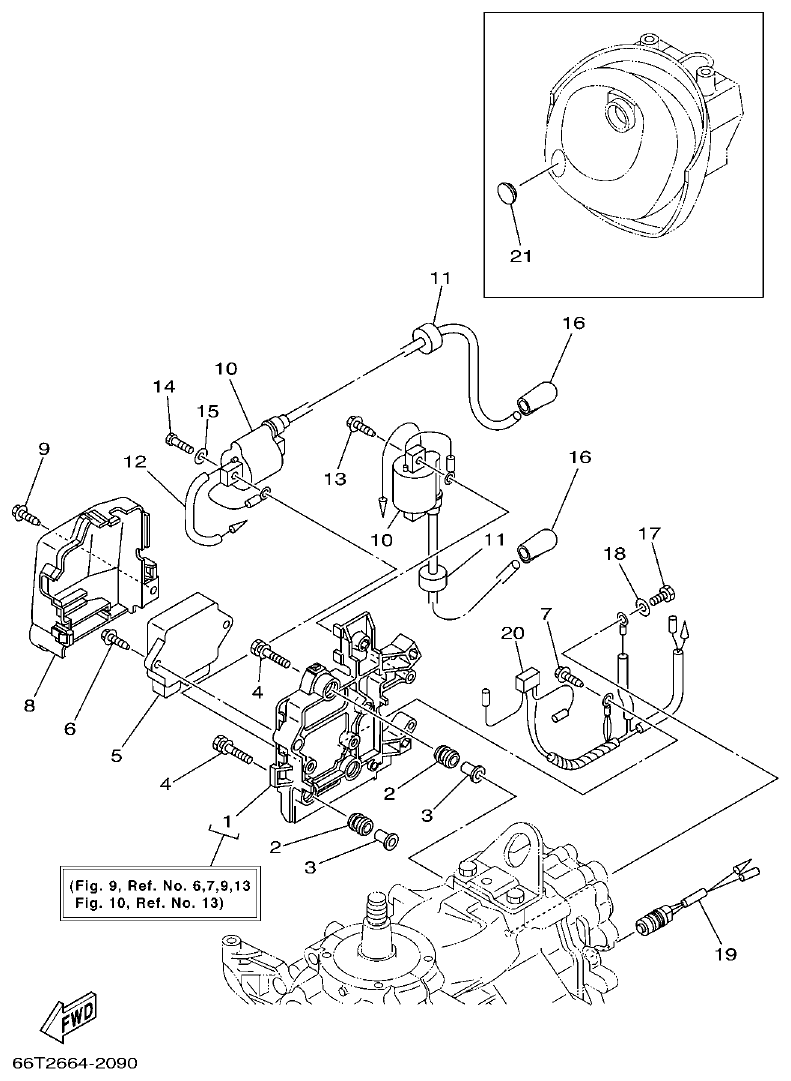

Yamaha 40XMH, 40XW section 9 covers electrical 1 parts for this outboard catalog. The list includes BRACKET, DAMPER, IGNITION COIL, PIPE, BOLT, WITH WASHER, C.D.I. UNIT ASSY, BOLT, COVER, TERMINAL, IGNITION COIL ASSY. Use the diagram reference numbers with the parts table to identify the correct item.
4 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 9
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
BRACKET
1
|
1 | |
| 2 |
DAMPER, IGNITION COIL
3
|
3 | |
| 3 |
PIPE
3
|
3 | |
| 4 |
BOLT, WITH WASHER
3
|
3 | |
| 5 |
C.D.I. UNIT ASSY
1
|
1 | |
| 6 |
BOLT
2
|
2 | |
| 7 |
BOLT
1
|
1 | |
| 8 |
COVER, TERMINAL
1
|
1 | |
| 9 |
BOLT
1
|
1 | |
| 10 |
IGNITION COIL ASSY
2
|
2 | |
| 11 |
GROMMET
2
|
2 | |
| 12 |
HOSE
1
|
1 | |
| 13 |
BOLT
2
|
2 | |
| 14 |
BOLT
2
|
2 | |
| 15 |
WASHER
2
|
2 | |
| 16 |
PLUG CAP ASSY
2
|
2 | |
| 17 |
BOLT
1
|
1 | |
| 18 |
WASHER
1
|
1 | |
| 19 |
THERMO SWITCH ASSY
1
|
1 | |
| 20 |
WIRE, EARTH LEAD
|
1 | |
| 21 |
GROMMET
1
|
1 |
