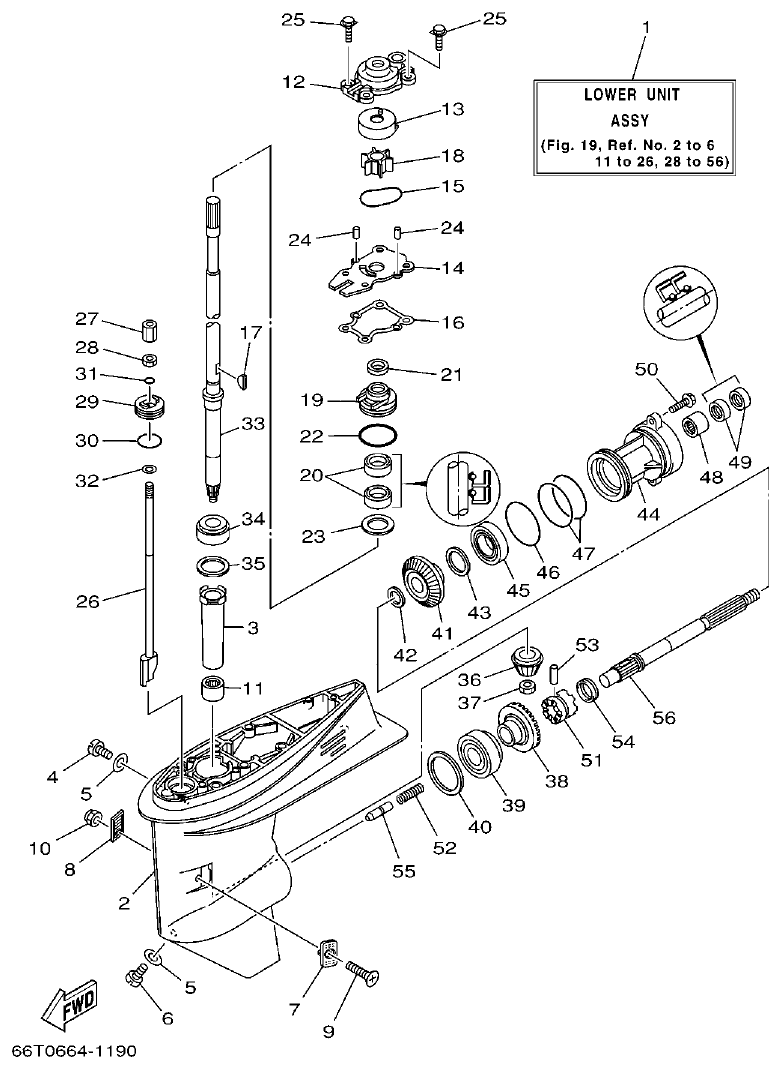

Yamaha 40XMH, 40XW Section 19 Parts Diagram
LOWER CASING & DRIVE 1
77 catalog rows · 23 linked store rows
Yamaha 40XMH, 40XW LOWER CASING & DRIVE 1 parts
Yamaha 40XMH, 40XW section 19 covers lower casing & drive 1 parts for this outboard catalog. The list includes LOWER UNIT ASSY, CASING, LOWER, SLEEVE, DRIVE SHAFT, PLUG, STRAIGHT SCREW, GASKET, PLUG, DRAIN, COVER, WATER INLET, SCREW, COUNTERSUNK. Use the diagram reference numbers with the parts table to identify the correct item.
23 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 19
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
LOWER UNIT ASSY
S
|
1 | |
| 1 |
LOWER UNIT ASSY
1 L
|
1 | |
| 2 |
CASING, LOWER
1
|
1 | |
| 3 |
SLEEVE, DRIVE SHAFT
1
|
1 | |
| 4 |
PLUG, STRAIGHT SCREW
1
|
1 | |
| 5 |
GASKET
Superseded by
90430-08003
2
|
2 | |
| 6 |
PLUG, DRAIN
1
|
1 | |
| 7 |
COVER, WATER INLET
1
|
1 | |
| 8 |
COVER, WATER INLET
1
|
1 | |
| 9 |
SCREW, COUNTERSUNK
1
|
1 | |
| 10 |
NUT
1
|
1 | |
| 11 |
BEARING
1
|
1 | |
| 12 |
HOUSING, WATER PUMP
1
|
1 | |
| 13 |
INSERT, CARTRIDGE
1
|
1 | |
| 14 |
OUTER PLATE, CARTRIDGE
1
|
1 | |
| 15 |
O-RING
1
|
1 | |
| 16 |
GASKET, WATER PUMP
1
|
1 | |
| 17 |
KEY, WOODRUFF
1
|
1 | |
| 18 |
IMPELLER
1
|
1 | |
| 19 |
HOUSING, WATER PUMP
Superseded by
99999-03916
1
|
1 | |
| 20 |
OIL SEAL
2
|
2 | |
| 21 |
COVER, OIL SEAL
1
|
1 | |
| 22 |
O-RING
1
|
1 | |
| 23 |
WASHER, PLATE
1
|
1 | |
| 24 |
PIN, DOWEL
2
|
2 | |
| 25 |
BOLT, WITH WASHER
4
|
4 | |
| 26 |
SHIFT CAM ASSY
S
|
1 | |
| 26 |
SHIFT CAM ASSY
1 L
|
1 | |
| 27 |
CONNECTOR, SHIFT ROD
1
|
1 | |
| 28 |
NUT
1
|
1 | |
| 29 |
PLATE
1
|
1 | |
| 30 |
O-RING
1
|
1 | |
| 31 |
O-RING
1
|
1 | |
| 32 |
WASHER, PLATE
1
|
1 | |
| 33 |
DRIVE SHAFT COMP.
S
|
1 | |
| 33 |
DRIVE SHAFT COMP.
1 L
|
1 | |
| 34 |
BEARING
1
|
1 | |
| 35 |
SHIM (T:0.10MM)
1 UR
|
1 | |
| 35 |
SHIM (T:0.12MM)
1 UR
|
1 | |
| 35 |
SHIM (T:0.15MM)
1 UR
|
1 | |
| 35 |
SHIM (T:0.18MM)
1 UR
|
1 | |
| 35 |
SHIM (T:0.30MM)
1 UR
|
1 | |
| 35 |
SHIM (T:0.40MM)
1 UR
|
1 | |
| 35 |
SHIM (T:0.50MM)
1 UR
|
1 | |
| 36 |
PINION
1
|
1 | |
| 37 |
NUT
1
|
1 | |
| 38 |
GEAR
1
|
1 | |
| 39 |
BEARING
1
|
1 | |
| 40 |
SHIM (T:0.10MM)
1 UR
|
1 | |
| 40 |
SHIM (T:0.12MM)
1 UR
|
1 | |
| 40 |
SHIM (T:0.15MM)
1 UR
|
1 | |
| 40 |
SHIM (T:0.18MM)
1 UR
|
1 | |
| 40 |
SHIM (T:0.30MM)
1 UR
|
1 | |
| 40 |
SHIM (T:0.40MM)
1 UR
|
1 | |
| 40 |
SHIM (T:0.50MM)
1 UR
|
1 | |
| 41 |
GEAR
1
|
1 | |
| 42 |
WASHER, PLATE
1
|
1 | |
| 43 |
SHIM (T:0.10MM)
1 UR
|
1 | |
| 43 |
SHIM (T:0.12MM)
1 UR
|
1 | |
| 43 |
SHIM (T:0.15MM)
1 UR
|
1 | |
| 43 |
SHIM (T:0.18MM)
1 UR
|
1 | |
| 43 |
SHIM (T:0.30MM)
1 UR
|
1 | |
| 43 |
SHIM (T:0.40MM)
1 UR
|
1 | |
| 43 |
SHIM (T:0.50MM)
1 UR
|
1 | |
| 44 |
CAP, LOWER CASING
1
|
1 | |
| 45 |
BEARING
1
|
1 | |
| 46 |
O-RING
1
|
1 | |
| 47 |
O-RING
2
|
2 | |
| 48 |
BEARING
1
|
1 | |
| 49 |
OIL SEAL
2
|
2 | |
| 50 |
BOLT, FLANGE
2
|
2 | |
| 51 |
CLUTCH, DOG
1
|
1 | |
| 52 |
SPRING, COMPRESSION
1
|
1 | |
| 53 |
PIN, STRAIGHT
1
|
1 | |
| 54 |
RING, CROSS PIN
1
|
1 | |
| 55 |
PLUNGER, SHIFT
1
|
1 | |
| 56 |
SHAFT, PROPELLER
1
|
1 |
