Yamaha 40XMH, 40XW Section 6 Parts Diagram
FUEL
32 catalog rows · 6 linked store rows
Yamaha 40XMH, 40XW FUEL parts

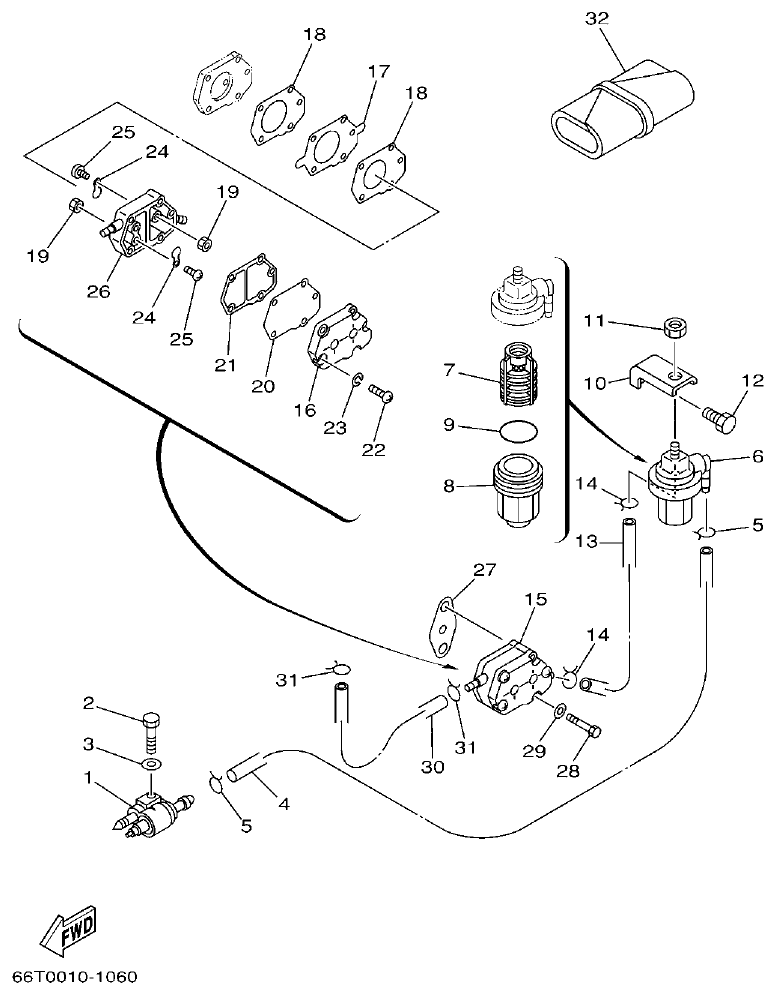

Yamaha 40XMH, 40XW section 6 covers fuel parts for this outboard catalog. The list includes FUEL PIPE JOINT COMP., BOLT, WASHER, HOSE (L550), CLIP, FILTER ASSY, ELEMENT, FILTER, CUP, FILTER. Use the diagram reference numbers with the parts table to identify the correct item.
6 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 6
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
FUEL PIPE JOINT COMP.
1 1
|
1 | |
| 2 |
BOLT
1
|
1 | |
| 3 |
WASHER
1
|
1 | |
| 4 |
HOSE (L550)
1
|
1 | |
| 5 |
CLIP
2
|
2 | |
| 6 |
FILTER ASSY
1
|
1 | |
| 7 |
.ELEMENT, FILTER
1
|
1 | |
| 8 |
.CUP, FILTER
1
|
1 | |
| 9 |
.O-RING
1
|
1 | |
| 10 |
BRACKET, FILTER
1
|
1 | |
| 11 |
NUT
1
|
1 | |
| 12 |
BOLT
1
|
1 | |
| 13 |
HOSE (L170)
1
|
1 | |
| 14 |
CLIP
2
|
2 | |
| 15 |
FUEL PUMP ASSY
1
|
1 | |
| 16 |
.BODY 2
1
|
1 | |
| 17 |
.DIAPHRAGM
1
|
1 | |
| 18 |
.GASKET, BODY
2
|
2 | |
| 19 |
.NUT
2
|
2 | |
| 20 |
.DIAPHRAGM
1
|
1 | |
| 21 |
.GASKET, BODY 2
1
|
1 | |
| 22 |
.SCREW, PAN HEAD
3
|
3 | |
| 23 |
.WASHER, SPRING
3
|
3 | |
| 24 |
.VALVE, CHECK
2
|
2 | |
| 25 |
.SCREW, PAN HEAD
2
|
2 | |
| 26 |
.BODY 1
1
|
1 | |
| 27 |
GASKET, FUEL PUMP
1 1
|
1 | |
| 28 |
BOLT
2
|
2 | |
| 29 |
WASHER
2
|
2 | |
| 30 |
HOSE (L170)
1
|
1 | |
| 31 |
CLIP
2
|
2 | |
| 32 |
TOOL KIT
1
|
1 |
