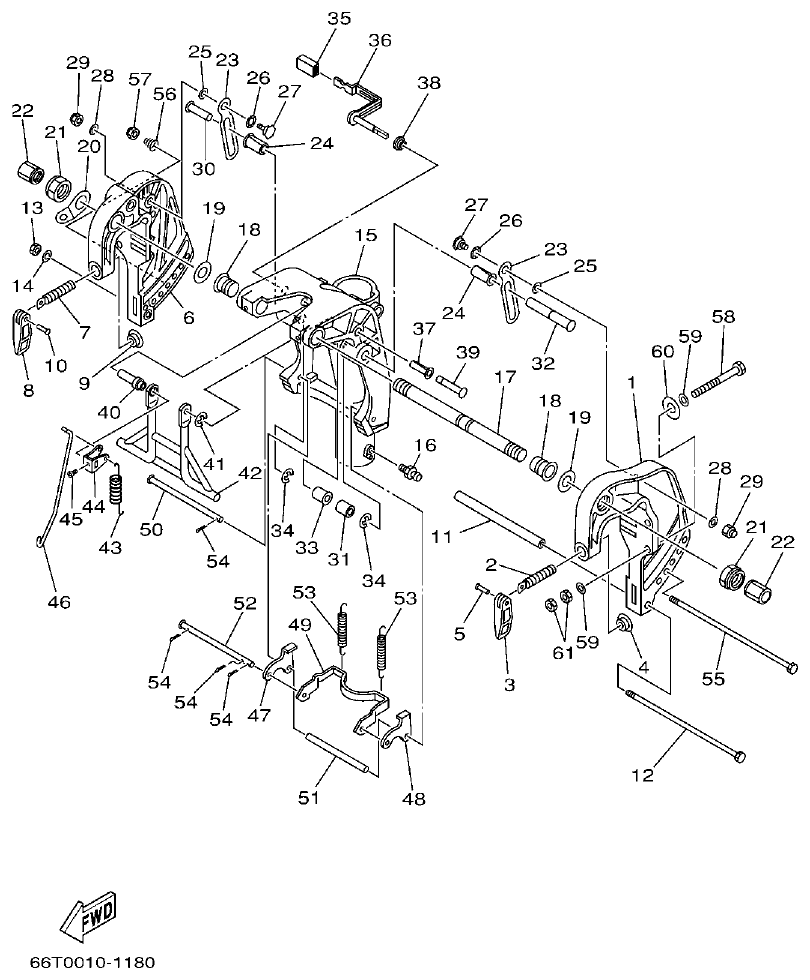

Yamaha 40XMH, 40XW Section 16 Parts Diagram
BRACKET 1
62 catalog rows · 4 linked store rows
Yamaha 40XMH, 40XW BRACKET 1 parts
Yamaha 40XMH, 40XW section 16 covers bracket 1 parts for this outboard catalog. The list includes BRACKET, CLAMP, SCREW, HANDLE, TRANSOM CLAMP, PAD, TRANSOM CLAMP, PIN, COLLAR, BOLT, NUT. Use the diagram reference numbers with the parts table to identify the correct item.
4 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 16
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
BRACKET, CLAMP
1
|
1 | |
| 2 |
SCREW
1
|
1 | |
| 3 |
HANDLE, TRANSOM CLAMP
1
|
1 | |
| 4 |
PAD, TRANSOM CLAMP
1
|
1 | |
| 5 |
PIN
1
|
1 | |
| 6 |
BRACKET, CLAMP
1
|
1 | |
| 7 |
SCREW
1
|
1 | |
| 8 |
HANDLE, TRANSOM CLAMP
1
|
1 | |
| 9 |
PAD, TRANSOM CLAMP
1
|
1 | |
| 10 |
PIN
1
|
1 | |
| 11 |
COLLAR
1
|
1 | |
| 12 |
BOLT
1
|
1 | |
| 13 |
NUT
1
|
1 | |
| 14 |
WASHER, SPRING
1
|
1 | |
| 15 |
BRACKET, SWIVEL
1 S
|
1 | |
| 15 |
BRACKET, SWIVEL 1
1 L
|
1 | |
| 16 |
NIPPLE, GREASE
3
|
3 | |
| 17 |
BOLT, CLAMP BRACKET
1
|
1 | |
| 18 |
BUSH
2
|
2 | |
| 19 |
WASHER, PLATE
2
|
2 | |
| 20 |
PLATE, CLAMP BRACKET
1
|
1 | |
| 21 |
NUT, SELF-LOCKING
2
|
2 | |
| 22 |
CAP, CLAMP BRACKET
2
|
2 | |
| 23 |
STOPPER
2
|
2 | |
| 24 |
BUSH
2
|
2 | |
| 25 |
WASHER, PLATE
2
|
2 | |
| 26 |
WASHER, WAVE
2
|
2 | |
| 27 |
BOLT
2
|
2 | |
| 28 |
WASHER, PLATE
2
|
2 | |
| 29 |
NUT, SELF-LOCKING
2
|
2 | |
| 30 |
PIN
1
|
1 | |
| 31 |
COLLAR
1
|
1 | |
| 32 |
PIN
1
|
1 | |
| 33 |
BUSH
1
|
1 | |
| 34 |
CIRCLIP
2
|
2 | |
| 35 |
COVER
1
|
1 | |
| 36 |
TILT LEVER ASSY
1
|
1 | |
| 37 |
BUSH
1
|
1 | |
| 38 |
BUSH
1
|
1 | |
| 39 |
PIN
1
|
1 | |
| 40 |
COLLAR
1
|
1 | |
| 41 |
CIRCLIP
1
|
1 | |
| 42 |
RECEIVER ASSY
1
|
1 | |
| 43 |
SPRING, TENSION
1
|
1 | |
| 44 |
LEVER, TILT
1
|
1 | |
| 45 |
SCREW, PAN HEAD
1
|
1 | |
| 46 |
ROD, TILT LOCK
1
|
1 | |
| 47 |
PLATE, TILT LOCK
1
|
1 | |
| 48 |
PLATE, TILT LOCK
1
|
1 | |
| 49 |
ARM, TILT LOCK
1
|
1 | |
| 50 |
PIN
1
|
1 | |
| 51 |
COLLAR
1
|
1 | |
| 52 |
PIN
1
|
1 | |
| 53 |
SPRING, TENSION
2
|
2 | |
| 54 |
PIN, COTTER
4
|
4 | |
| 55 |
BOLT
1
|
1 | |
| 56 |
SPRING, CONICAL
1
|
1 | |
| 57 |
NUT, SELF-LOCKING
1
|
1 | |
| 58 |
BOLT
4
|
4 | |
| 59 |
WASHER
8
|
8 | |
| 60 |
WASHER, PLATE
4
|
4 | |
| 61 |
NUT
8
|
8 |
