Yamaha 40XMH, 40XW Section 18 Parts Diagram
UPPER CASING
19 catalog rows · 4 linked store rows
Yamaha 40XMH, 40XW UPPER CASING parts

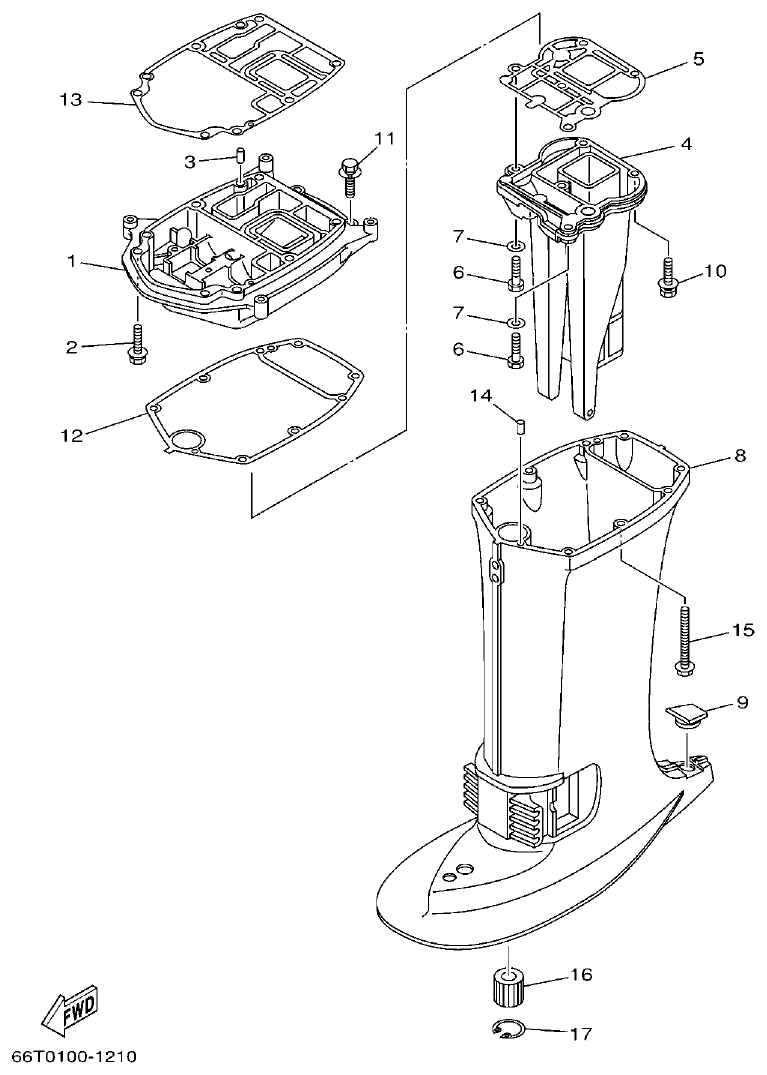

Yamaha 40XMH, 40XW section 18 covers upper casing parts for this outboard catalog. The list includes GUIDE, EXHAUST, BOLT, WITH WASHER, PIN, DOWEL, MANIFOLD, EXT. 1, GASKET, EXHAUST MANIFOLD, BOLT, WASHER, CASING, UPPER. Use the diagram reference numbers with the parts table to identify the correct item.
4 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 18
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1
|
GUIDE, EXHAUST
1
|
Qty 1 | |
|
Ref
2
|
BOLT, WITH WASHER
2
|
Qty 2 | |
|
Ref
3
|
PIN, DOWEL
2
|
Qty 2 | |
|
Ref
4
|
MANIFOLD, EXT. 1
S
|
Qty 1 | |
|
Ref
4
|
MANIFOLD, EXT. 1
1 L
|
Qty 1 | |
|
Ref
5
|
GASKET, EXHAUST MANIFOLD
1 1
|
Qty 1 | |
|
Ref
6
|
BOLT
2
|
Qty 2 | |
|
Ref
7
|
WASHER
2
|
Qty 2 | |
|
Ref
8
|
CASING, UPPER
S
|
Qty 1 | |
|
Ref
8
|
CASING, UPPER
1 L
|
Qty 1 | |
|
Ref
9
|
CAP
1
|
Qty 1 | |
|
Ref
10
|
BOLT, WITH WASHER
3
|
Qty 3 | |
|
Ref
11
|
BOLT, WITH WASHER
2
|
Qty 2 | |
|
Ref
12
|
GASKET, UPPER CASING
1
|
Qty 1 | |
|
Ref
13
|
GASKET, UPPER CASING
Superseded by
66T-45113-A1
1
|
Qty 1 | |
|
Ref
14
|
PIN, DOWEL
2
|
Qty 2 | |
|
Ref
15
|
BOLT, WITH WASHER
6
|
Qty 6 | |
|
Ref
16
|
BUSHING, DRIVE SHAFT
1 L
|
Qty 1 | |
|
Ref
17
|
CIRCLIP
1 L
|
Qty 1 |
