Yamaha 40XMH, 40XW Section 24 Parts Diagram
REPAIR KIT 1
28 catalog rows · 12 linked store rows
Yamaha 40XMH, 40XW REPAIR KIT 1 parts

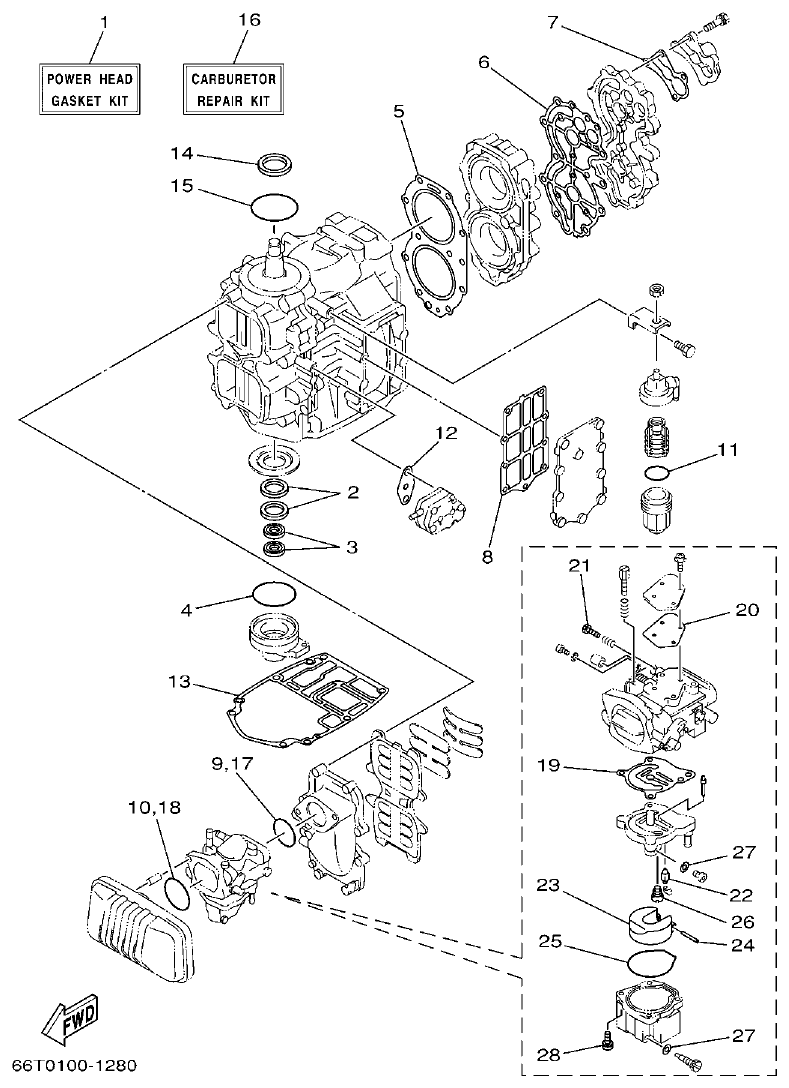

Yamaha 40XMH, 40XW section 24 covers repair kit 1 parts for this outboard catalog. The list includes POWER HEAD GASKET KIT, OIL SEAL, O-RING, GASKET, CYLINDER HEAD, GASKET, HEAD COVER 1, GASKET, COVER, GASKET, EXHAUST OUTER COVER, GASKET, FUEL PUMP 1. Use the diagram reference numbers with the parts table to identify the correct item.
12 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 24
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
POWER HEAD GASKET KIT
1
|
1 | |
| 2 |
.OIL SEAL
2
|
2 | |
| 3 |
.OIL SEAL
2
|
2 | |
| 4 |
.O-RING
1
|
1 | |
| 5 |
.GASKET, CYLINDER HEAD
1 1
|
1 | |
| 6 |
.GASKET, HEAD COVER 1
1
|
1 | |
| 7 |
.GASKET, COVER
1
|
1 | |
| 8 |
.GASKET, EXHAUST OUTER COVER
1
|
1 | |
| 9 |
.O-RING
1
|
1 | |
| 10 |
.O-RING
1
|
1 | |
| 11 |
.O-RING
1
|
1 | |
| 12 |
.GASKET, FUEL PUMP 1
1
|
1 | |
| 13 |
.GASKET, UPPER CASING
1
|
1 | |
| 14 |
.OIL SEAL
1
|
1 | |
| 15 |
.O-RING
1
|
1 | |
| 16 |
CARBURETOR REPAIR KIT
1
|
1 | |
| 17 |
.O-RING
1
|
1 | |
| 18 |
.O-RING
1
|
1 | |
| 19 |
.GASKET, FLOAT CHAMBER
1
|
1 | |
| 20 |
.GASKET
1
|
1 | |
| 21 |
.SCREW, AIR ADJUSTING
1
|
1 | |
| 22 |
.VALVE, NEEDLE
1
|
1 | |
| 23 |
.FLOAT
1
|
1 | |
| 24 |
.PIN, FLOAT
1
|
1 | |
| 25 |
.GASKET, FLOAT CHAMBER
1
|
1 | |
| 26 |
.PLUG
1
|
1 | |
| 27 |
.GASKET
2
|
2 | |
| 28 |
.SCREW, WITH WASHER
4
|
4 |
