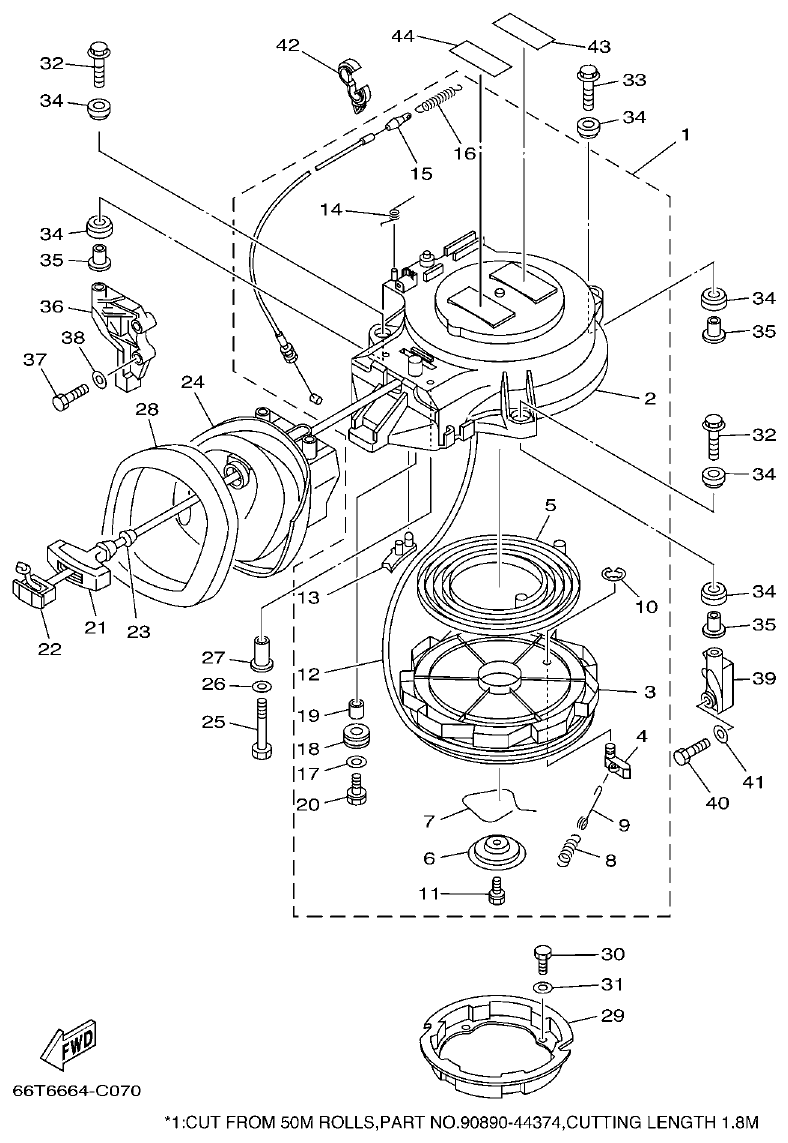

Yamaha 40XMH, 40XW Section 7 Parts Diagram
STARTER
43 catalog rows · 13 linked store rows
Yamaha 40XMH, 40XW STARTER parts
Yamaha 40XMH, 40XW section 7 covers starter parts for this outboard catalog. The list includes STARTER ASSY, CASE, STARTER, DRUM, SHEAVE, PAWL, DRIVE, SPRING, STARTER, PLATE, DRIVE, SPRING, DRIVE PAWL, SPRING. Use the diagram reference numbers with the parts table to identify the correct item.
13 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 7
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
STARTER ASSY
1
|
1 | |
| 2 |
.CASE, STARTER
1
|
1 | |
| 3 |
.DRUM, SHEAVE
1
|
1 | |
| 4 |
.PAWL, DRIVE
1
|
1 | |
| 5 |
.SPRING, STARTER
1
|
1 | |
| 6 |
.PLATE, DRIVE
1
|
1 | |
| 7 |
.SPRING, DRIVE PAWL
1
|
1 | |
| 8 |
.SPRING
1
|
1 | |
| 9 |
.SPRING, RETURN
1
|
1 | |
| 10 |
.CIRCLIP
1
|
1 | |
| 11 |
.BOLT
1
|
1 | |
| 13 |
.STOPPER
1
|
1 | |
| 14 |
.SPRING, RETURN
1
|
1 | |
| 15 |
.CABLE COMP., STARTER STOP
1
|
1 | |
| 16 |
.SPRING, RETURN
1
|
1 | |
| 17 |
.WASHER, LOCK
1
|
1 | |
| 18 |
.ROLLER, WIRE
1
|
1 | |
| 19 |
.BUSH
1
|
1 | |
| 20 |
.BOLT
1
|
1 | |
| 21 |
HANDLE, STARTER
1
|
1 | |
| 22 |
COVER
1
|
1 | |
| 23 |
DAMPER
1
|
1 | |
| 24 |
GUIDE, ROPE
1
|
1 | |
| 25 |
BOLT
2
|
2 | |
| 26 |
WASHER
2
|
2 | |
| 27 |
COLLAR
2
|
2 | |
| 28 |
SEAL, RUBBER
1 1
|
2 | |
| 29 |
PULLEY, STARTER
1
|
1 | |
| 30 |
BOLT
4
|
4 | |
| 31 |
WASHER
4
|
4 | |
| 32 |
BOLT, WITH WASHER
2
|
2 | |
| 33 |
BOLT, WITH WASHER
1
|
1 | |
| 34 |
BUSH
6
|
6 | |
| 35 |
COLLAR
3
|
3 | |
| 36 |
STAY 1
1
|
1 | |
| 37 |
BOLT
2
|
2 | |
| 38 |
WASHER, PLATE
2
|
2 | |
| 39 |
STAY 2
1
|
1 | |
| 40 |
BOLT
2
|
2 | |
| 41 |
WASHER, PLATE
2
|
2 | |
| 42 |
CLAMP
|
1 | |
| 43 |
MARK 5
1
|
1 | |
| 44 |
MARK 5
1
|
1 |
