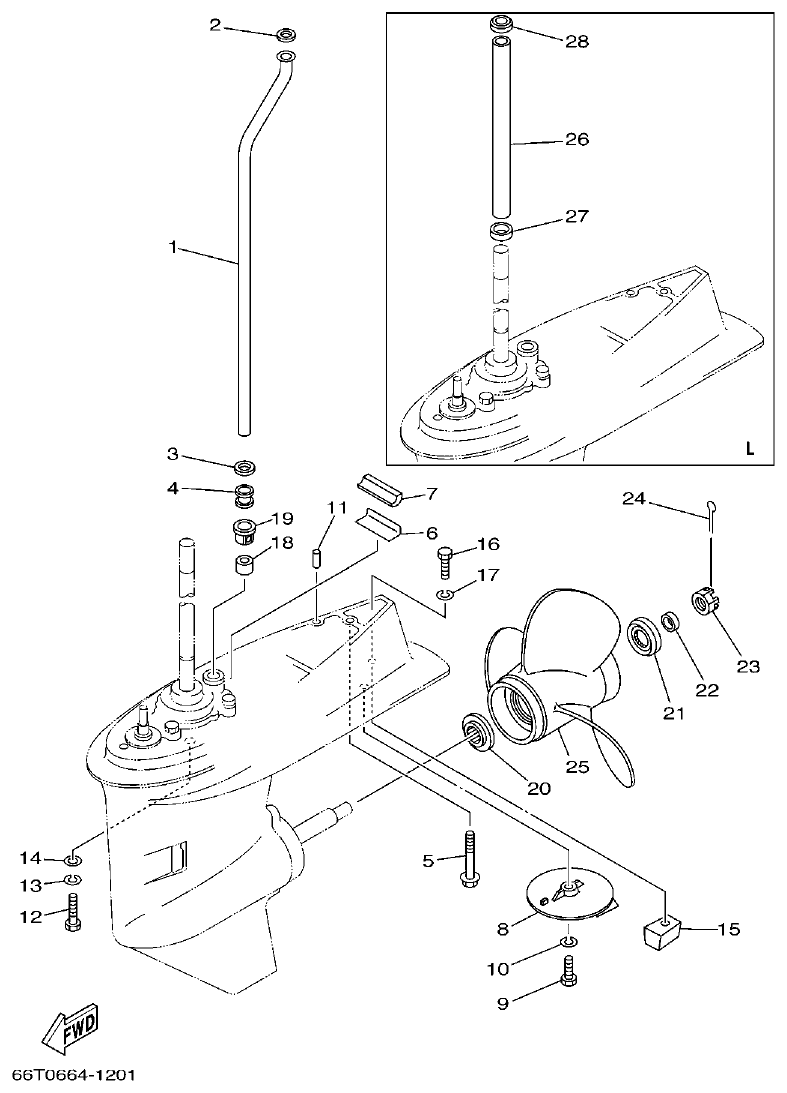

Yamaha 40XMH, 40XW Section 20 Parts Diagram
LOWER CASING & DRIVE 2
45 catalog rows · 6 linked store rows
Parts list
Section 20
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
TUBE, WATER
S
|
1 | |
| 1 |
TUBE, WATER
1 L
|
1 | |
| 2 |
WASHER, PLATE
1
|
1 | |
| 3 |
GASKET
1
|
1 | |
| 4 |
DAMPER, WATER SEAL
1
|
1 | |
| 5 |
BOLT, WITH WASHER
1
|
1 | |
| 6 |
GUIDE, SEAL DAMPER
1
|
1 | |
| 7 |
DAMPER, SEAL
1
|
1 | |
| 8 |
TAB-TRIM
1
|
1 | |
| 9 |
BOLT
1
|
1 | |
| 10 |
WASHER
1
|
1 | |
| 11 |
PIN, DOWEL
2
|
2 | |
| 12 |
BOLT
4
|
4 | |
| 13 |
WASHER
4
|
4 | |
| 14 |
WASHER
4
|
4 | |
| 15 |
ANODE
1
|
1 | |
| 16 |
BOLT
1
|
1 | |
| 17 |
WASHER
1
|
1 | |
| 18 |
DAMPER, WATER SEAL
1
|
1 | |
| 19 |
COVER, WATER PUMP HOUSING
1
|
1 | |
| 20 |
SPACER
1
|
1 | |
| 21 |
SPACER
1
|
1 | |
| 22 |
BUSH
1
|
1 | |
| 23 |
NUT, CASTLE
1
|
1 | |
| 24 |
PIN, COTTER
1
|
1 | |
| 25 |
PROPELLER (3X12-1/4"X8"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X10-1/4"X14"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X10-3/4"X17"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X10-3/4"X16"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-3/8"X12"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-3/4"X10"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X12-1/4"X9"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-1/4"X14"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-3/4"X12"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X12"X11"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-1/2"X13"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X10-1/4"X15"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X10-1/4"X16"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11"X15"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-1/8"X13"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-5/8"X11"-G)
1 UR
|
1 | |
| 25 |
PROPELLER (3X11-3/8"X12"-G)
1 UR
|
1 | |
| 26 |
TUBE, WATER
1 L
|
1 | |
| 27 |
GROMMET
1 L
|
1 | |
| 28 |
GROMMET
1 L
|
1 |
