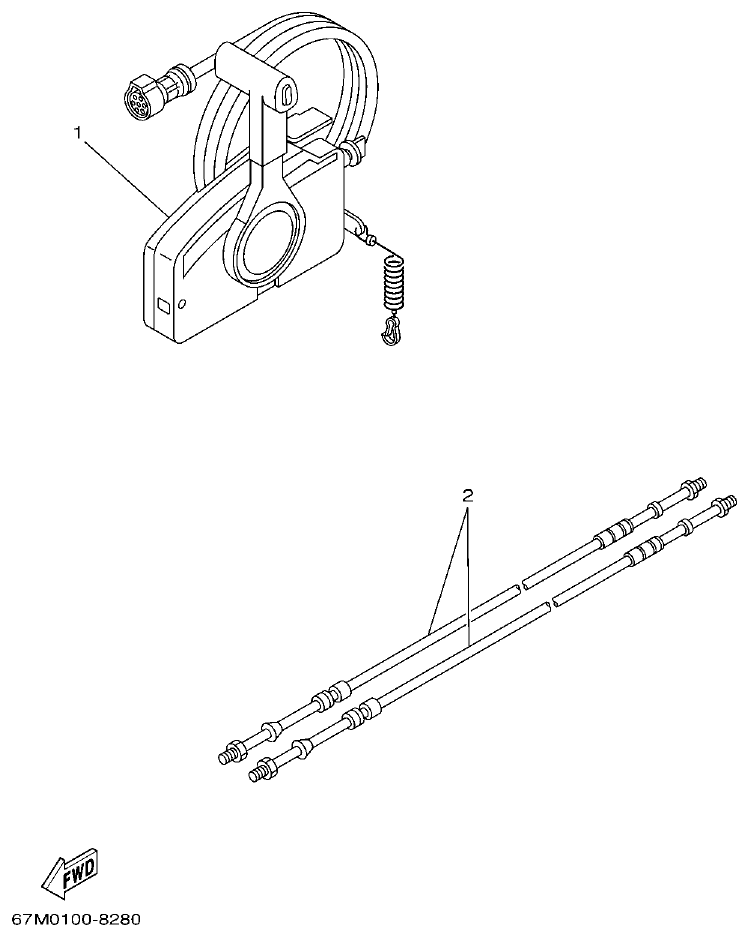

Yamaha 40XMH, 40XW Section 22 Parts Diagram
REMOTE CONTROL BOX
8 catalog rows · 0 linked store rows
Parts list
Section 22
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
703-48203-15
REMOTE CONTROL ASSY (7P)
AP
|
1 | |
| 2 |
701-48310-90
CABLE, REMOTE CONTROL L=11F
UR
|
2 | |
| 2 |
701-48320-00
CABLE, REMOTE CONTROL L=12F
UR
|
2 | |
| 2 |
701-48320-20
CABLE, REMOTE CONTROL L=13F
UR
|
2 | |
| 2 |
701-48320-30
CABLE, REMOTE CONTROL L=14F
UR
|
2 | |
| 2 |
701-48320-50
CABLE, REMOTE CONTROL L=15F
UR
|
2 | |
| 2 |
701-48320-60
CABLE, REMOTE CONTROL L=16F
UR
|
2 | |
| 2 |
701-48320-80
CABLE, REMOTE CONTROL L=17F
UR
|
2 |
