Yamaha 40XMH, 40XW Section 25 Parts Diagram
REPAIR KIT 2
26 catalog rows · 9 linked store rows
Yamaha 40XMH, 40XW REPAIR KIT 2 parts

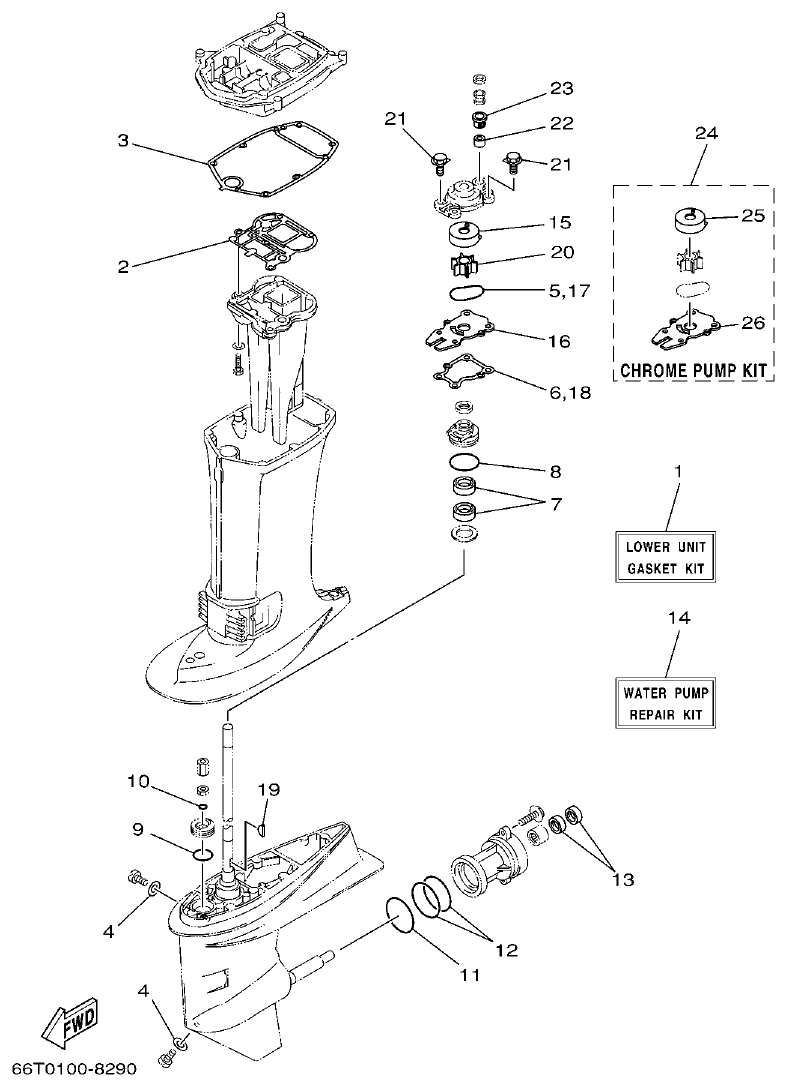

Yamaha 40XMH, 40XW section 25 covers repair kit 2 parts for this outboard catalog. The list includes LOWER UNIT GASKET KIT, GASKET, EXHAUST MANIFOLD, GASKET, UPPER CASING, GASKET, O-RING, GASKET, WATER PUMP, OIL SEAL, WATER PUMP REPAIR KIT. Use the diagram reference numbers with the parts table to identify the correct item.
9 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 25
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
LOWER UNIT GASKET KIT
1
|
1 | |
| 2 |
.GASKET, EXHAUST MANIFOLD
1 1
|
1 | |
| 3 |
.GASKET, UPPER CASING
1
|
1 | |
| 4 |
.GASKET
2
|
2 | |
| 5 |
.O-RING
1
|
1 | |
| 6 |
.GASKET, WATER PUMP
1
|
1 | |
| 7 |
.OIL SEAL
2
|
2 | |
| 8 |
.O-RING
1
|
1 | |
| 9 |
.O-RING
1
|
1 | |
| 10 |
.O-RING
1
|
1 | |
| 11 |
.O-RING
1
|
1 | |
| 12 |
.O-RING
2
|
2 | |
| 13 |
.OIL SEAL
2
|
2 | |
| 14 |
WATER PUMP REPAIR KIT
1
|
1 | |
| 15 |
.INSERT, CARTRIDGE
1
|
1 | |
| 16 |
.OUTER PLATE, CARTRIDGE
1
|
1 | |
| 17 |
.O-RING
1
|
1 | |
| 18 |
.GASKET, WATER PUMP
1
|
1 | |
| 19 |
.KEY, WOODRUFF
1
|
1 | |
| 20 |
.IMPELLER
1
|
1 | |
| 21 |
.BOLT, WITH WASHER
4
|
4 | |
| 22 |
.DAMPER, WATER SEAL
1
|
1 | |
| 23 |
.COVER, WATER PUMP HOUSING
1
|
1 | |
| 24 |
CHROME PUMP KIT
1
|
1 | |
| 25 |
.INSERT, CARTRIDGE
1
|
1 | |
| 26 |
.OUTER PLATE, CARTRIDGE
1
|
1 |
