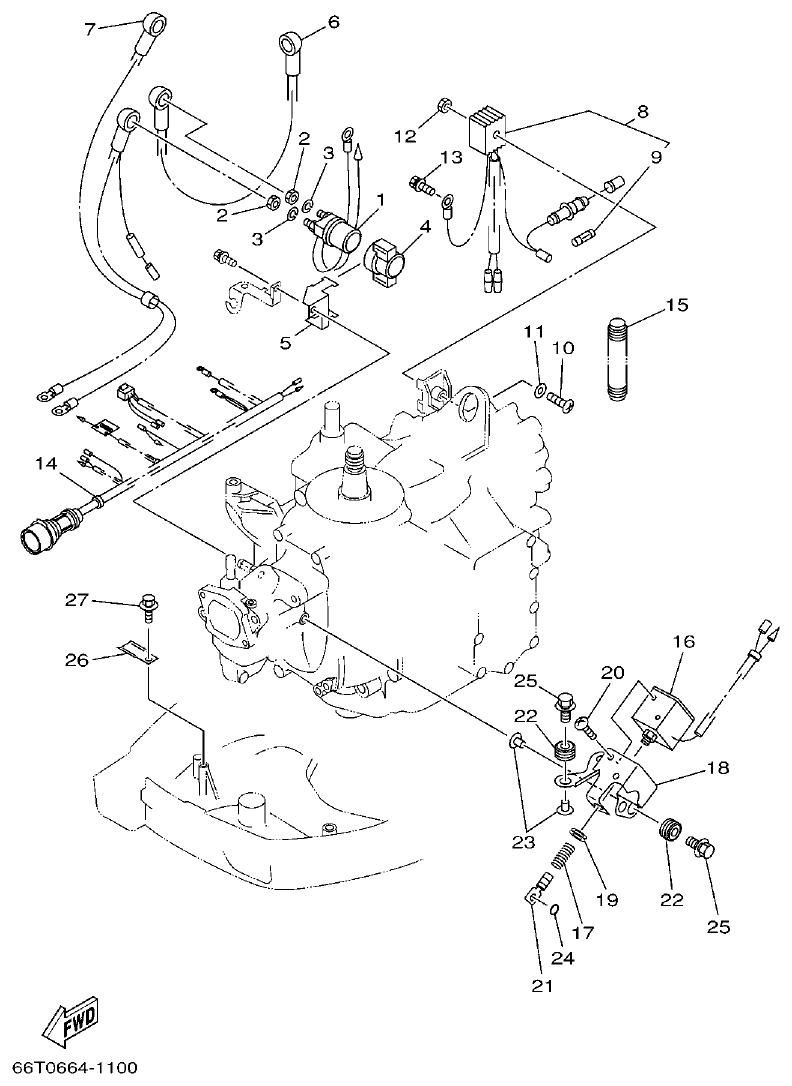

Yamaha 40XMH, 40XW Section 10 Parts Diagram
ELECTRICAL 2
27 catalog rows · 0 linked store rows
Yamaha 40XMH, 40XW ELECTRICAL 2 parts
Yamaha 40XMH, 40XW section 10 covers electrical 2 parts for this outboard catalog. The list includes RELAY, NUT, WASHER, SPRING, HOLDER, RELAY, PLATE, SWITCH FITTING, WIRE, LEAD, WIRE HARNESS, RECTIFIER ASSY. Use the diagram reference numbers with the parts table to identify the correct item.
This section is available as a reference catalog list; contact Marmoom Marine to confirm price and availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 10
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1
|
RELAY
|
Qty 1 | |
|
Ref
2
|
NUT
|
Qty 2 | |
|
Ref
3
|
WASHER, SPRING
|
Qty 2 | |
|
Ref
4
|
HOLDER, RELAY
|
Qty 1 | |
|
Ref
5
|
PLATE, SWITCH FITTING
|
Qty 1 | |
|
Ref
6
|
WIRE, LEAD
|
Qty 1 | |
|
Ref
7
|
WIRE HARNESS
|
Qty 1 | |
|
Ref
8
|
RECTIFIER ASSY
|
Qty 1 | |
|
Ref
9
|
.FUSE (10A)
|
Qty 1 | |
|
Ref
10
|
SCREW, PAN HEAD
|
Qty 1 | |
|
Ref
11
|
WASHER, PLATE
|
Qty 1 | |
|
Ref
12
|
NUT
|
Qty 1 | |
|
Ref
13
|
BOLT
|
Qty 1 | |
|
Ref
14
|
WIRE HARNESS ASSY
|
Qty 1 | |
|
Ref
15
|
TUBE (I.DIA:13MM)
|
Qty 1 | |
|
Ref
16
|
COIL, SOLENOID
|
Qty 1 | |
|
Ref
17
|
WIRE, PULL
|
Qty 1 | |
|
Ref
18
|
STAY, SOLENOID
|
Qty 1 | |
|
Ref
19
|
GROMMET
|
Qty 1 | |
|
Ref
20
|
SCREW, PAN HEAD
|
Qty 4 | |
|
Ref
21
|
HOOK, WIRE PULL
|
Qty 1 | |
|
Ref
22
|
GROMMET
|
Qty 3 | |
|
Ref
23
|
COLLAR
|
Qty 3 | |
|
Ref
24
|
O-RING
|
Qty 1 | |
|
Ref
25
|
BOLT, WITH WASHER
|
Qty 3 | |
|
Ref
26
|
CLAMP
|
Qty 1 | |
|
Ref
27
|
BOLT
|
Qty 1 |
