Yamaha 40XMH, 40XW Section 5 Parts Diagram
CARBURETOR
27 catalog rows · 8 linked store rows
Yamaha 40XMH, 40XW CARBURETOR parts

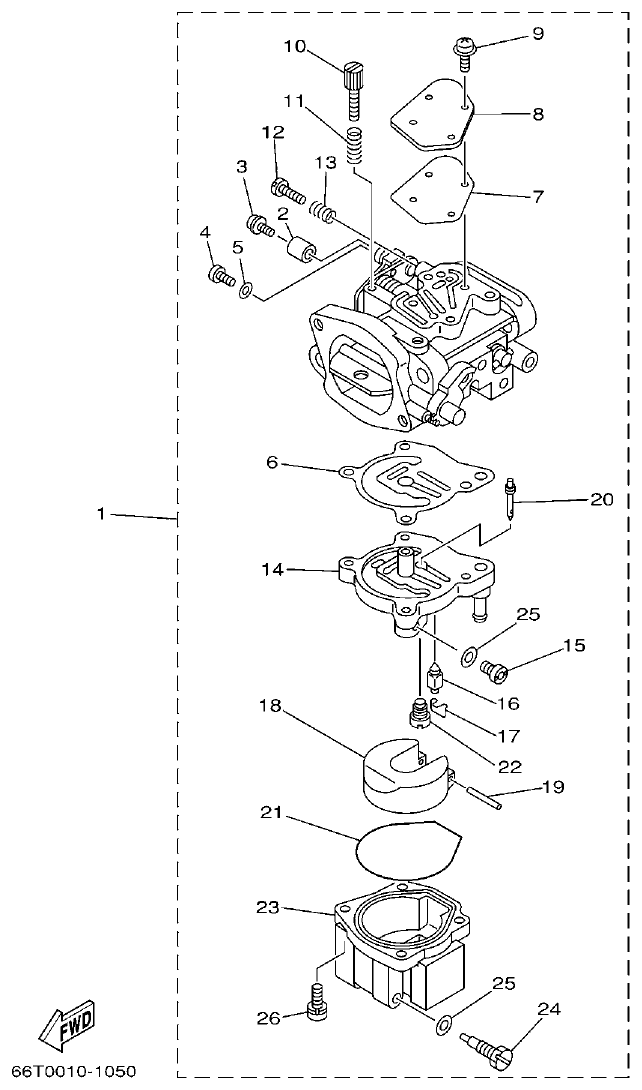

Yamaha 40XMH, 40XW section 5 covers carburetor parts for this outboard catalog. The list includes CARBURETOR ASSY, CARBURETOR ASSY 1, COLLAR, STOPPER, SCREW, WASHER, PLATE, GASKET, FLOAT CHAMBER, GASKET. Use the diagram reference numbers with the parts table to identify the correct item.
8 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 5
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
CARBURETOR ASSY
1
|
1 | |
| 1 |
CARBURETOR ASSY 1
|
1 | |
| 2 |
.COLLAR
1
|
1 | |
| 3 |
.STOPPER
1
|
1 | |
| 4 |
.SCREW
1
|
1 | |
| 5 |
.WASHER, PLATE
1
|
1 | |
| 6 |
.GASKET, FLOAT CHAMBER
1
|
1 | |
| 7 |
.GASKET
1
|
1 | |
| 8 |
.PLATE
1
|
1 | |
| 9 |
.SCREW, WITH WASHER
4
|
4 | |
| 10 |
.SCREW, STOP
1
|
1 | |
| 11 |
.SPRING, THROTTLE
1
|
1 | |
| 12 |
.SCREW, AIR ADJUSTING
1
|
1 | |
| 13 |
.SPRING, AIR ADJUSTING
1
|
1 | |
| 14 |
.SPACER ASSY (#38)
1
|
1 | |
| 15 |
.JET, MAIN (#170)
1
|
1 | |
| 16 |
.VALVE, NEEDLE
1
|
1 | |
| 17 |
.CLIP
1
|
1 | |
| 18 |
.FLOAT
1
|
1 | |
| 19 |
.PIN, FLOAT
1
|
1 | |
| 20 |
.JET, AIR SLOW (#70)
1
|
1 | |
| 21 |
.GASKET, FLOAT CHAMBER
1
|
1 | |
| 22 |
.PLUG
1
|
1 | |
| 23 |
.BODY, FLOAT CHAMBER
1
|
1 | |
| 24 |
.PLUG, DRAIN
1
|
1 | |
| 25 |
.GASKET
2
|
2 | |
| 26 |
.SCREW, WITH WASHER
4
|
4 |
