Yamaha 40XMH, 40XW Section 12 Parts Diagram
BOTTOM COWLING
36 catalog rows · 3 linked store rows
Yamaha 40XMH, 40XW BOTTOM COWLING parts

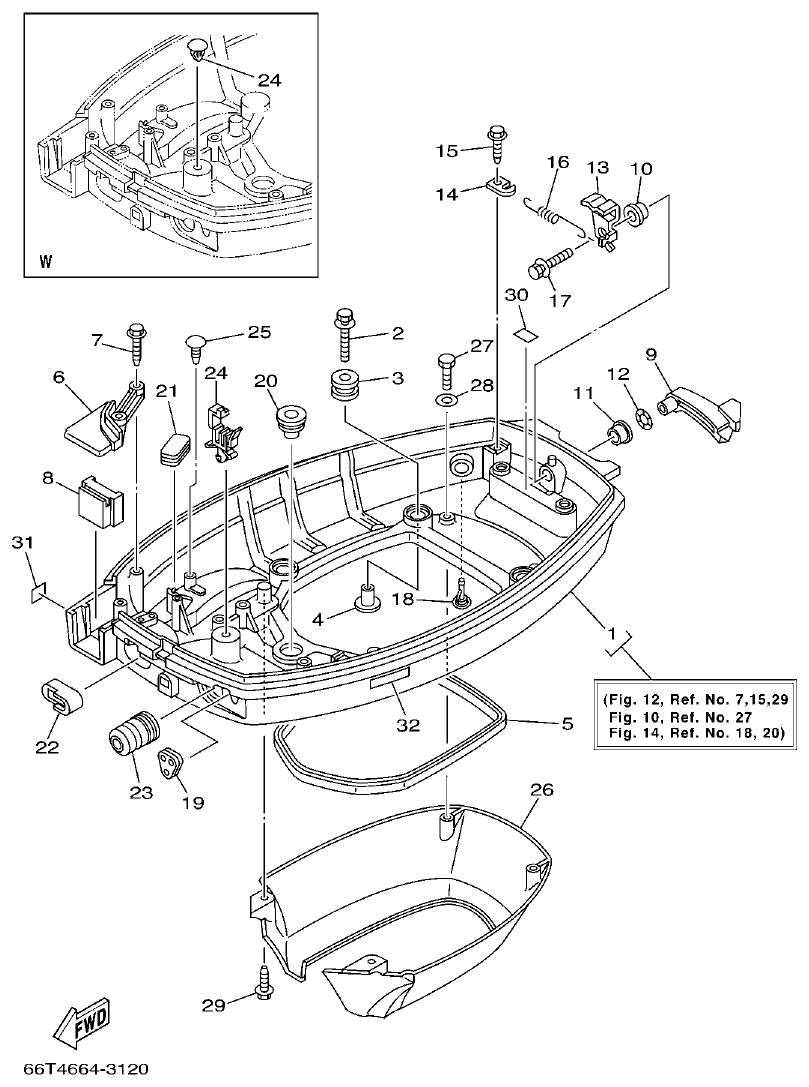

Yamaha 40XMH, 40XW section 12 covers bottom cowling parts for this outboard catalog. The list includes BOTTOM COWLING ASSY, BOLT, WITH WASHER, GROMMET, COLLAR, RUBBER, SEAL, PLATE, FITTING, BOLT, LEVER, CLAMP. Use the diagram reference numbers with the parts table to identify the correct item.
3 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 12
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
BOTTOM COWLING ASSY
1
|
1 | |
| 2 |
BOLT, WITH WASHER
4
|
4 | |
| 3 |
GROMMET
4
|
4 | |
| 4 |
COLLAR
4
|
4 | |
| 5 |
RUBBER, SEAL
1 1
|
1 | |
| 6 |
PLATE, FITTING
1
|
1 | |
| 7 |
BOLT
2
|
2 | |
| 8 |
GROMMET
|
1 | |
| 8 |
GROMMET
|
1 | |
| 9 |
LEVER, CLAMP
1
|
1 | |
| 10 |
BUSH
1
|
1 | |
| 11 |
BUSH
1
|
1 | |
| 12 |
WASHER, WAVE
1
|
1 | |
| 13 |
LEVER, CLAMP
1
|
1 | |
| 14 |
HOOK, SPRING
1
|
1 | |
| 15 |
BOLT
1
|
1 | |
| 16 |
SPRING, TENSION
1
|
1 | |
| 17 |
BOLT, WITH WASHER
1
|
1 | |
| 18 |
NIPPLE, HOSE
1
|
1 | |
| 19 |
GROMMET
|
1 | |
| 19 |
GROMMET
|
1 | |
| 20 |
GROMMET
1
|
1 | |
| 21 |
GROMMET
1
|
1 | |
| 22 |
SEAL
1
|
1 | |
| 23 |
GROMMET
|
1 | |
| 23 |
GROMMET
|
1 | |
| 24 |
PLUG
|
1 | |
| 24 |
CLAMP
|
1 | |
| 25 |
PLUG
1
|
1 | |
| 26 |
APRON
1
|
1 | |
| 27 |
BOLT
2
|
2 | |
| 28 |
WASHER
2
|
2 | |
| 29 |
BOLT
2
|
2 | |
| 30 |
MARK 1
1
|
1 | |
| 31 |
LABEL, CAUTION
1
|
1 | |
| 32 |
PLATE, MARK
1
|
1 |
