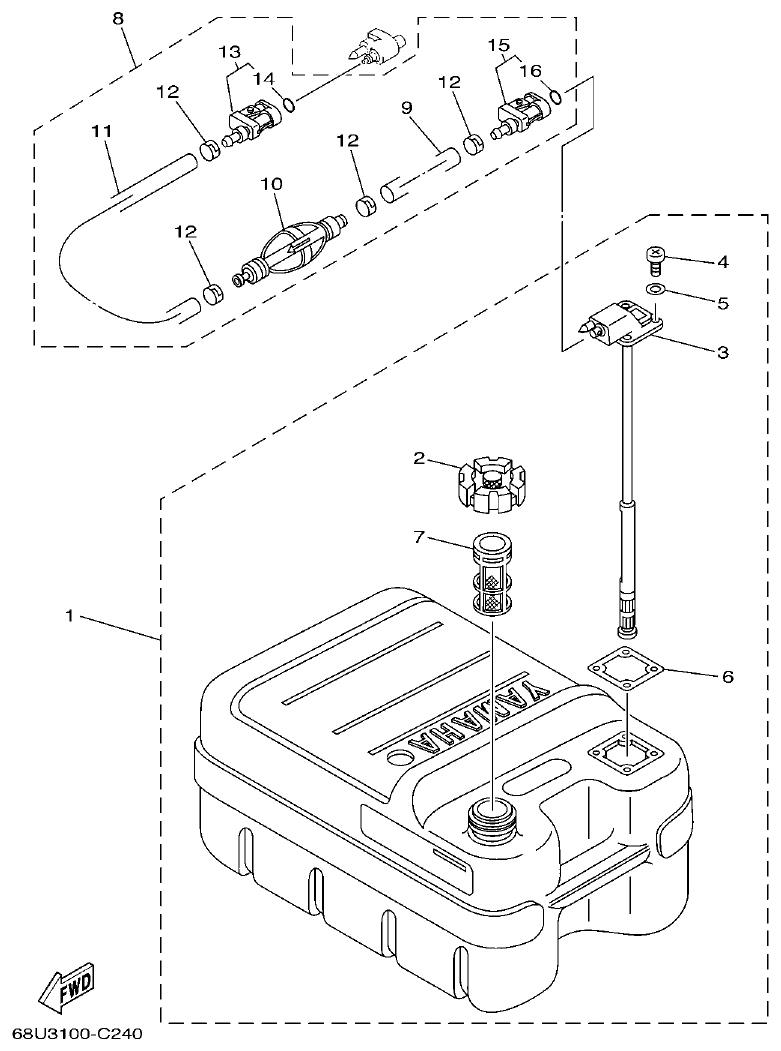

Yamaha 40XMH, 40XW Section 21 Parts Diagram
FUEL TANK
16 catalog rows · 2 linked store rows
Parts list
Section 21
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
FUEL TANK ASSY (24L)
1 AP
|
1 | |
| 2 |
.CAP ASSY
1
|
1 | |
| 3 |
.FUEL METER ASSY
1 WITH INDICATOR
|
1 | |
| 4 |
.SCREW, PAN HEAD
4
|
4 | |
| 5 |
.SEAL
4
|
4 | |
| 6 |
.GASKET, FUEL METER
1
|
1 | |
| 7 |
.STRAINER
1
|
1 | |
| 8 |
FUEL PIPE COMP. 1
1 AP
|
1 | |
| 9 |
.HOSE (L2050)
1
|
1 | |
| 10 |
.PRIMER PUMP ASSY
1
|
1 | |
| 11 |
.HOSE (L850)
1
|
1 | |
| 12 |
.BAND 1
4
|
4 | |
| 13 |
.FUEL PIPE JOINT COMP.
1 1
|
2 | |
| 14 |
..O-RING
1
|
1 | |
| 15 |
.FUEL PIPE JOINT COMP.
1 1
|
2 | |
| 16 |
..O-RING
1
|
1 |
