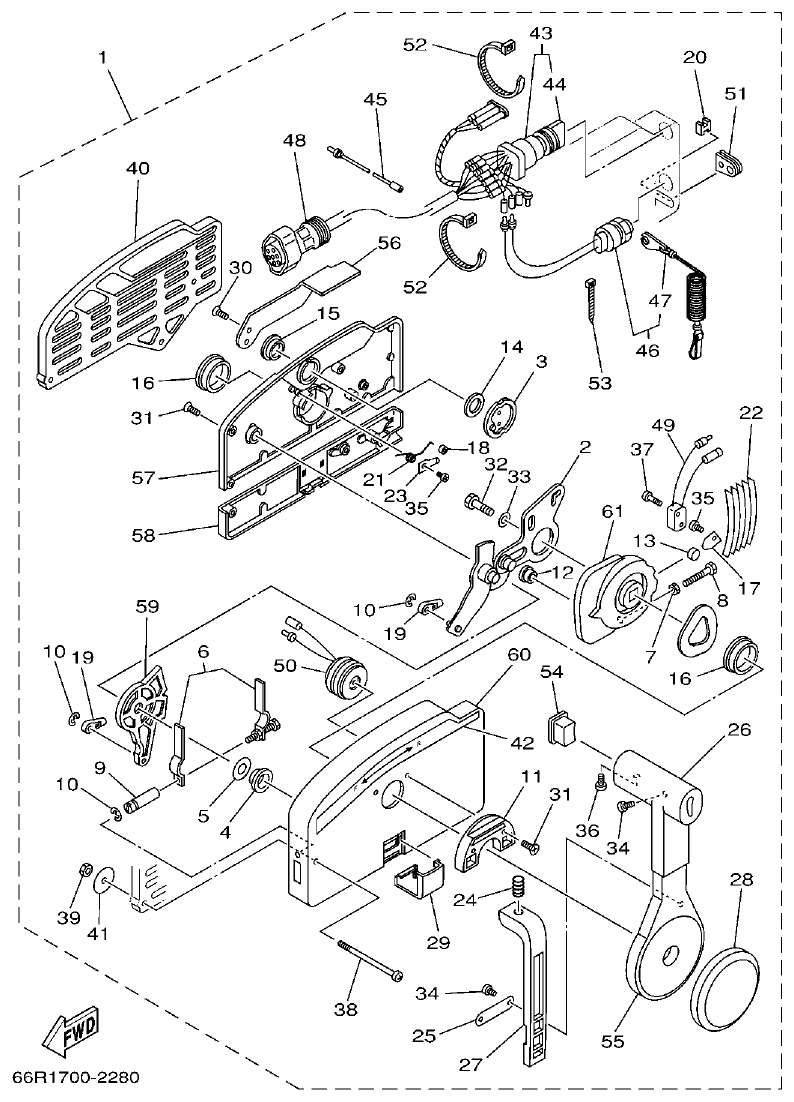

Yamaha 40XMH, 40XW Section 23 Parts Diagram
REMOTE CONTROL ASSY
61 catalog rows · 10 linked store rows
Yamaha 40XMH, 40XW REMOTE CONTROL ASSY parts
Yamaha 40XMH, 40XW section 23 covers remote control assy parts for this outboard catalog. The list includes REMOTE CONTROL ASSY (7P), ARM, THROTTLE, SHAFT, FREE ACCEL., BUSHING, SPACER, THROTTLE, FRICTION, NUT, BOLT. Use the diagram reference numbers with the parts table to identify the correct item.
10 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 23
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
REMOTE CONTROL ASSY (7P)
AP
|
1 | |
| 2 |
.ARM, THROTTLE
|
1 | |
| 3 |
.SHAFT, FREE ACCEL.
|
1 | |
| 4 |
.BUSHING
|
1 | |
| 5 |
.SPACER
|
1 | |
| 6 |
.THROTTLE, FRICTION
|
1 | |
| 7 |
.NUT
|
1 | |
| 8 |
.BOLT
|
1 | |
| 9 |
.SHAFT, FRICTION
|
1 | |
| 10 |
.CIRCLIP
|
3 | |
| 11 |
.PLATE, LOCK
|
1 | |
| 12 |
.ROLLER, CAM
|
1 | |
| 13 |
.ROLLER, FREE ACCEL.
|
1 | |
| 14 |
.WASHER, WAVE
|
1 | |
| 15 |
.BUSHING
|
1 | |
| 16 |
.BUSHING 1
|
2 | |
| 17 |
.RETAINER
|
1 | |
| 18 |
.ROLLER, DETENT
|
1 | |
| 19 |
.CABLE END, REMOTE CONTROL
2
|
2 | |
| 20 |
.ANCHOR, CABLE
|
1 | |
| 21 |
.SPRING, FREE ACCEL.
|
1 | |
| 22 |
.SPRING, DETENT
|
5 | |
| 23 |
.SPACER
|
1 | |
| 24 |
.SPRING, NEUTRAL LOCK
|
1 | |
| 25 |
.PLATE, STOPPER
|
1 | |
| 26 |
.GRIP, CONTROL LEVER
SINGLE
|
1 | |
| 27 |
.LOCK, NEUTRAL
|
1 | |
| 28 |
.COVER
|
1 | |
| 29 |
.COVER, LEAD
|
1 | |
| 30 |
.SCREW
|
2 | |
| 31 |
.SCREW
|
7 | |
| 32 |
.BOLT
|
1 | |
| 33 |
.WASHER, PLATE
|
1 | |
| 34 |
.SCREW, PAN HEAD
|
3 | |
| 35 |
.SCREW, PAN HEAD
|
2 | |
| 36 |
.SCREW, PAN HEAD
|
1 | |
| 37 |
.SCREW, PAN HEAD
|
2 | |
| 38 |
.SCREW (M6)
|
3 | |
| 39 |
.NUT, HEXAGON
|
3 | |
| 40 |
.SPACER, REMOTE CONTROL
SINGLE
|
1 | |
| 41 |
.WASHER
|
3 | |
| 42 |
.GRAPHIC
|
1 | |
| 43 |
.MAIN SWITCH ASSY
|
1 | |
| 44 |
..CAP, KEY
|
1 | |
| 45 |
.WIRE, LEAD
|
1 | |
| 46 |
.ENGINE STOP SWITCH ASSY
|
1 | |
| 47 |
..STOPPER
|
1 | |
| 48 |
.EXTENSION, WIRE HARNESS
L:5M (7P)
|
1 | |
| 49 |
.NEUTRAL SWITCH ASSY
|
1 | |
| 50 |
.BUZZER
|
1 | |
| 51 |
.GROMMET
|
1 | |
| 52 |
.BAND
|
1 | |
| 53 |
.BAND
|
1 | |
| 54 |
.COVER, CONTROL LEVER
WITHOUT PT/T SW.
|
1 | |
| 55 |
.LEVER, CONTROL
|
1 | |
| 56 |
.KNOB, FREE ACCEL.
|
1 | |
| 57 |
.BACK PLATE
1
|
1 | |
| 58 |
.BACK PLATE
1
|
2 | |
| 59 |
.ARM, SHIFT
|
1 | |
| 60 |
.HOUSING,1
|
1 | |
| 61 |
.GEAR
|
1 |
