Yamaha 40XMH, 40XW Section 8 Parts Diagram
GENERATOR
28 catalog rows · 5 linked store rows
Yamaha 40XMH, 40XW GENERATOR parts

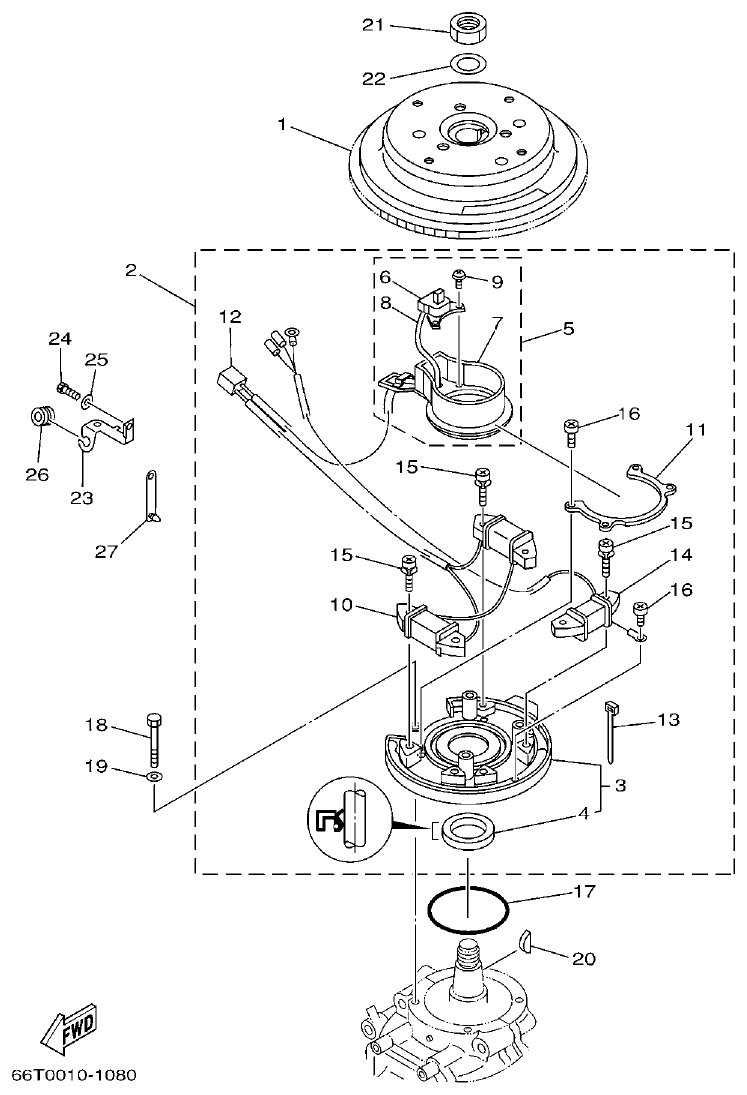

Yamaha 40XMH, 40XW section 8 covers generator parts for this outboard catalog. The list includes ROTOR ASSY, BASE ASSY, BASE, MAGNETO, OIL SEAL, PULSER COIL ASSY, COIL, PULSER 1, ATTACHMENT, PULSER, LEAD WIRE ASSY. Use the diagram reference numbers with the parts table to identify the correct item.
5 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 8
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
ROTOR ASSY
|
1 | |
| 1 |
ROTOR ASSY
|
1 | |
| 2 |
BASE ASSY
1
|
1 | |
| 3 |
.BASE, MAGNETO
1
|
1 | |
| 4 |
..OIL SEAL
1
|
1 | |
| 5 |
.PULSER COIL ASSY
1
|
1 | |
| 6 |
..COIL, PULSER 1
1
|
1 | |
| 7 |
..ATTACHMENT, PULSER
1
|
1 | |
| 8 |
..LEAD WIRE ASSY
1
|
1 | |
| 9 |
..SCREW, WITH WASHER
2
|
2 | |
| 10 |
.COIL, CHARGE
1
|
1 | |
| 11 |
.RETAINER, MAGNETO BASE
1
|
1 | |
| 12 |
.CONNECTOR
1
|
1 | |
| 13 |
.CLAMP
1
|
1 | |
| 14 |
.COIL, LIGHTING
1
|
1 | |
| 15 |
.SCREW, WITH WASHER
6
|
6 | |
| 16 |
.SCREW, PAN HEAD
5
|
5 | |
| 17 |
O-RING
1
|
1 | |
| 18 |
BOLT
4
|
4 | |
| 19 |
WASHER
4
|
4 | |
| 20 |
KEY, WOODRUFF
1
|
1 | |
| 21 |
NUT
1
|
1 | |
| 22 |
WASHER, PLATE
1
|
1 | |
| 23 |
CLAMP
1
|
1 | |
| 24 |
BOLT
1
|
1 | |
| 25 |
WASHER
1
|
1 | |
| 26 |
GROMMET
1
|
1 | |
| 27 |
CLAMP
1
|
1 |
