Yamaha 40XMH, 40XW Section 17 Parts Diagram
BRACKET 2
28 catalog rows · 1 linked store rows
Yamaha 40XMH, 40XW BRACKET 2 parts

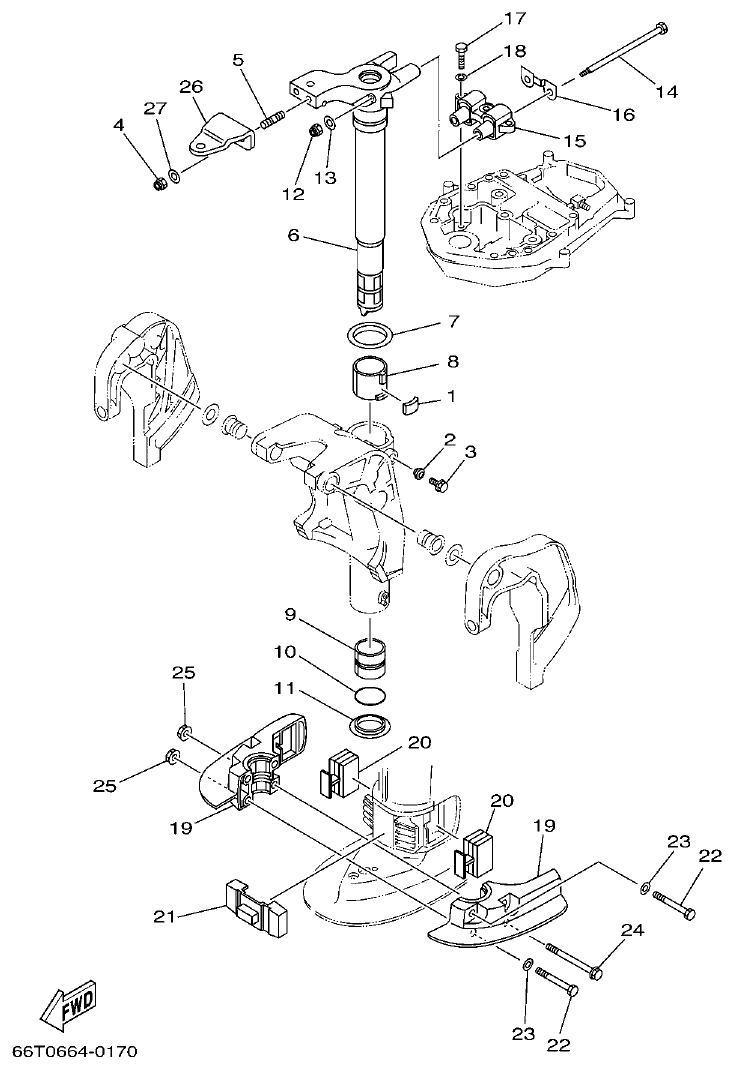

Yamaha 40XMH, 40XW section 17 covers bracket 2 parts for this outboard catalog. The list includes PLATE, FRICTION, SEAL, DAMPER, BOLT, FLANGE, NUT, SELF-LOCKING, BOLT, STUD, BRACKET, STEERING, WASHER, BUSH. Use the diagram reference numbers with the parts table to identify the correct item.
1 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
Parts list
Section 17
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1
|
PLATE, FRICTION
1
|
Qty 1 | |
|
Ref
2
|
SEAL, DAMPER
1
|
Qty 1 | |
|
Ref
3
|
BOLT, FLANGE
1
|
Qty 1 | |
|
Ref
4
|
NUT, SELF-LOCKING
2
|
Qty 2 | |
|
Ref
5
|
BOLT, STUD
2
|
Qty 2 | |
|
Ref
6
|
BRACKET, STEERING
S
|
Qty 1 | |
|
Ref
6
|
BRACKET, STEERING
1 L
|
Qty 1 | |
|
Ref
7
|
WASHER
1
|
Qty 1 | |
|
Ref
8
|
BUSH
1
|
Qty 1 | |
|
Ref
9
|
BUSH
1
|
Qty 1 | |
|
Ref
10
|
O-RING
1
|
Qty 1 | |
|
Ref
11
|
BUSH
1
|
Qty 1 | |
|
Ref
12
|
NUT, SELF-LOCKING
2
|
Qty 2 | |
|
Ref
13
|
WASHER
2
|
Qty 2 | |
|
Ref
14
|
BOLT
2
|
Qty 2 | |
|
Ref
15
|
MOUNT DAMPER, UPPER SIDE
1
|
Qty 1 | |
|
Ref
16
|
PLATE
1
|
Qty 1 | |
|
Ref
17
|
BOLT
3
|
Qty 3 | |
|
Ref
18
|
WASHER
3
|
Qty 3 | |
|
Ref
19
|
HOUSING, LOWER MOUNT RUBBER
2
|
Qty 2 | |
|
Ref
20
|
MOUNT DAMPER, LOWER SIDE
2
|
Qty 2 | |
|
Ref
21
|
DAMPER, LOWER MOUNT RUBBER
1
|
Qty 1 | |
|
Ref
22
|
BOLT
2
|
Qty 2 | |
|
Ref
23
|
WASHER
2
|
Qty 2 | |
|
Ref
24
|
BOLT, WITH WASHER
2
|
Qty 2 | |
|
Ref
25
|
NUT
4
|
Qty 4 | |
|
Ref
26
|
HOOK, STEERING
|
Qty 1 | |
|
Ref
27
|
WASHER, PLATE
|
Qty 2 |
