Section 24: BOTTOM COWLING 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

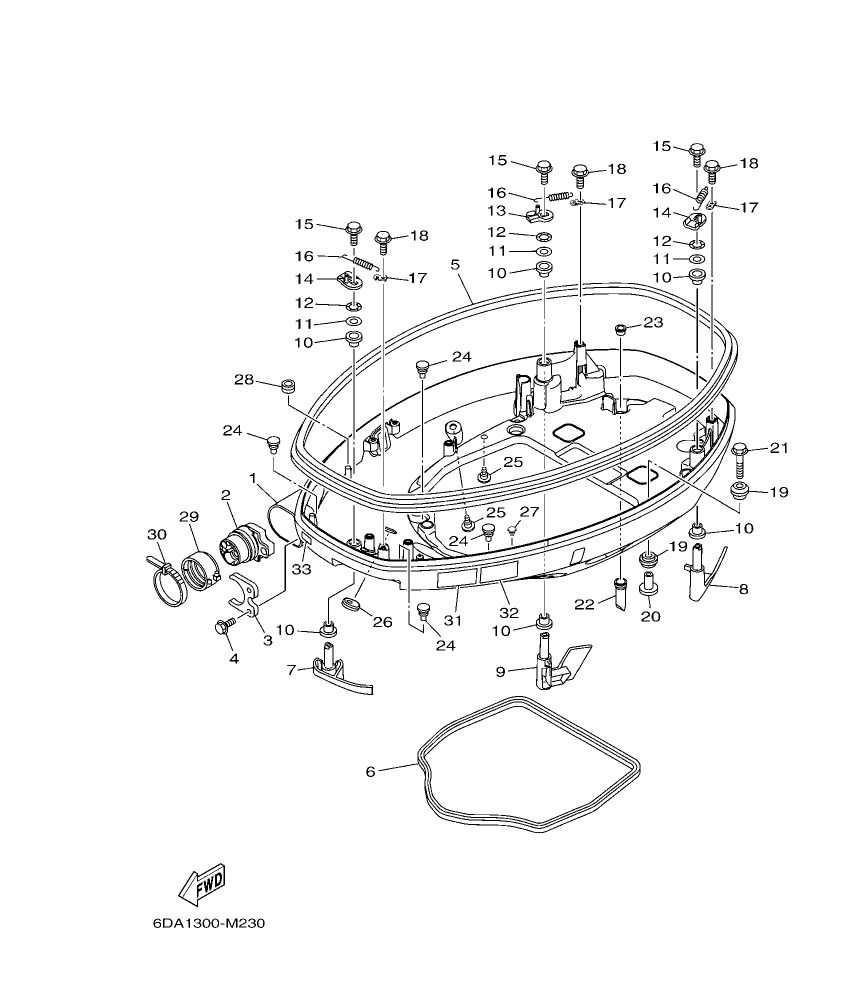

Diagram for section 24: BOTTOM COWLING 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6DA–42710–00–8D
BOTTOM COWLING ASSY
|
1 | Ask on WhatsApp |
| 2 |
6DA–42725–00
GROMMET
|
1 | Ask on WhatsApp |
| 3 |
6CB–42761–00
STOPPER
|
1 | Ask on WhatsApp |
| 4 |
95895–06014
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 5 |
6DA–42615–00
SEAL
|
1 | Ask on WhatsApp |
| 6 |
63P–42716–00
RUBBER, SEAL 1
|
1 | Ask on WhatsApp |
| 7 |
6DA–42815–00–8D
LEVER, CLAMP
|
1 | Ask on WhatsApp |
| 8 |
6DA–42816–00–8D
LEVER, CLAMP
|
1 | Ask on WhatsApp |
| 9 |
6DA–42817–00–8D
LEVER, CLAMP
|
1 | Ask on WhatsApp |
| 10 |
90386–15M73
BUSH
|
6 | Ask on WhatsApp |
| 11 |
90201–156J2
WASHER, PLATE
|
3 | Ask on WhatsApp |
| 12 |
90206–15M18
WASHER, WAVE
|
3 | Ask on WhatsApp |
| 13 |
6CB–42818–00
LEVER, CLAMP
|
1 | Ask on WhatsApp |
| 14 |
6CB–42819–00
LEVER, CLAMP
|
2 | Ask on WhatsApp |
| 15 |
95880–08012
BOLT, FLANGE
|
3 | Ask on WhatsApp |
| 16 |
90506–22001
SPRING, TENSION
|
3 | Ask on WhatsApp |
| 17 |
66T–43144–00
HOOK, SPRING
|
3 | Ask on WhatsApp |
| 18 |
95895–06012
BOLT, FLANGE
|
3 | Ask on WhatsApp |
| 19 |
90480–22M81
GROMMET
|
8 | Ask on WhatsApp |
| 20 |
90387–08M37
COLLAR
|
4 | Ask on WhatsApp |
| 21 |
90119–08M22
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 22 |
6DA–42717–00
RUBBER, SEAL 2
|
4 | Ask on WhatsApp |
| 23 |
6DA–42384–00
SEAL, CAP
|
4 | Ask on WhatsApp |
| 24 |
6H4–42748–00
GROMMET
|
4 | Ask on WhatsApp |
| 25 |
6P2–44391–00
NIPPLE, HOSE
|
2 | Ask on WhatsApp |
| 26 |
61A–42727–00
GROMMET
|
1 | Ask on WhatsApp |
| 27 |
90269–07003
RIVET
|
1 | Ask on WhatsApp |
| 28 |
90480–13163
GROMMET
|
1 | Ask on WhatsApp |
| 29 |
68F–42753–00
FASTNER
|
1 | Ask on WhatsApp |
| 30 |
90464–20258
CLAMP
|
1 | Ask on WhatsApp |
| 31 |
6AH–42794–40
LABEL, WARNING (GENERAL)
|
1 | Ask on WhatsApp |
| 32 |
6AH–42794–50
LABEL, WARNING (GENERAL)
|
1 | Ask on WhatsApp |
| 33 |
6AH–81996–00
MARK
|
1 | Ask on WhatsApp |
