F175AET
Section 3: CYLINDER & CRANKCASE 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

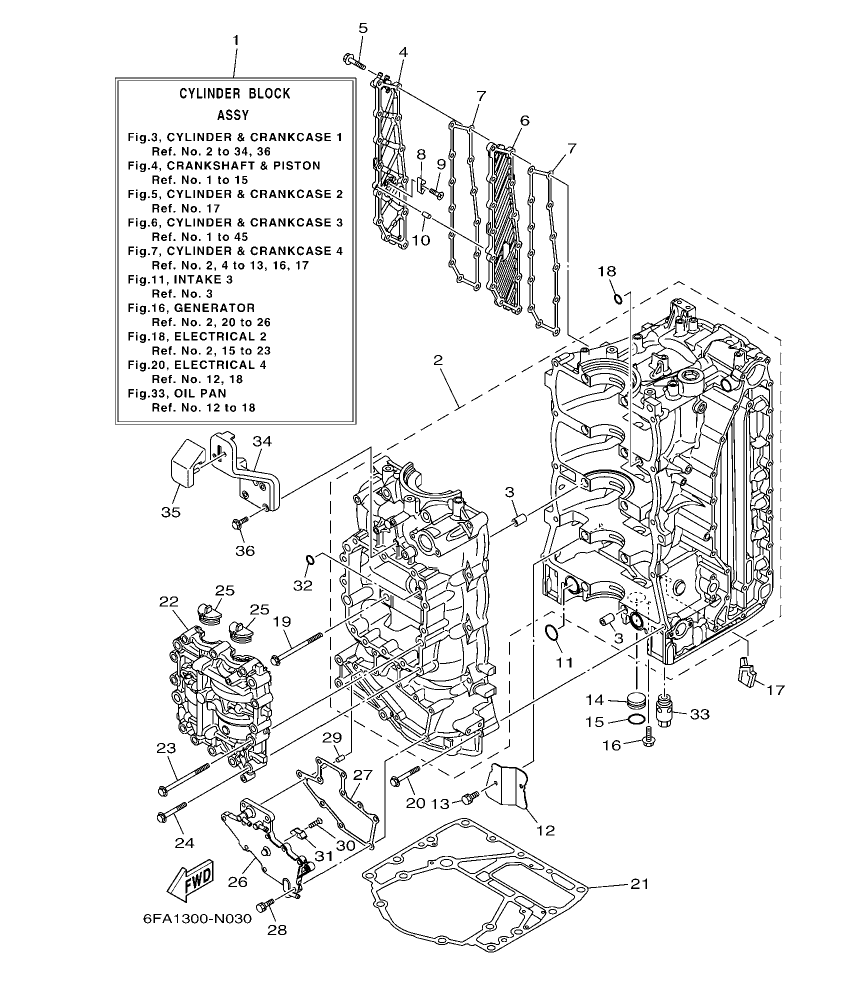

Diagram for section 3: CYLINDER & CRANKCASE 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6FA–W009B–00–9S
CYLINDER BLOCK ASSY
|
1 | Ask on WhatsApp |
| 2 |
6DA–15109–00–9S
CRANKCASE ASSY
|
1 | Ask on WhatsApp |
| 3 |
91814–18002
.PIN, DOWEL
|
10 | Ask on WhatsApp |
| 4 |
6DA–15414–00–9S
COVER, AIR CLEANER
|
1 | Ask on WhatsApp |
| 5 |
90105–06028
BOLT, FLANGE
|
13 | Ask on WhatsApp |
| 6 |
6DA–15423–00–9S
COVER 2
|
1 | Ask on WhatsApp |
| 7 |
6DA–15353–00
GASKET, DRAIN
|
2 | Ask on WhatsApp |
| 8 |
6E5–11325–00
ANODE
|
1 | Ask on WhatsApp |
| 9 |
98780–04016
SCREW, FLAT HEAD
|
1 | Ask on WhatsApp |
| 10 |
91690–40010
PIN, SPRING
|
1 | Ask on WhatsApp |
| 11 |
93210–25552
O-RING
|
2 | Ask on WhatsApp |
| 12 |
6DA–15412–00
COVER, OIL PUMP
|
1 | Ask on WhatsApp |
| 13 |
90119–06023
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 14 |
90338–25004
PLUG
|
1 | Ask on WhatsApp |
| 15 |
93210–25647
O-RING
|
1 | Ask on WhatsApp |
| 16 |
90119–06M81
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 17 |
6DA–14664–00
GROMMET, WATER SHUT
|
1 | Ask on WhatsApp |
| 18 |
93210–12648
O-RING
|
1 | Ask on WhatsApp |
| 19 |
90105–10406
BOLT, FLANGE
|
10 | Ask on WhatsApp |
| 20 |
90119–08M66
BOLT, WITH WASHER
|
10 | Ask on WhatsApp |
| 21 |
63P–11351–01
GASKET, CYLINDER
|
1 | Ask on WhatsApp |
| 22 |
6DA–11500–00
BALANCER ASSY
|
1 | Ask on WhatsApp |
| 23 |
90105–10406
BOLT, FLANGE
|
4 | Ask on WhatsApp |
| 24 |
90105–08175
BOLT, FLANGE
|
12 | Ask on WhatsApp |
| 25 |
63P–11512–00
SEAL, CRANK COVER
|
2 | Ask on WhatsApp |
| 26 |
6DA–15411–00–9S
COVER, CRANKCASE 1
|
1 | Ask on WhatsApp |
| 27 |
6DA–15451–00
GASKET, CRANKCASE COVER 1
|
1 | Ask on WhatsApp |
| 28 |
90119–06MA3
BOLT, WITH WASHER
|
10 | Ask on WhatsApp |
| 29 |
91690–40010
PIN, SPRING
|
1 | Ask on WhatsApp |
| 30 |
98780–04016
SCREW, FLAT HEAD
|
1 | Ask on WhatsApp |
| 31 |
6E5–11325–00
ANODE
|
1 | Ask on WhatsApp |
| 32 |
93210–08001
O-RING
|
1 | Ask on WhatsApp |
| 33 |
63P–13490–00
RELIEF VALVE ASSY
|
1 | Ask on WhatsApp |
| 34 |
6DA–42744–00
STAY
|
1 | Ask on WhatsApp |
| 35 |
6DA–42662–00
DAMPER
|
1 | Ask on WhatsApp |
| 36 |
90105–06196
BOLT, FLANGE
|
3 | Ask on WhatsApp |
