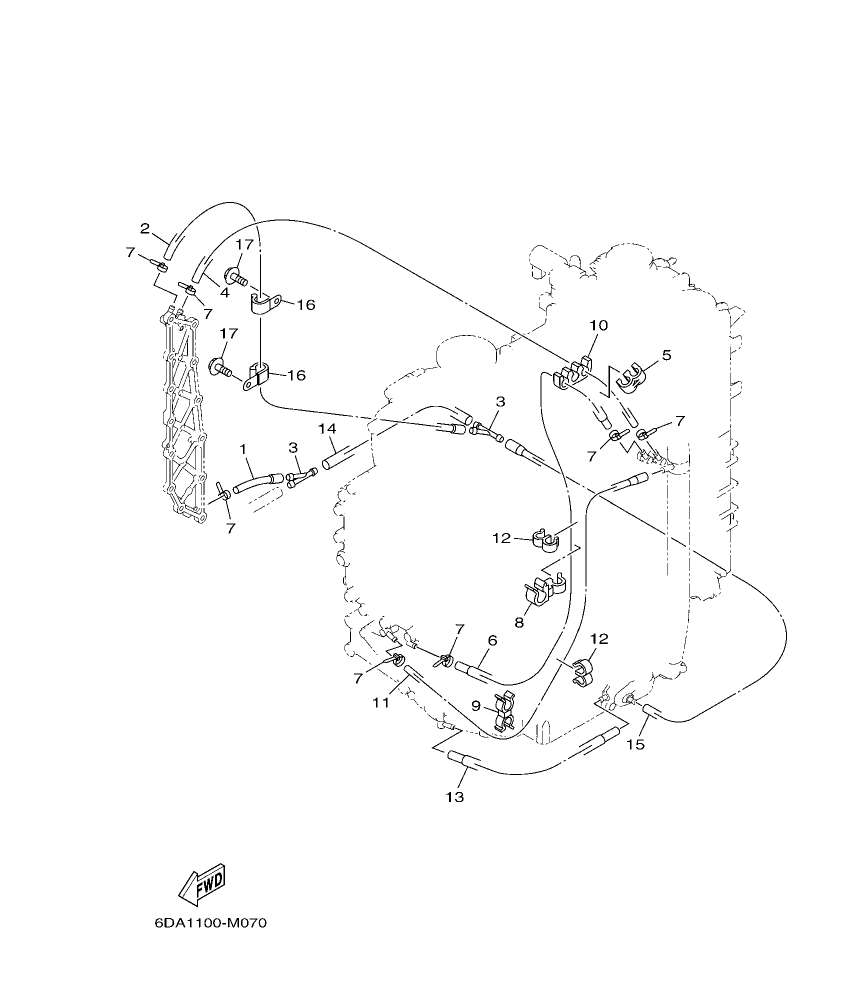

F175AET – section 7 CYLINDER & CRANKCASE 4 parts diagram

Diagram for section 7: CYLINDER & CRANKCASE 4.

Ref Part No. Qty Buy
1
6DA–12576–00
HOSE 1
 1 Ask on WhatsApp
2
6DA–12589–00
HOSE 6
 1 Ask on WhatsApp
3
6CE–24377–00
PIPE, JOINT 2
 2 Ask on WhatsApp
4
90445–09008
HOSE (L470)
 1 Ask on WhatsApp
5
90464–09M21
CLAMP
 1 Ask on WhatsApp
6
6DA–12578–00
HOSE 3
 1 Ask on WhatsApp
7
90465–11M10
CLAMP
 7 Ask on WhatsApp
8
90464–12010
CLAMP
 1 Ask on WhatsApp
9
90464–09142
CLAMP
 1 Ask on WhatsApp
10
90464–09020
CLAMP
 1 Ask on WhatsApp
11
6DA–12579–00
HOSE 4
 1 Ask on WhatsApp
12
90464–09M31
CLAMP
 2 Ask on WhatsApp
13
6DA–12552–00
HOSE 8
 1 Ask on WhatsApp
14
90445–10057
HOSE (L170)
 1 Ask on WhatsApp
15
6DA–12589–00
HOSE 6
 1 Ask on WhatsApp
16
90465–08M83
CLAMP
 2 Ask on WhatsApp
17
95895–06012
BOLT, FLANGE
 2 Ask on WhatsApp
