F175AET

Section 38: OPTIONAL PARTS 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

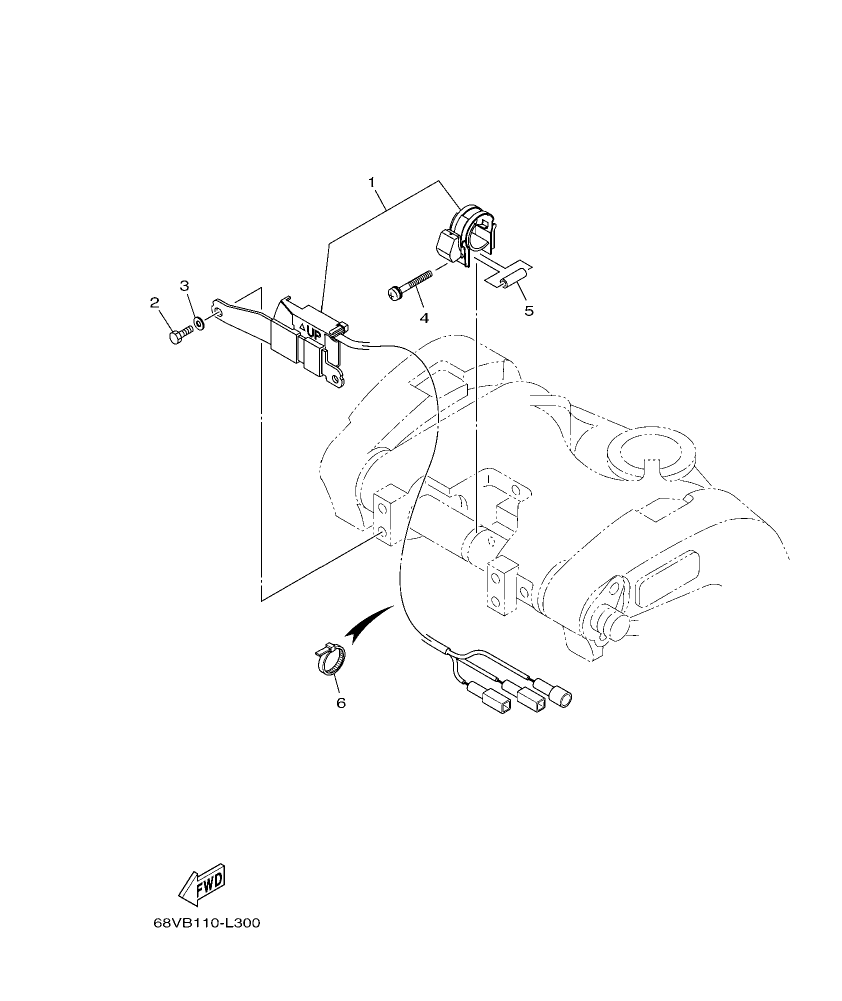

F175AET – section 38 OPTIONAL PARTS 2 parts diagram

Diagram for section 38: OPTIONAL PARTS 2.

Ref Part No. Qty Buy
1
63P–825E0–01
TILT LIMIT SWITCH ASSY
 1 Ask on WhatsApp
2
97095–06016
BOLT
 2 Ask on WhatsApp
3
92995–06600
WASHER
 2 Ask on WhatsApp
4
90159–05059
SCREW, WITH WASHER
 1 Ask on WhatsApp
5
90387–05004
COLLAR
 1 Ask on WhatsApp
6
90465–11M10
CLAMP
 5 Ask on WhatsApp
