Section 33: OIL PAN (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1
F175AET – section 33 OIL PAN parts diagram

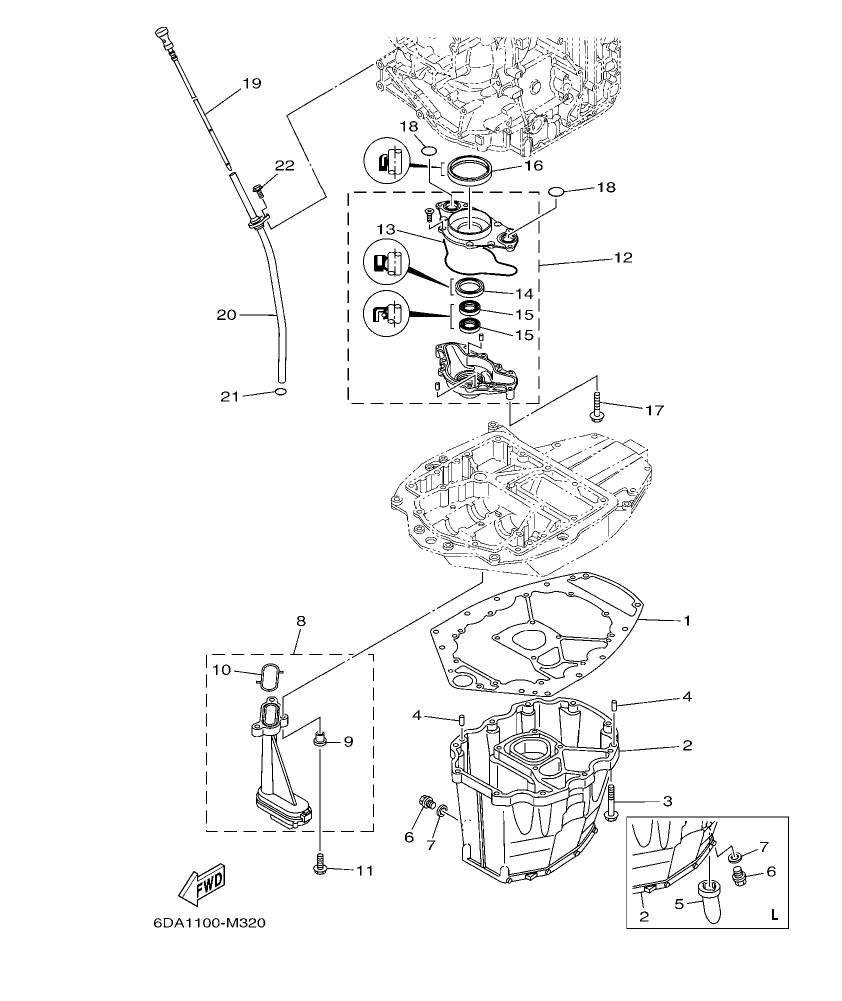

Diagram for section 33: OIL PAN.

Ref Part No. Qty Buy
1
63P–15312–01
GASKET, OIL PAN
 1 Ask on WhatsApp
2
63P–15311–02–CA
OIL PAN
 1 Ask on WhatsApp
2
6DA–15311–00–CA
OIL PAN
 1 Ask on WhatsApp
3
97575–08535
BOLT, WITH WASHER
 10 Ask on WhatsApp
4
93608–16M16
PIN, DOWEL
 2 Ask on WhatsApp
5
63P–15316–00
DAMPER 1
 1 Ask on WhatsApp
6
90340–14M06
PLUG, STRAIGHT SCREW
 1 Ask on WhatsApp
7
90430–14M09
GASKET
 1 Ask on WhatsApp
8
63P–13411–00
STRAINER, OIL
 1 Ask on WhatsApp
9
90387–06263
.COLLAR
 3 Ask on WhatsApp
10
63P–13415–00
.SEAL, OIL STRAINER
 1 Ask on WhatsApp
11
95812–06025
BOLT, FLANGE
 3 Ask on WhatsApp
12
6DA–13300–00
OIL PUMP ASSY
 1 Ask on WhatsApp
13
6DA–13329–00
.GASKET, PUMP COVER
 1 Ask on WhatsApp
14
6AW–13119–00
.OIL SEAL
 1 Ask on WhatsApp
15
69J–13631–00
.OIL SEAL
 2 Ask on WhatsApp
16
6CB–11355–00
SEAL, CYLINDER 1
 1 Ask on WhatsApp
17
97575–06540
BOLT, WITH WASHER
 4 Ask on WhatsApp
18
93210–25552
O-RING
 2 Ask on WhatsApp
19
6DA–15362–00
PLUG, OIL LEVEL
 1 Ask on WhatsApp
20
6DA–15377–00
GUIDE, INLET
 1 Ask on WhatsApp
21
93210–19MJ3
O-RING
 1 Ask on WhatsApp
22
95895–06016
BOLT, FLANGE
 1 Ask on WhatsApp
