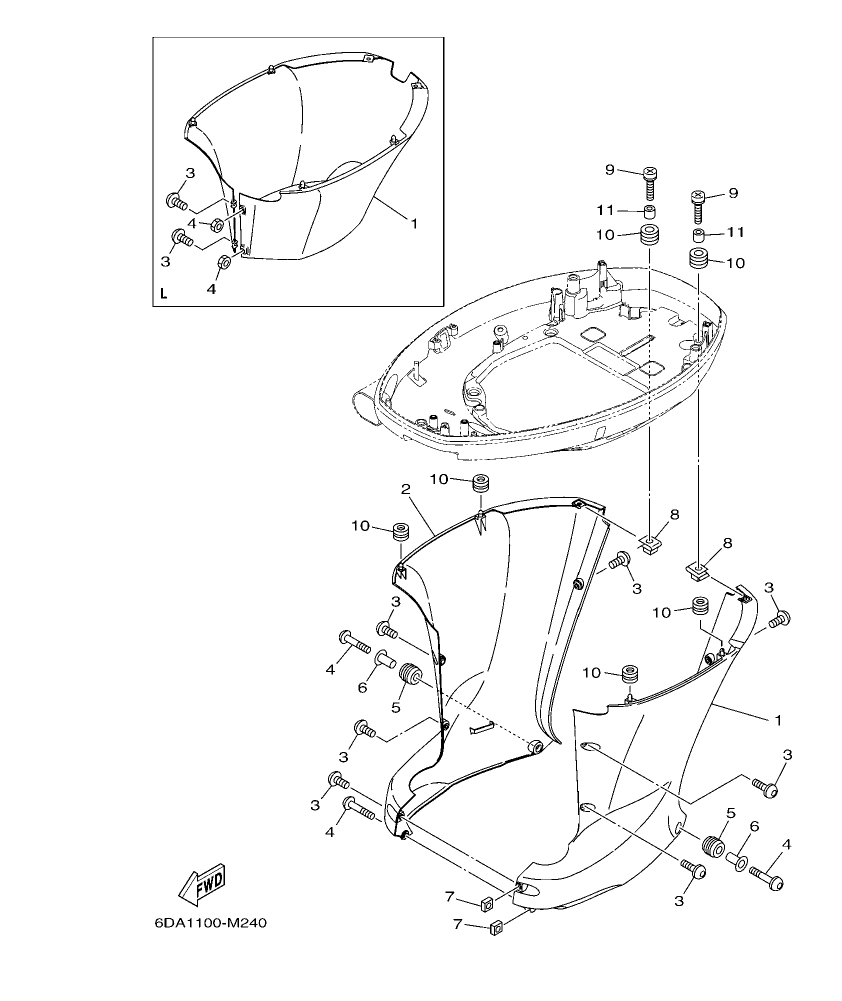

F175AET – section 25 BOTTOM COWLING 2 parts diagram

Diagram for section 25: BOTTOM COWLING 2.

Ref Part No. Qty Buy
1
6DA–42740–00
APRON COMPLETE 1
 1 Ask on WhatsApp
1
6DA–42741–10–8D
APRON
 1 Ask on WhatsApp
2
6DA–42770–00
APRON COMPLETE 2
 1 Ask on WhatsApp
3
90111–06144
BOLT,HEX. SOCKET BUTTON
 7 Ask on WhatsApp
3
90159–06M28
SCREW, WITH WASHER
 2 Ask on WhatsApp
4
90111–06142
BOLT,HEX. SOCKET BUTTON
 3 Ask on WhatsApp
4
95380–06600
NUT, HEXAGON
 2 Ask on WhatsApp
5
90480–16009
GROMMET
 2 Ask on WhatsApp
6
90387–07028
COLLAR
 2 Ask on WhatsApp
7
90173–06001
NUT, SQUARE
 2 Ask on WhatsApp
8
90183–061A6
NUT, SPRING
 2 Ask on WhatsApp
9
90159–06053
SCREW, WITH WASHER
 2 Ask on WhatsApp
10
90480–13M24
GROMMET
 6 Ask on WhatsApp
11
90387–06M43
COLLAR
 2 Ask on WhatsApp
