Section 30: POWER TRIM & TILT ASSY 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

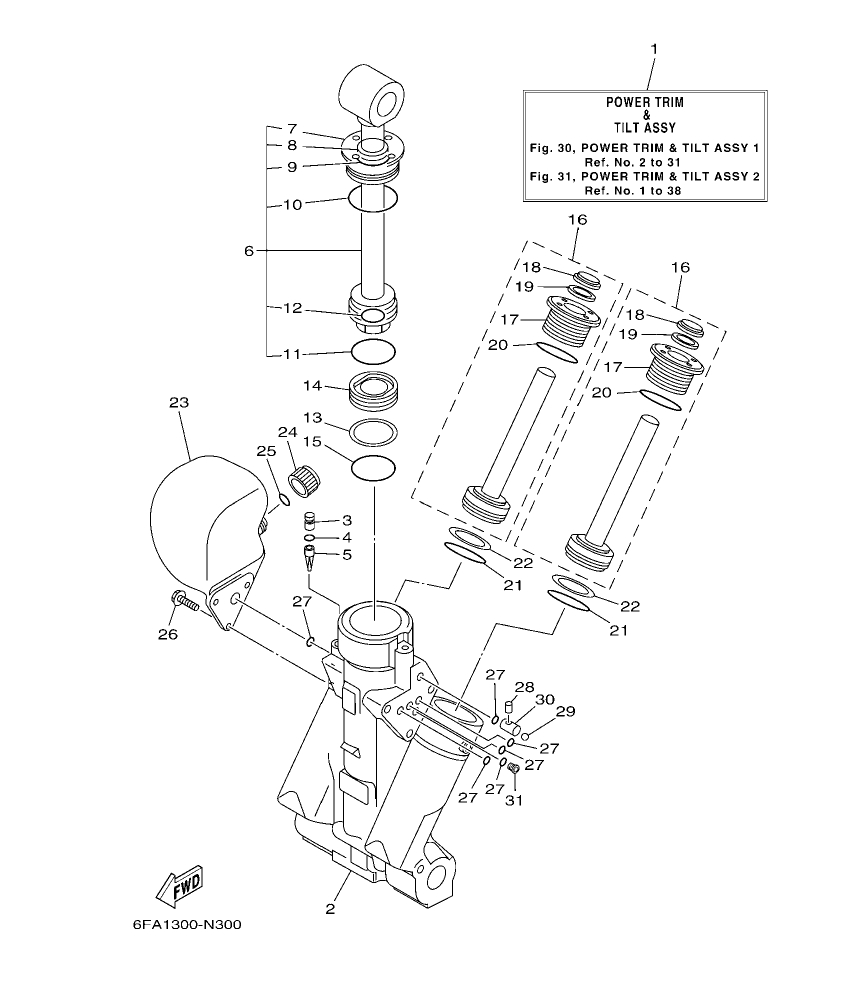

Diagram for section 30: POWER TRIM & TILT ASSY 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
63P–43800–06
POWER TRIM & TILT ASSY
|
1 | Ask on WhatsApp |
| 2 |
64E–43825–03
HOUSING, TRIM & TILT
|
1 | Ask on WhatsApp |
| 3 |
6AW–4388J–00
PLUG 2
|
1 | Ask on WhatsApp |
| 4 |
93210–10M74
O-RING
|
1 | Ask on WhatsApp |
| 5 |
64E–43817–00
FILTER 2
|
1 | Ask on WhatsApp |
| 6 |
63P–43810–02
TILT PISTON SUB ASSY
|
1 | Ask on WhatsApp |
| 7 |
64E–43811–02
.SCREW, CYLINDER END
|
1 | Ask on WhatsApp |
| 8 |
64E–43898–00
.SEAL, DUST 2
|
1 | Ask on WhatsApp |
| 9 |
64E–43867–00
.O-RING
|
1 | Ask on WhatsApp |
| 10 |
64E–43866–00
.O-RING
|
1 | Ask on WhatsApp |
| 11 |
6E5–43862–00
.O-RING
|
1 | Ask on WhatsApp |
| 12 |
64E–43883–00
.O-RING
|
1 | Ask on WhatsApp |
| 13 |
6E5–43872–00
RING, BACK UP
|
1 | Ask on WhatsApp |
| 14 |
6E5–43814–02
PISTON, FREE
|
1 | Ask on WhatsApp |
| 15 |
6E5–43862–00
O-RING
|
1 | Ask on WhatsApp |
| 16 |
64E–43820–03
TRIM PISTON SUB ASSY
|
2 | Ask on WhatsApp |
| 17 |
64E–43821–03
.SCREW, TRIM CYLINDER END
|
1 | Ask on WhatsApp |
| 18 |
64E–43822–00
.SEAL, TRIM DUST
|
1 | Ask on WhatsApp |
| 19 |
64E–4384J–00
.SEAL, TRIM DOWN
|
1 | Ask on WhatsApp |
| 20 |
6G5–43864–00
.O-RING
|
1 | Ask on WhatsApp |
| 21 |
6E5–43864–00
O-RING
|
2 | Ask on WhatsApp |
| 22 |
6E5–43874–01
RING, BACK UP
|
2 | Ask on WhatsApp |
| 23 |
64E–43828–01
BODY, RESERVOIR
|
1 | Ask on WhatsApp |
| 24 |
64E–43829–01
PLUG, RESERVOIR
|
1 | Ask on WhatsApp |
| 25 |
64E–43897–00
O-RING
|
1 | Ask on WhatsApp |
| 26 |
64E–4388E–01
BOLT ,SCREW (L:14MM)
|
3 | Ask on WhatsApp |
| 27 |
64E–43869–00
O-RING
|
6 | Ask on WhatsApp |
| 28 |
64E–4381G–00
|
1 | Ask on WhatsApp |
| 29 |
6E5–43858–00
|
1 | Ask on WhatsApp |
| 30 |
64E–4382G–00
|
1 | Ask on WhatsApp |
| 31 |
64E–4384N–00
|
1 | Ask on WhatsApp |
