F175AET

Section 11: INTAKE 3 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

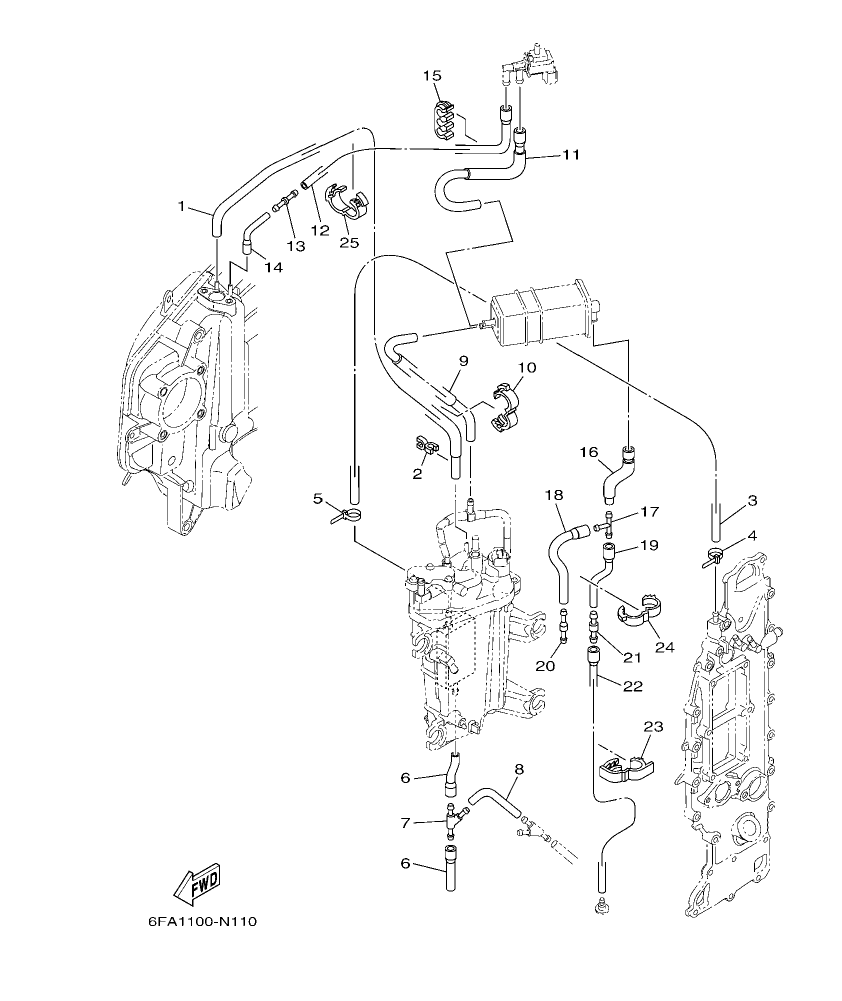

F175AET – section 11 INTAKE 3 parts diagram

Diagram for section 11: INTAKE 3.

Ref Part No. Qty Buy
1
6DA–13532–00
HOSE, VACUUM SENSING 3
 1 Ask on WhatsApp
2
90464–07M41
CLAMP
 1 Ask on WhatsApp
3
90445–09120
HOSE (L600)
 1 Ask on WhatsApp
4
90465–11M10
CLAMP
 1 Ask on WhatsApp
5
90465–11M10
CLAMP
 1 Ask on WhatsApp
6
6DA–12576–00
HOSE 1
 2 Ask on WhatsApp
7
6CE–24377–00
PIPE, JOINT 2
 1 Ask on WhatsApp
8
90445–10056
HOSE (L85)
 1 Ask on WhatsApp
9
6DA–1475A–00
PIPE 1
 1 Ask on WhatsApp
10
90464–16001
CLAMP
 1 Ask on WhatsApp
11
6DA–1475F–00
PIPE 3
 1 Ask on WhatsApp
12
6DA–2416A–00
HOSE
 1 Ask on WhatsApp
13
6CB–14989–00
ORIFICE, AIR VENT
 1 Ask on WhatsApp
14
6DA–1475G–00
PIPE 4
 1 Ask on WhatsApp
15
90464–10011
CLAMP
 1 Ask on WhatsApp
16
6DA–13545–00
HOSE 1
 1 Ask on WhatsApp
17
688–24378–00
PIPE, JOINT 3
 1 Ask on WhatsApp
18
68V–13546–10
HOSE 2
 1 Ask on WhatsApp
19
6FA–13548–00
HOSE, AIR 4
 1 Ask on WhatsApp
20
6E5–21744–00
BREATHER
 1 Ask on WhatsApp
21
63D–21744–00
BREATHER
 1 Ask on WhatsApp
22
6FA–13547–00
HOSE 3
 1 Ask on WhatsApp
23
90464–18004
CLAMP
 1 Ask on WhatsApp
24
90464–16001
CLAMP
 1 Ask on WhatsApp
25
90464–16001
CLAMP
 1 Ask on WhatsApp
