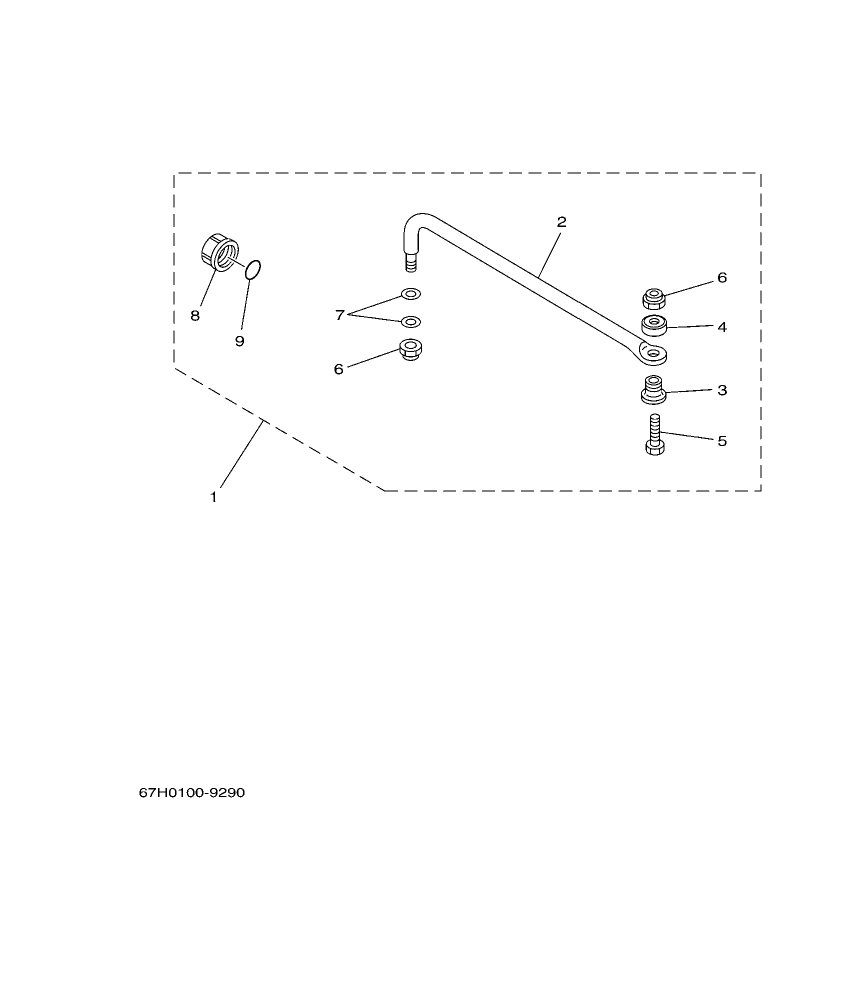

Diagram for section 36: STEERING GUIDE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6E5–61350–02
STEERING GUIDE ATTACHMENT KIT
|
1 | Ask on WhatsApp |
| 2 |
6E5–61351–01
.ROD, STEERING LINK
|
1 | Ask on WhatsApp |
| 3 |
90387–10M61
.COLLAR
|
1 | Ask on WhatsApp |
| 4 |
90560–12M01
.SPACER
|
1 | Ask on WhatsApp |
| 5 |
6E5–61355–00
.BOLT
|
1 | Ask on WhatsApp |
| 6 |
90185–09M01
.NUT, SELF-LOCKING
|
2 | Ask on WhatsApp |
| 7 |
90201–10M20
.WASHER, PLATE
|
2 | Ask on WhatsApp |
| 8 |
6E5–43145–01
.CAP, CLAMP BRACKET
|
1 | Ask on WhatsApp |
| 9 |
93210–16275
.O-RING
|
1 | Ask on WhatsApp |
