F175AET
Section 17: ELECTRICAL 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

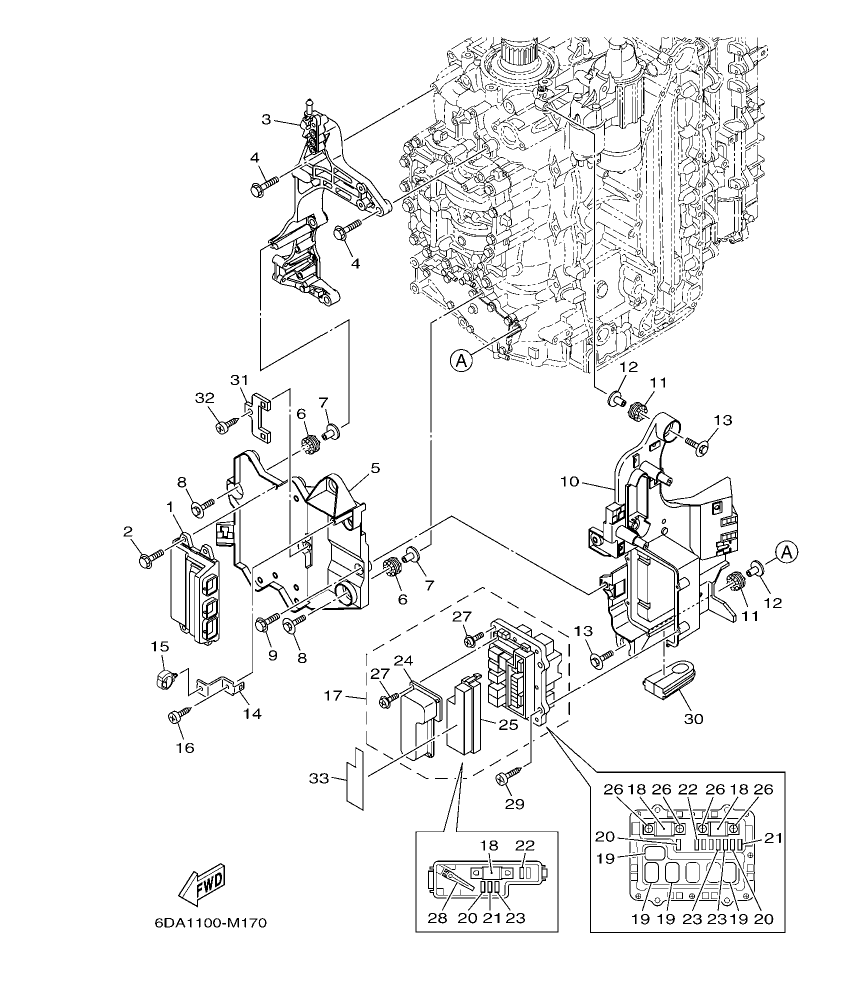

Diagram for section 17: ELECTRICAL 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6FA–8591A–00
ENGINE CONTROL UNIT ASSY
|
1 | Ask on WhatsApp |
| 2 |
95895–06020
BOLT, FLANGE
|
4 | Ask on WhatsApp |
| 3 |
6DA–85991–00
BRACKET, UNIT
|
1 | Ask on WhatsApp |
| 4 |
95875–08035
BOLT, FLANGE
|
4 | Ask on WhatsApp |
| 5 |
6DA–81948–00
BRACKET
|
1 | Ask on WhatsApp |
| 6 |
68F–85516–01
SPACER
|
3 | Ask on WhatsApp |
| 7 |
90387–06176
COLLAR
|
3 | Ask on WhatsApp |
| 8 |
68F–85119–00
BOLT
|
3 | Ask on WhatsApp |
| 9 |
95895–06016
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 10 |
6DA–81952–00
HOLDER, RELAY
|
1 | Ask on WhatsApp |
| 11 |
68F–85516–01
SPACER
|
3 | Ask on WhatsApp |
| 12 |
90387–06176
COLLAR
|
3 | Ask on WhatsApp |
| 13 |
68F–85119–00
BOLT
|
3 | Ask on WhatsApp |
| 14 |
6DA–85548–00
HOLDER
|
1 | Ask on WhatsApp |
| 15 |
90464–20181
CLAMP
|
1 | Ask on WhatsApp |
| 16 |
97780–60620
SCREW, TAPPING
|
1 | Ask on WhatsApp |
| 17 |
6DA–82170–00
FUSE BOX ASSY
|
1 | Ask on WhatsApp |
| 18 |
6P2–82151–00
.FUSE (60A)
|
3 | Ask on WhatsApp |
| 19 |
68F–8195A–00
.RELAY ASSY
|
4 | Ask on WhatsApp |
| 20 |
67F–82151–40
.FUSE (10A)
|
3 | Ask on WhatsApp |
| 21 |
67F–82151–50
.FUSE (15A)
|
2 | Ask on WhatsApp |
| 22 |
67F–82151–00
.FUSE (20A)
|
2 | Ask on WhatsApp |
| 23 |
67F–82151–10
.FUSE (30A)
|
3 | Ask on WhatsApp |
| 24 |
6CB–81639–00
.COVER
|
1 | Ask on WhatsApp |
| 25 |
6CB–85544–00
.CASE
|
1 | Ask on WhatsApp |
| 26 |
68F–82846–00
.SCREW, PAN HEAD (M5)
|
4 | Ask on WhatsApp |
| 27 |
6P2–82113–00
.SCREW
|
13 | Ask on WhatsApp |
| 28 |
67F–2812A–00
.PULLER, FUSE
|
1 | Ask on WhatsApp |
| 29 |
97780–50620
SCREW, TAPPING
|
4 | Ask on WhatsApp |
| 30 |
6DA–81336–00
GROMMET
|
1 | Ask on WhatsApp |
| 31 |
6C5–8257V–00
PLATE, CONNECTOR
|
1 | Ask on WhatsApp |
| 32 |
97780–60620
SCREW, TAPPING
|
1 | Ask on WhatsApp |
| 33 |
6DA–81919–00
GRAPHIC, REGULATOR
|
1 | Ask on WhatsApp |
