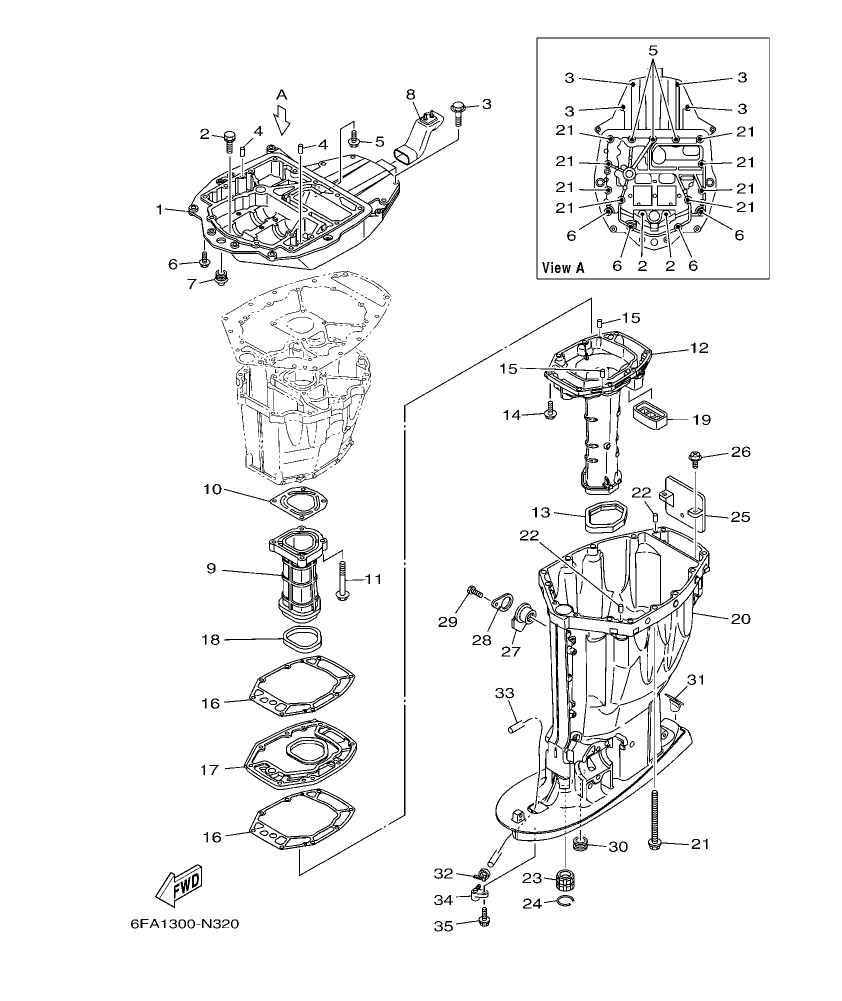

Diagram for section 32: UPPER CASING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
63P–41137–04–CA
GUIDE, EXHAUST
|
1 | Ask on WhatsApp |
| 2 |
90119–08102
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 3 |
97575–10545
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 4 |
93608–16M16
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 5 |
90119–08M58
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 6 |
97575–10535
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 7 |
6E5–42724–00
GROMMET
|
1 | Ask on WhatsApp |
| 8 |
6DA–42769–00
SEAL, RUBBER
|
1 | Ask on WhatsApp |
| 9 |
63P–41131–01–9S
MANIFOLD, EXT. 1
|
1 | Ask on WhatsApp |
| 10 |
63P–41133–A0
GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 11 |
97575–08560
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 12 |
6DA–14711–00–9S
MUFFLER 1
|
1 | Ask on WhatsApp |
| 12 |
6DA–14711–10–9S
MUFFLER 1
|
1 | Ask on WhatsApp |
| 13 |
69J–45123–00
GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 14 |
97575–08535
BOLT, WITH WASHER
|
8 | Ask on WhatsApp |
| 15 |
93606–19M23
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 16 |
63P–41134–A1
GASKET, EXHAUST MANIFOLD
|
2 | Ask on WhatsApp |
| 17 |
63P–45181–01–9S
PLATE
|
1 | Ask on WhatsApp |
| 18 |
63P–41138–00
SEAL, EXT. 1
|
1 | Ask on WhatsApp |
| 19 |
69J–45127–00
SEAL
|
1 | Ask on WhatsApp |
| 20 |
6DA–45111–00–8D
CASING, UPPER
|
1 | Ask on WhatsApp |
| 20 |
6DA–45111–10–8D
CASING, UPPER
|
1 | Ask on WhatsApp |
| 21 |
90119–10007
BOLT, WITH WASHER
|
8 | Ask on WhatsApp |
| 22 |
93608–16M16
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 23 |
6E5–45318–00
BUSHING, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 24 |
93420–36M01
CIRCLIP
|
1 | Ask on WhatsApp |
| 25 |
69J–14624–01
COVER, EXHAUST
|
1 | Ask on WhatsApp |
| 26 |
97980–06216
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 27 |
6BB–15316–00
DAMPER 1
|
1 | Ask on WhatsApp |
| 28 |
6BB–45152–01
COVER, UPPER CASING 2
|
1 | Ask on WhatsApp |
| 29 |
97095–06012
BOLT
|
1 | Ask on WhatsApp |
| 30 |
6E5–44366–00
DAMPER, WATER SEAL 2
|
1 | Ask on WhatsApp |
| 31 |
6C5–45155–00
CAP
|
1 | Ask on WhatsApp |
| 31 |
6DA–45155–00
CAP
|
1 | Ask on WhatsApp |
| 32 |
90465–11M10
CLAMP
|
1 | Ask on WhatsApp |
| 33 |
90445–07044
HOSE (L1800)
|
1 | Ask on WhatsApp |
| 33 |
90445–07045
HOSE (L1680)
|
1 | Ask on WhatsApp |
| 34 |
63P–45379–00
NIPPLE, HOSE
|
1 | Ask on WhatsApp |
| 35 |
90119–06M18
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
