F175AET
Section 12: FUEL INJECTION PUMP 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

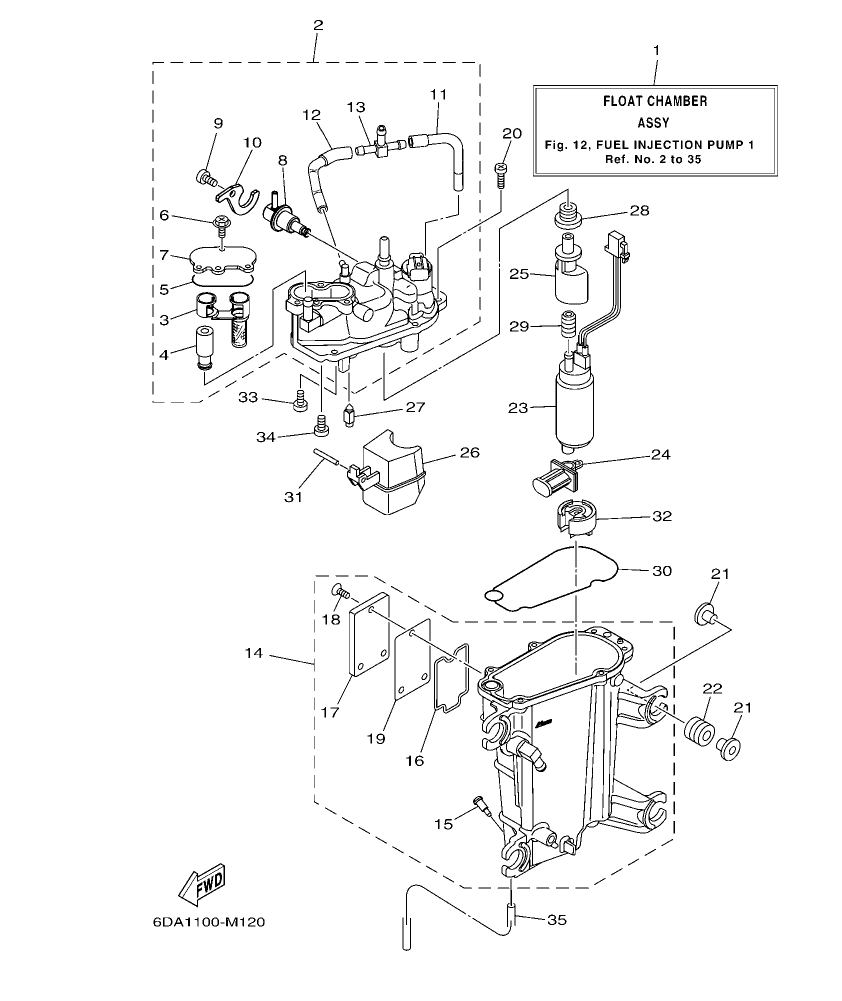

Diagram for section 12: FUEL INJECTION PUMP 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6DA–14180–00
FLOAT CHAMBER ASSY
|
1 | Ask on WhatsApp |
| 2 |
6DA–14182–00
COVER, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 3 |
6CB–24501–01
.FILTER, FUEL
|
1 | Ask on WhatsApp |
| 4 |
6CB–24460–00
.RELIEF VALVE ASSY
|
1 | Ask on WhatsApp |
| 5 |
6CB–13016–00
.O-RING
|
1 | Ask on WhatsApp |
| 6 |
6CB–14216–00
.SCREW
|
3 | Ask on WhatsApp |
| 7 |
6CB–24217–00
.COVER
|
1 | Ask on WhatsApp |
| 8 |
6CB–13906–01
.REGULATOR, PRESSURE
|
1 | Ask on WhatsApp |
| 9 |
6CB–14564–00
.SCREW
|
1 | Ask on WhatsApp |
| 10 |
6DA–14146–00
.PLATE
|
1 | Ask on WhatsApp |
| 11 |
6DA–13892–00
.HOSE, AIR 2
|
1 | Ask on WhatsApp |
| 12 |
6DA–13893–00
.HOSE, AIR 3
|
1 | Ask on WhatsApp |
| 13 |
69J–24379–00
.PIPE, JOINT 4
|
1 | Ask on WhatsApp |
| 14 |
6DA–14181–00
BODY, FLOAT CHAMBER 1
|
1 | Ask on WhatsApp |
| 15 |
6P2–14191–00
.PLUG, DRAIN
|
1 | Ask on WhatsApp |
| 16 |
6CB–14239–00
.SEAL
|
1 | Ask on WhatsApp |
| 17 |
6CB–24452–10
.COVER
|
1 | Ask on WhatsApp |
| 18 |
6CB–14429–01
.SCREW
|
3 | Ask on WhatsApp |
| 19 |
6CB–24482–00
.GASKET 1
|
1 | Ask on WhatsApp |
| 20 |
63P–14567–00
SCREW
|
6 | Ask on WhatsApp |
| 21 |
69J–13716–00
COLLAR
|
8 | Ask on WhatsApp |
| 22 |
6CB–13593–00
DAMPER
|
4 | Ask on WhatsApp |
| 23 |
6P2–13907–20
FUEL PUMP COMP.
|
1 | Ask on WhatsApp |
| 24 |
63P–13915–00
FILTER
|
1 | Ask on WhatsApp |
| 25 |
6AW–13132–00
JOINT
|
1 | Ask on WhatsApp |
| 26 |
6CB–14985–00
FLOAT
|
1 | Ask on WhatsApp |
| 27 |
6CB–14546–00
VALVE, NEEDLE
|
1 | Ask on WhatsApp |
| 28 |
6CB–1447B–00
BUSH 1
|
1 | Ask on WhatsApp |
| 29 |
6AW–13781–00
DAMPER, PUMP
|
1 | Ask on WhatsApp |
| 30 |
6CB–14984–00
GASKET, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 31 |
6P2–14386–00
PIN, FLOAT
|
1 | Ask on WhatsApp |
| 32 |
6AW–13784–00
COVER, PUMP
|
1 | Ask on WhatsApp |
| 33 |
4SV–24453–00
SCREW
|
1 | Ask on WhatsApp |
| 34 |
98507–04008
SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 35 |
6P2–14149–00
PIPE
|
1 | Ask on WhatsApp |
