F175AET
Section 10: INTAKE 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

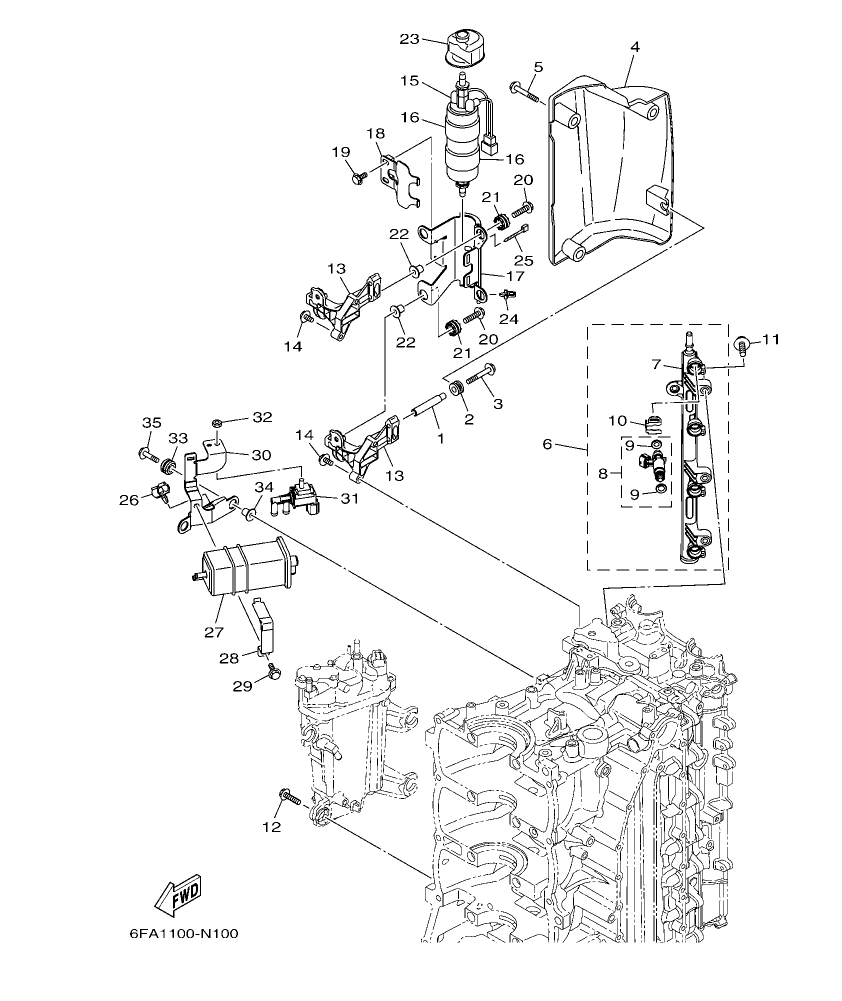

Diagram for section 10: INTAKE 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
90387–06283
COLLAR
|
1 | Ask on WhatsApp |
| 2 |
90480–12314
GROMMET
|
1 | Ask on WhatsApp |
| 3 |
90105–06054
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 4 |
6DA–13564–00
COVER, MANIFOLD
|
1 | Ask on WhatsApp |
| 5 |
95875–06020
BOLT, FLANGE
|
3 | Ask on WhatsApp |
| 6 |
6DA–13160–00
DELIVERY PIPE ASSY 1
|
1 | Ask on WhatsApp |
| 7 |
6DA–13161–00
.PIPE, DELIVERY 1
|
1 | Ask on WhatsApp |
| 8 |
6DA–13761–00
.INJECTOR
|
4 | Ask on WhatsApp |
| 9 |
6AW–1410B–00
..PACKING KIT
|
1 | Ask on WhatsApp |
| 10 |
6AW–13577–10
.CLIP
|
4 | Ask on WhatsApp |
| 11 |
90105–06M08
BOLT, FLANGE
|
3 | Ask on WhatsApp |
| 12 |
90119–06M24
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 13 |
6DA–24425–00
BRACKET, FUEL PUMP 1
|
2 | Ask on WhatsApp |
| 14 |
90105–06M08
BOLT, FLANGE
|
4 | Ask on WhatsApp |
| 15 |
6CB–24410–00
FUEL PUMP ASSY
|
1 | Ask on WhatsApp |
| 16 |
6DA–24492–00
BUSH, FUEL PUMP
|
2 | Ask on WhatsApp |
| 17 |
6DA–24491–00
BRACKET, FUEL PUMP
|
1 | Ask on WhatsApp |
| 18 |
6DA–24426–00
BRACKET, FUEL PUMP 2
|
1 | Ask on WhatsApp |
| 19 |
95895–06012
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 20 |
90119–06M17
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 21 |
60V–85516–00
SPACER
|
4 | Ask on WhatsApp |
| 22 |
90387–06289
COLLAR
|
4 | Ask on WhatsApp |
| 23 |
6DA–24462–00
CAP, BLIND
|
1 | Ask on WhatsApp |
| 24 |
90464–06001
CLAMP
|
1 | Ask on WhatsApp |
| 25 |
90465–11M10
CLAMP
|
1 | Ask on WhatsApp |
| 26 |
90464–09130
CLAMP
|
1 | Ask on WhatsApp |
| 27 |
6P2–24170–00
CANISTER ASSY
|
1 | Ask on WhatsApp |
| 28 |
63P–2419A–01
HOLDER
|
1 | Ask on WhatsApp |
| 29 |
95895–06016
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 30 |
6DA–2134X–00
BRACKET, CANISTER
|
1 | Ask on WhatsApp |
| 31 |
6C5–86120–00
SOLENOID VALVE ASSY
|
1 | Ask on WhatsApp |
| 32 |
95380–06600
NUT, HEXAGON
|
1 | Ask on WhatsApp |
| 33 |
90480–14031
GROMMET
|
2 | Ask on WhatsApp |
| 34 |
90387–06289
COLLAR
|
2 | Ask on WhatsApp |
| 35 |
90119–06M17
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
