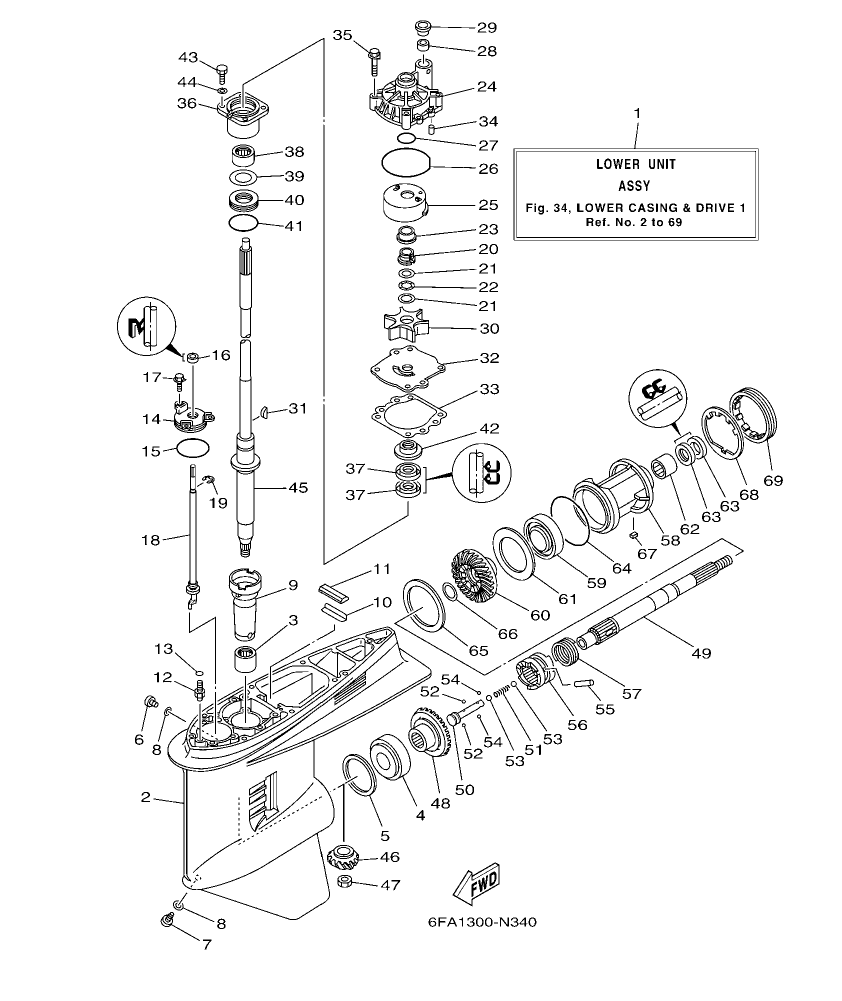

Diagram for section 34: LOWER CASING & DRIVE 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6DA–45300–00–8D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 1 |
6DA–45300–10–8D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 2 |
6J9–45301–07–8D
CASING, LOWER
|
1 | Ask on WhatsApp |
| 3 |
93311–928U5
BEARING
|
1 | Ask on WhatsApp |
| 4 |
93332–000V3
BEARING
|
1 | Ask on WhatsApp |
| 5 |
6G5–45567–01
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 5 |
6G5–45567–10
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 5 |
6G5–45567–20
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 5 |
6G5–45567–30
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 5 |
6G5–45567–40
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 5 |
6G5–45567–50
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 5 |
6G5–45567–60
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 6 |
90340–08002
PLUG, STRAIGHT SCREW
|
1 | Ask on WhatsApp |
| 7 |
688–45341–10
PLUG, DRAIN
|
1 | Ask on WhatsApp |
| 8 |
90430–08020
GASKET
|
2 | Ask on WhatsApp |
| 9 |
6G5–45536–01
SLEEVE, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 10 |
663–45376–00
GUIDE, SEAL DAMPER
|
1 | Ask on WhatsApp |
| 11 |
688–45375–00
DAMPER, SEAL
|
1 | Ask on WhatsApp |
| 12 |
63P–45378–00
NIPPLE, HOSE
|
1 | Ask on WhatsApp |
| 13 |
93210–07003
O-RING
|
1 | Ask on WhatsApp |
| 14 |
6E5–45321–00
PLATE
|
1 | Ask on WhatsApp |
| 15 |
93210–58144
O-RING
|
1 | Ask on WhatsApp |
| 16 |
93106–09014
OIL SEAL
|
1 | Ask on WhatsApp |
| 17 |
90119–06M10
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 18 |
63P–44150–01
SHIFT CAM ASSY
|
1 | Ask on WhatsApp |
| 19 |
99001–08600
CIRCLIP
|
1 | Ask on WhatsApp |
| 20 |
61A–45538–00
SPACER 1
|
1 | Ask on WhatsApp |
| 21 |
90201–22M01
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 22 |
90206–22M19
WASHER, WAVE
|
1 | Ask on WhatsApp |
| 23 |
61A–45527–00
COLLAR, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 24 |
61A–44311–01
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 25 |
61A–44322–02
INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 26 |
93210–86M38
O-RING
|
1 | Ask on WhatsApp |
| 27 |
93210–37160
O-RING
|
1 | Ask on WhatsApp |
| 28 |
6E5–44365–00
DAMPER, WATER SEAL 1
|
1 | Ask on WhatsApp |
| 29 |
6E5–44312–00
COVER, WATER PUMP HOUSING
|
1 | Ask on WhatsApp |
| 30 |
6E5–44352–01
IMPELLER
|
1 | Ask on WhatsApp |
| 31 |
90280–04M05
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 32 |
6G5–44323–01
OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 33 |
6E5–44315–A0
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 34 |
93606–12019
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 35 |
90119–08M14
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 36 |
6E5–45331–00–9S
HOUSING, BEARING
|
1 | Ask on WhatsApp |
| 37 |
93101–28M16
OIL SEAL
|
2 | Ask on WhatsApp |
| 38 |
93317–330U2
BEARING
|
1 | Ask on WhatsApp |
| 39 |
6E5–45587–01
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 39 |
6E5–45587–10
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 39 |
6E5–45587–20
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 39 |
6E5–45587–30
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 39 |
6E5–45587–40
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 39 |
6E5–45587–50
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 39 |
6E5–45587–60
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 40 |
93341–930V2
BEARING
|
1 | Ask on WhatsApp |
| 41 |
93210–55M14
O-RING
|
1 | Ask on WhatsApp |
| 42 |
6E5–45344–00
COVER, OIL SEAL
|
1 | Ask on WhatsApp |
| 43 |
97095–08025
BOLT
|
4 | Ask on WhatsApp |
| 44 |
92995–08600
WASHER
|
4 | Ask on WhatsApp |
| 45 |
63P–45501–01
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 45 |
63P–45501–11
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 46 |
6DA–45551–00
PINION (14T)
|
1 | Ask on WhatsApp |
| 47 |
90170–16M01
NUT
|
1 | Ask on WhatsApp |
| 48 |
6DA–45560–00
GEAR 1 (26T)
|
1 | Ask on WhatsApp |
| 49 |
6J9–45611–01
SHAFT, PROPELLER
|
1 | Ask on WhatsApp |
| 50 |
6E5–45634–02
SLIDE, SHIFT
|
1 | Ask on WhatsApp |
| 51 |
90501–16M37
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 52 |
93507–32009
BALL
|
2 | Ask on WhatsApp |
| 53 |
93511–32017
BALL
|
2 | Ask on WhatsApp |
| 54 |
93503–16003
BALL
|
2 | Ask on WhatsApp |
| 55 |
90250–08M07
PIN, STRAIGHT
|
1 | Ask on WhatsApp |
| 56 |
6DA–45631–00
CLUTCH, DOG
|
1 | Ask on WhatsApp |
| 57 |
6E5–45633–01
RING, CROSS PIN
|
1 | Ask on WhatsApp |
| 58 |
6J9–45332–00–CA
HOUSING, BEARING
|
1 | Ask on WhatsApp |
| 59 |
93306–209U0
BEARING
|
1 | Ask on WhatsApp |
| 60 |
6DA–45571–00
GEAR 2 (26T)
|
1 | Ask on WhatsApp |
| 61 |
6G5–45576–10
WASHER, THRUST 2
|
1 | Ask on WhatsApp |
| 62 |
93315–43061
BEARING
|
1 | Ask on WhatsApp |
| 63 |
93101–30M17
OIL SEAL
|
2 | Ask on WhatsApp |
| 64 |
93210–97M55
O-RING
|
1 | Ask on WhatsApp |
| 65 |
6G5–45577–02
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 65 |
6G5–45577–10
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 65 |
6G5–45577–20
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 65 |
6G5–45577–30
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 65 |
6G5–45577–40
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 65 |
6G5–45577–50
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 65 |
6G5–45577–60
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 66 |
90201–30M92
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 67 |
90282–04M00
KEY, STRAIGHT
|
1 | Ask on WhatsApp |
| 68 |
6G5–45383–01
WASHER, CLAW
|
1 | Ask on WhatsApp |
| 69 |
6G5–45384–02
NUT
|
1 | Ask on WhatsApp |
