F175AET

Section 1: SCHEDULED SERVICE PARTS (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

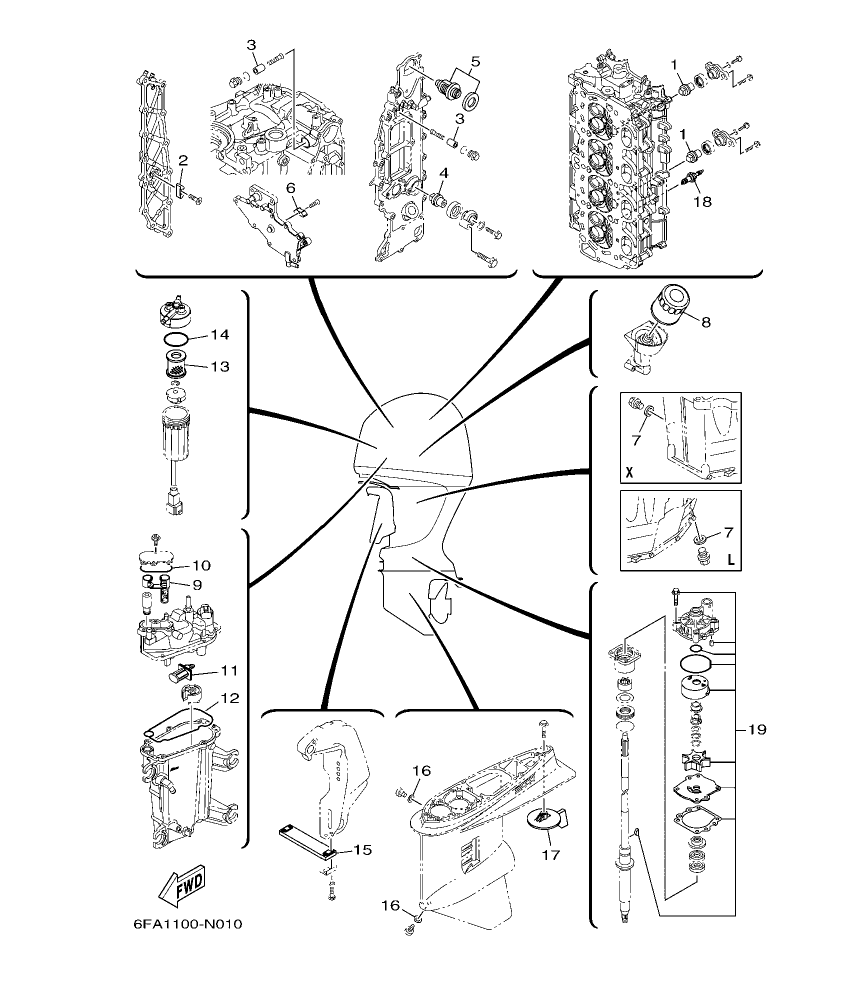

F175AET – section 1 SCHEDULED SERVICE PARTS parts diagram

Diagram for section 1: SCHEDULED SERVICE PARTS.

Ref Part No. Qty Buy
1
67F–11325–01
ANODE
 2 Ask on WhatsApp
2
6E5–11325–00
ANODE
 1 Ask on WhatsApp
3
68T–11325–00
ANODE
 2 Ask on WhatsApp
4
67F–11325–01
ANODE
 1 Ask on WhatsApp
5
6DA–12411–00
THERMOSTAT
 1 Ask on WhatsApp
6
6E5–11325–00
ANODE
 1 Ask on WhatsApp
7
90430–14M09
GASKET
 1 Ask on WhatsApp
8
69J–13440–03
ELEMENT ASSY, OIL CLEANER
 1 Ask on WhatsApp
9
6CB–24501–01
FILTER, FUEL
 1 Ask on WhatsApp
10
6CB–13016–00
O-RING
 1 Ask on WhatsApp
11
63P–13915–00
FILTER
 1 Ask on WhatsApp
12
6CB–14984–00
GASKET, FLOAT CHAMBER
 1 Ask on WhatsApp
13
6P3–24563–01
ELEMENT, FILTER
 1 Ask on WhatsApp
14
6P3–24564–00
GASKET
 1 Ask on WhatsApp
15
6AW–45251–00
ANODE
 1 Ask on WhatsApp
16
90430–08020
GASKET
 2 Ask on WhatsApp
17
6J9–45371–01
TAB-TRIM
 1 Ask on WhatsApp
18
94702–00400
PLUG, SPARK (NGK LFR6A-11)
 4 Ask on WhatsApp
19
61A–W0078–A3
WATER PUMP REPAIR KIT
 1 Ask on WhatsApp
