F175AET

Section 5: CYLINDER & CRANKCASE 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

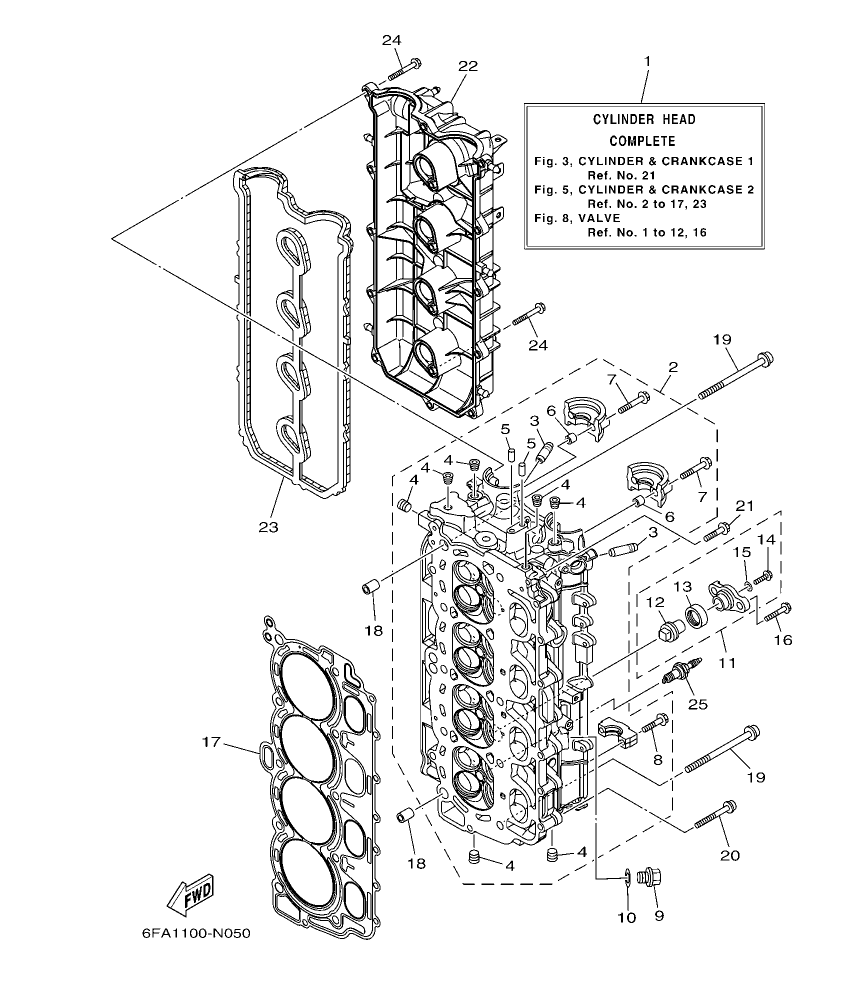

F175AET – section 5 CYLINDER & CRANKCASE 2 parts diagram

Diagram for section 5: CYLINDER & CRANKCASE 2.

Ref Part No. Qty Buy
1
6FA–W009A–00–9S
CYLINDER HEAD COMPLETE
 1 Ask on WhatsApp
2
6FA–11110–00–9S
CYLINDER HEAD ASSY
 1 Ask on WhatsApp
3
6DA–11133–10
.GUIDE, VALVE 1
 16 Ask on WhatsApp
4
90344–51019
.PLUG, TAPER SCREW
 7 Ask on WhatsApp
5
93606–12019
.PIN, DOWEL
 2 Ask on WhatsApp
6
91809–08006
.PIN, DOWEL
 4 Ask on WhatsApp
7
90119–07001
.BOLT, WITH WASHER
 4 Ask on WhatsApp
8
90119–07234
.BOLT, WITH WASHER
 16 Ask on WhatsApp
9
90340–14M06
PLUG, STRAIGHT SCREW
 1 Ask on WhatsApp
10
90430–14115
GASKET
 1 Ask on WhatsApp
11
67F–11301–00
ANODE COVER ASSY
 2 Ask on WhatsApp
12
67F–11325–01
.ANODE
 1 Ask on WhatsApp
13
67F–11328–00
.GROMMET, ANODE
 1 Ask on WhatsApp
14
90105–06M07
.BOLT, FLANGE
 1 Ask on WhatsApp
15
90430–06M03
.GASKET
 1 Ask on WhatsApp
16
95885–08025
BOLT, FLANGE
 4 Ask on WhatsApp
17
6DA–11181–00
GASKET, CYLINDER HEAD 1
 1 Ask on WhatsApp
18
90387–11005
COLLAR
 2 Ask on WhatsApp
19
90155–11002
SCREW, FLAT FILLISTER
 10 Ask on WhatsApp
20
90105–08175
BOLT, FLANGE
 8 Ask on WhatsApp
21
90105–06151
BOLT, FLANGE
 1 Ask on WhatsApp
22
6DA–11191–00
COVER, CYLINDER HEAD 1
 1 Ask on WhatsApp
23
6DA–11193–00
GASKET, HEAD COVER 1
 1 Ask on WhatsApp
24
95895–06030
BOLT, FLANGE
 16 Ask on WhatsApp
25
94702–00400
PLUG, SPARK (NGK LFR6A-11)
 4 Ask on WhatsApp
