F175AET

Section 8: VALVE (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

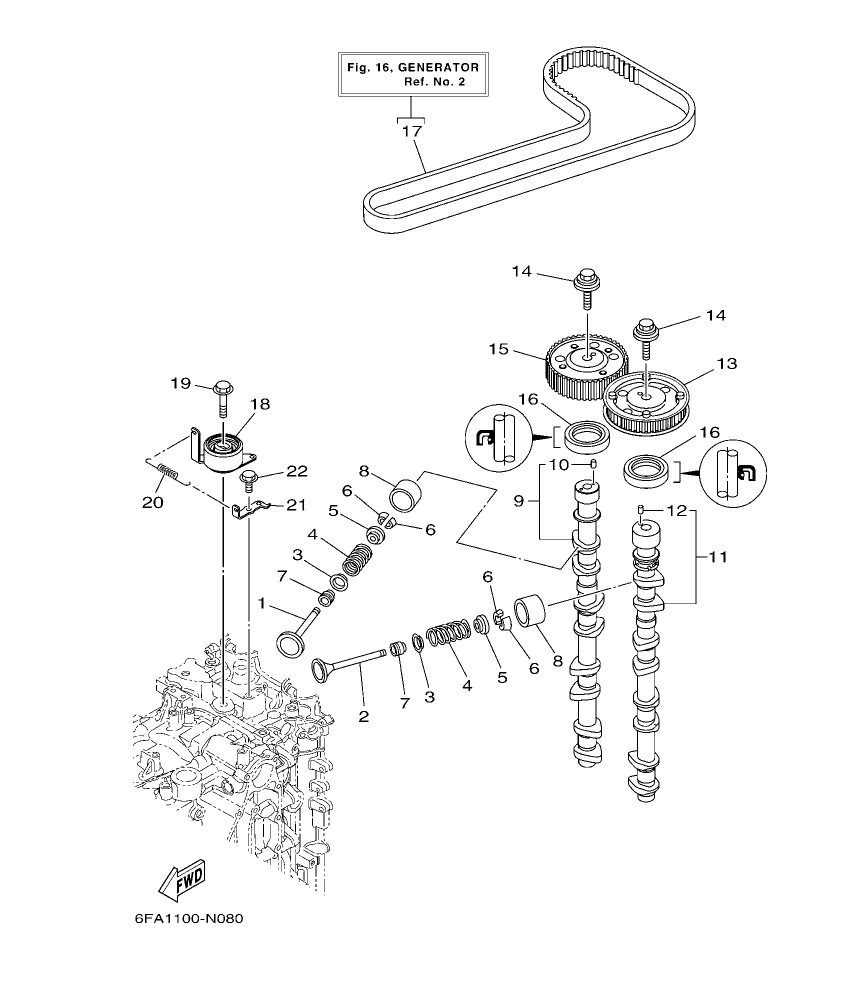

F175AET – section 8 VALVE parts diagram

Diagram for section 8: VALVE.

Ref Part No. Qty Buy
1
6CB–12111–00
VALVE, INTAKE
 8 Ask on WhatsApp
2
6DA–12121–00
VALVE, EXHAUST
 8 Ask on WhatsApp
3
K0F–A3743–00
SEAT, VALVE SPRING
 16 Ask on WhatsApp
4
6CB–12113–00
SPRING, VALVE INNER
 16 Ask on WhatsApp
5
K0F–A3741–00
RETAINER, VALVE SPRING
 16 Ask on WhatsApp
6
K0F–A3742–00
LOCK, VALVE SPRING RETAINER
 32 Ask on WhatsApp
7
51Y–12119–00
SEAL, VALVE STEM
 16 Ask on WhatsApp
8
K0F–A3751–00
LIFTER, VALVE (3.000)
 16 Ask on WhatsApp
8
K0F–A3751–10
LIFTER, VALVE (3.025)
 16 Ask on WhatsApp
8
K0F–A3751–20
LIFTER, VALVE (3.050)
 16 Ask on WhatsApp
8
K0F–A3751–30
LIFTER, VALVE (3.075)
 16 Ask on WhatsApp
8
K0F–A3751–40
LIFTER, VALVE (3.100)
 16 Ask on WhatsApp
8
K0F–A3751–50
LIFTER, VALVE (3.122)
 16 Ask on WhatsApp
8
K0F–A3751–60
LIFTER, VALVE (3.142)
 16 Ask on WhatsApp
8
K0F–A3751–70
LIFTER, VALVE (3.162)
 16 Ask on WhatsApp
8
K0F–A3751–80
LIFTER, VALVE (3.182)
 16 Ask on WhatsApp
8
K0F–A3751–90
LIFTER, VALVE (3.202)
 16 Ask on WhatsApp
8
K0F–A3751–A0
LIFTER, VALVE (3.222)
 16 Ask on WhatsApp
8
K0F–A3751–B0
LIFTER, VALVE (3.242)
 16 Ask on WhatsApp
8
K0F–A3751–C0
LIFTER, VALVE (3.262)
 16 Ask on WhatsApp
8
K0F–A3751–D0
LIFTER, VALVE (3.282)
 16 Ask on WhatsApp
8
K0F–A3751–E0
LIFTER, VALVE (3.302)
 16 Ask on WhatsApp
8
K0F–A3751–F0
LIFTER, VALVE (3.322)
 16 Ask on WhatsApp
8
K0F–A3751–G0
LIFTER, VALVE (3.342)
 16 Ask on WhatsApp
8
K0F–A3751–H0
LIFTER, VALVE (3.362)
 16 Ask on WhatsApp
8
K0F–A3751–J0
LIFTER, VALVE ((3.382)
 16 Ask on WhatsApp
8
K0F–A3751–K0
LIFTER, VALVE (3.402)
 16 Ask on WhatsApp
8
K0F–A3751–L0
LIFTER, VALVE (3.422)
 16 Ask on WhatsApp
8
K0F–A3751–M0
LIFTER, VALVE (3.442)
 16 Ask on WhatsApp
8
K0F–A3751–N0
LIFTER, VALVE (3.462)
 16 Ask on WhatsApp
8
K0F–A3751–P0
LIFTER, VALVE (3.482)
 16 Ask on WhatsApp
8
K0F–A3751–R0
LIFTER, VALVE (3.502)
 16 Ask on WhatsApp
8
K0F–A3751–S0
LIFTER, VALVE (3.522)
 16 Ask on WhatsApp
8
K0F–A3751–T0
LIFTER, VALVE (3.542)
 16 Ask on WhatsApp
8
K0F–A3753–00
LIFTER, VALVE (3.562)
 16 Ask on WhatsApp
8
K0F–A3753–10
LIFTER, VALVE (3.582)
 16 Ask on WhatsApp
8
K0F–A3753–20
LIFTER, VALVE (3.602)
 16 Ask on WhatsApp
8
K0F–A3753–30
LIFTER, VALVE (3.625)
 16 Ask on WhatsApp
8
K0F–A3753–40
LIFTER, VALVE (3.650)
 16 Ask on WhatsApp
8
K0F–A3753–50
LIFTER, VALVE (3.675)
 16 Ask on WhatsApp
8
K0F–A3753–60
LIFTER, VALVE (3.700)
 16 Ask on WhatsApp
8
K0F–A3753–70
LIFTER, VALVE (3.725)
 16 Ask on WhatsApp
9
6FA–12171–00
CAMSHAFT 1
 1 Ask on WhatsApp
10
93605–10108
.PIN, DOWEL
 1 Ask on WhatsApp
11
6DA–12181–00
CAMSHAFT 2
 1 Ask on WhatsApp
12
93605–10108
.PIN, DOWEL
 1 Ask on WhatsApp
13
6FA–115A0–00
DRIVEN GEAR ASSY
 1 Ask on WhatsApp
14
90119–10050
BOLT, WITH WASHER
 2 Ask on WhatsApp
15
6FA–11567–00
GEAR, DRIVEN 2
 1 Ask on WhatsApp
16
93102–38008
OIL SEAL
 2 Ask on WhatsApp
17
6DA–W4624–00
BELT (WITH ROTOR BOLTS)
 1 Ask on WhatsApp
18
6DA–11590–00
TENSIONER ASSY
 1 Ask on WhatsApp
19
90119–10M07
BOLT, WITH WASHER
 1 Ask on WhatsApp
20
90506–18025
SPRING, TENSION
 1 Ask on WhatsApp
21
6DA–11595–00
PLATE,VALVE
 1 Ask on WhatsApp
22
97575–06516
BOLT, WITH WASHER
 1 Ask on WhatsApp
