Section 31: POWER TRIM & TILT ASSY 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

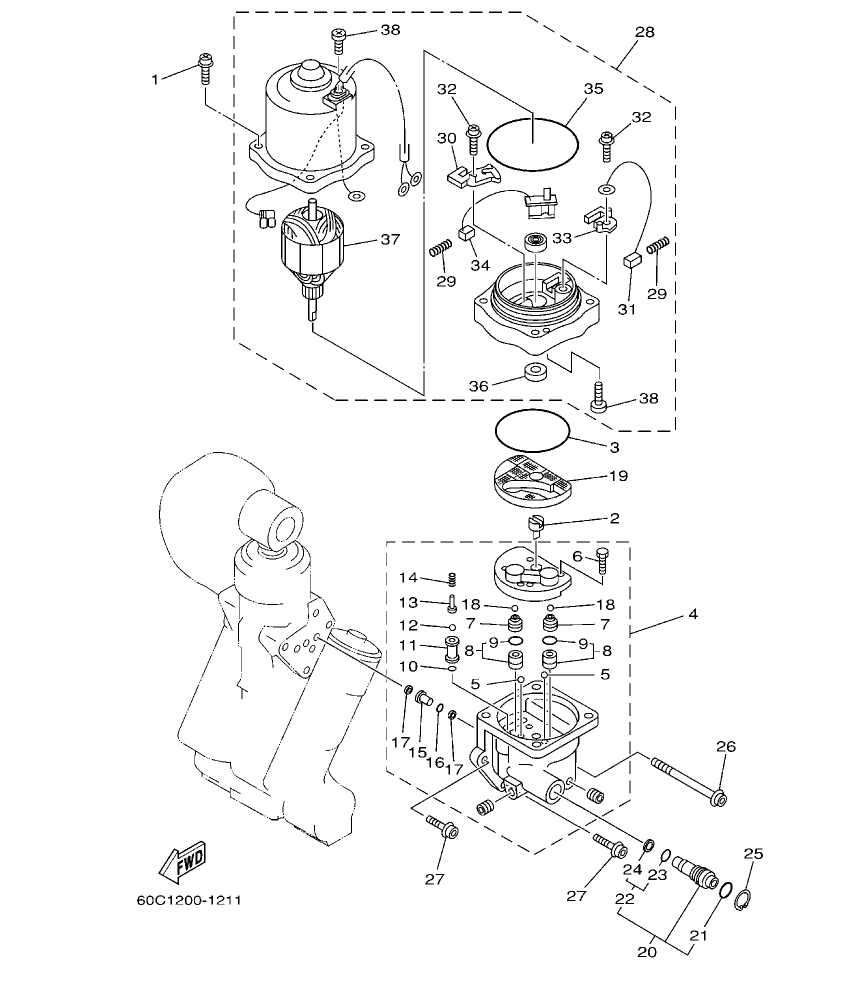

Diagram for section 31: POWER TRIM & TILT ASSY 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
64E–4388E–11
BOLT ,SCREW (L:34.7MM)
|
4 | Ask on WhatsApp |
| 2 |
64E–43831–00
CONNECTOR, SHAFT
|
1 | Ask on WhatsApp |
| 3 |
64E–43868–00
O-RING
|
1 | Ask on WhatsApp |
| 4 |
64E–43830–01
GEAR PUMP ASSY
|
1 | Ask on WhatsApp |
| 5 |
72X–43858–00
.BALL
|
2 | Ask on WhatsApp |
| 6 |
64E–43843–00
.SCREW, VALVE LOCK
|
4 | Ask on WhatsApp |
| 7 |
6AW–43841–00
.PISTON, SHUTTLE
|
2 | Ask on WhatsApp |
| 8 |
64E–43802–00
.VALVE SUB ASSY
|
2 | Ask on WhatsApp |
| 9 |
6E5–43896–00
..O-RING
|
1 | Ask on WhatsApp |
| 10 |
6G5–43863–00
.O-RING
|
1 | Ask on WhatsApp |
| 11 |
64E–43851–00
.SEAT, RELIEF VALVE
|
1 | Ask on WhatsApp |
| 12 |
64E–43858–00
.BALL
|
1 | Ask on WhatsApp |
| 13 |
64E–43859–00
.PIN, VALVE SUPPORT
|
1 | Ask on WhatsApp |
| 14 |
64E–43855–00
.SPRING, UP RELIEF
|
1 | Ask on WhatsApp |
| 15 |
64E–43850–00
.VALVE SUB ASSY
|
1 | Ask on WhatsApp |
| 16 |
64E–43865–00
.O-RING
|
1 | Ask on WhatsApp |
| 17 |
64E–43816–00
.FILTER 1
|
2 | Ask on WhatsApp |
| 18 |
6AW–43858–00
.BALL
|
2 | Ask on WhatsApp |
| 19 |
64E–43817–11
FILTER 2
|
1 | Ask on WhatsApp |
| 20 |
64E–43860–01
MANUAL VALVE SUB-ASSY
|
1 | Ask on WhatsApp |
| 21 |
72X–85075–L0
.O-RING
|
1 | Ask on WhatsApp |
| 22 |
64E–43827–00
.RING SET
|
1 | Ask on WhatsApp |
| 23 |
64E–4387A–00
..O-RING
|
1 | Ask on WhatsApp |
| 24 |
64E–43873–00
..RING, BACK UP
|
1 | Ask on WhatsApp |
| 25 |
6AW–43875–00
RING, SNAP
|
1 | Ask on WhatsApp |
| 26 |
64E–43879–11
SCREW, WITH WASHER
|
1 | Ask on WhatsApp |
| 27 |
64E–43879–01
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 28 |
67H–43880–04
MOTOR ASSY
|
1 | Ask on WhatsApp |
| 29 |
6H1–4386K–10
.SPRING, BRUSH
|
2 | Ask on WhatsApp |
| 30 |
64E–4380J–00
.HOLDER, BRUSH
|
1 | Ask on WhatsApp |
| 31 |
64E–43891–00
.BRUSH 1
|
1 | Ask on WhatsApp |
| 32 |
97607–04310
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 33 |
64E–4380F–00
.HOLDER, BRUSH 2
|
1 | Ask on WhatsApp |
| 34 |
64E–43892–00
.BREAKER COMP. (BRUSH 2)
|
1 | Ask on WhatsApp |
| 35 |
6G5–43865–01
.O-RING
|
1 | Ask on WhatsApp |
| 36 |
93102–08M43
.OIL SEAL
|
1 | Ask on WhatsApp |
| 37 |
64E–43805–01
.ARMATURE ASSY
|
1 | Ask on WhatsApp |
| 38 |
64E–43843–10
.SCREW, VALVE LOCK
|
3 | Ask on WhatsApp |
