F175AET

Section 13: FUEL INJECTION PUMP 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

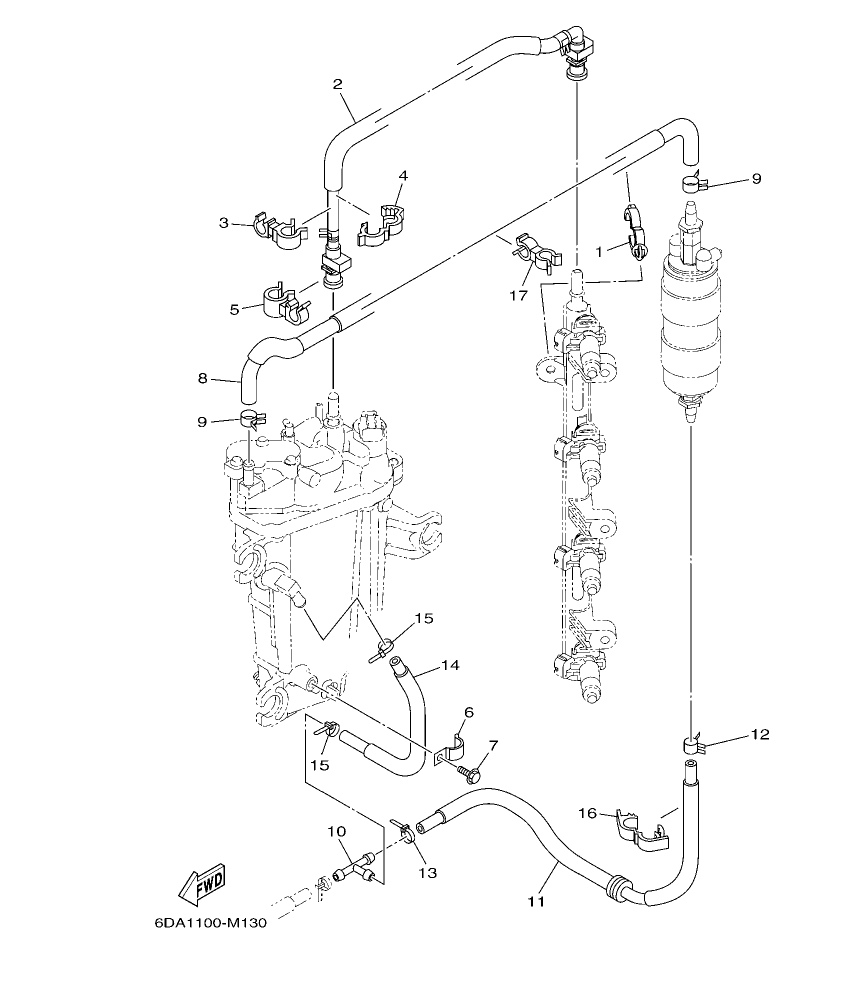

F175AET – section 13 FUEL INJECTION PUMP 2 parts diagram

Diagram for section 13: FUEL INJECTION PUMP 2.

Ref Part No. Qty Buy
1
90464–20181
CLAMP
 1 Ask on WhatsApp
2
6DA–24310–00
FUEL PIPE ASSY
 1 Ask on WhatsApp
3
90464–12010
CLAMP
 1 Ask on WhatsApp
4
90464–16003
CLAMP
 1 Ask on WhatsApp
5
90464–15007
CLAMP
 1 Ask on WhatsApp
6
90465–08M63
CLAMP
 1 Ask on WhatsApp
7
95895–06010
BOLT, FLANGE
 1 Ask on WhatsApp
8
6DA–24324–00
PIPE 13
 1 Ask on WhatsApp
9
90467–120A7
CLIP
 2 Ask on WhatsApp
10
6E5–24378–00
PIPE, JOINT 3
 1 Ask on WhatsApp
11
6DA–24317–10
PIPE 7
 1 Ask on WhatsApp
12
90467–120A7
CLIP
 1 Ask on WhatsApp
13
90465–11M10
CLAMP
 1 Ask on WhatsApp
14
6DA–24323–10
PIPE 12
 1 Ask on WhatsApp
15
90465–11M10
CLAMP
 2 Ask on WhatsApp
16
90464–18004
CLAMP
 1 Ask on WhatsApp
17
90464–13260
CLAMP
 1 Ask on WhatsApp
